Partiron

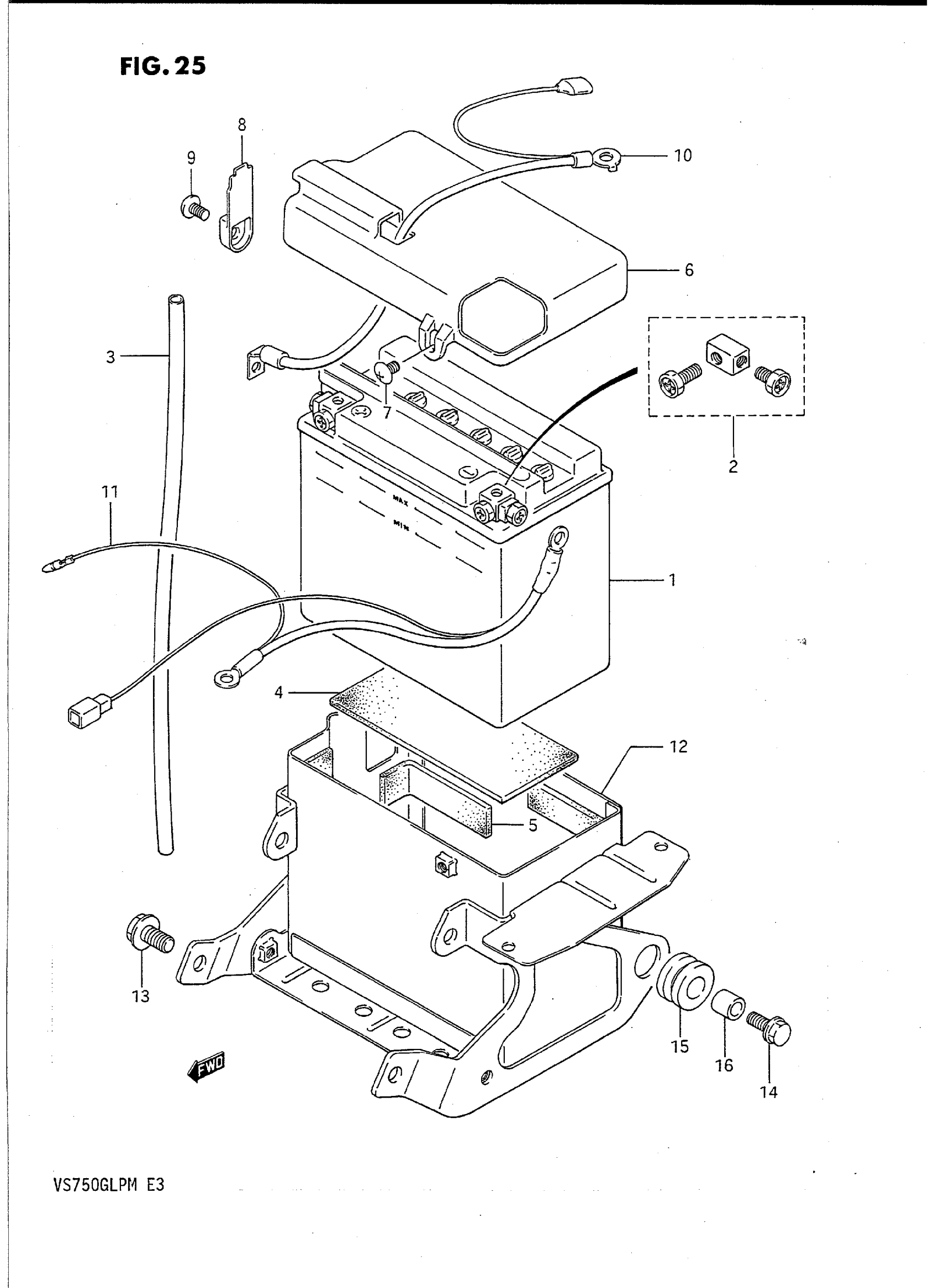

Suzuki VS750GLPM (1991) BATTERY Diagram

#

Description
Price

1

BATTERY (12V,16AH) | Includes Item(s) 2 This part replaces 33610-38A31.

33610-38A01

$179.12

2

BOLT SET, TERMINAL

33626-38A01

$18.96

3

HOSE,BATTERY EX | L:400->L:200 This part replaces 33680-17300.

33680-16A11

$6.78

4

CUSHION | CUT AS REQUIRED PROFILE

33651-37000

$4.48

5

PROTECTOR (80X80X2) This part replaces 33652-38A10.

33652-07D00

$5.64

6

COVER, BATTERY UPPER

33658-38A30

$12.57

7

SCREW This part replaces 02142-05084.

02142-0508A

$1.49

8

COVER, BATTERY TERMINAL

33658-38A40

$2.28

9

SCREW This part replaces 02142-05084.

02142-0508A

$1.49

10

LEAD WIRE, BATTERY (+)

33820-39A00

Unavailable

11

LEAD WIRE, BATTERY (-)

33860-38A00

$20.35

12

HOLDER, BATTERY This part replaces 41540-38A11.

41540-38A12

$129.45

13

PLUG, OIL GALLERY This part replaces 01517-10165.

01550-1016A

$3.10

14

BOLT This part replaces 01517-06164.

01550-0616A

$1.97

15

CUSHION

09320-12031

$2.34

16

SPACER (8.5X12X11) This part replaces 09180-08001.

09180-08189

$2.58
