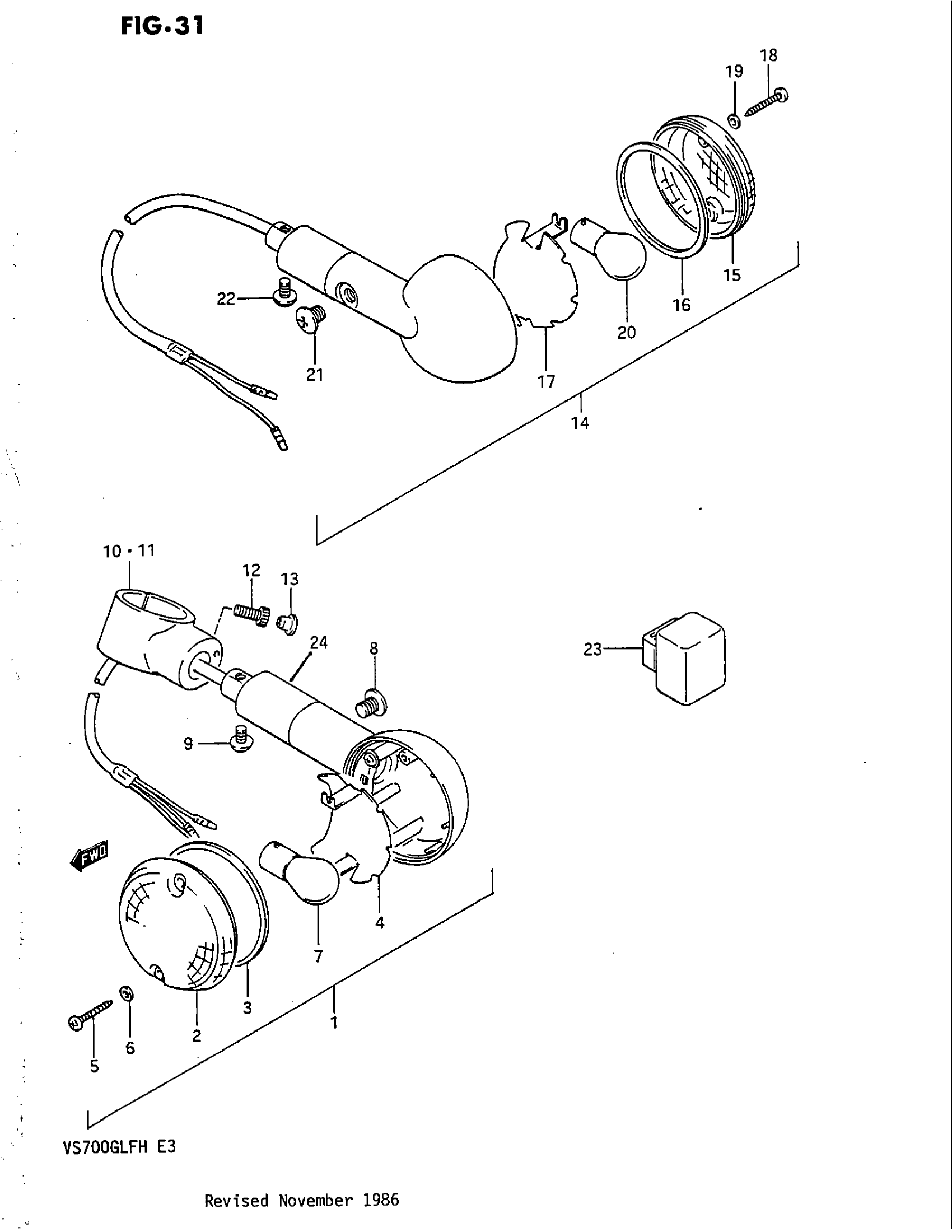

Suzuki VS700GLEF (1987) TURN SIGNAL LAMP Diagram

#

Description
Price

1

LAMP ASSY, FR TURN SIGNAL LH | Includes Item(s) 2 - 8 This part replaces 35601-38A32.

35601-38A32-999

Unavailable

2

LENS

35612-38A30

$17.90

3

GASKET

35613-38A00

$9.74

4

REFLECTOR

35624-38A00

Unavailable

5

SCREW This part replaces 03211-04258.

03211-0425B

$2.70

6

GASKET

35627-43010

$2.28

7

BULB (12V,23/8W)

09471-12084

Unavailable

8

SCREW

35623-38A01

$5.05

9

SCREW

02142-06108

$2.45

10

BRACKET, RH

35671-38A00

Unavailable

11

BRACKET, LH

35681-38A00

Unavailable

12

BOLT This part replaces 07110-06167.

07130-06167

$3.16

13

CAP

09250-05008

$3.76

14

LAMP ASSY, REAR TURNSIGNAL,R | Includes Item(s) 15 - 21 This part replaces 35603-38A02.

35603-38A02-999

Unavailable

15

LENS This part replaces 35612-38A00.

35612-38A01

$13.81

16

GASKET

35613-38A00

$9.74

17

REFLECTOR

35624-38A00

Unavailable

18

SCREW This part replaces 03211-04256.

03211-0425B

$2.70

19

GASKET

35627-43010

$2.28

20

BULB (12V,23W)

09471-12006

$3.98

21

SCREW

35623-38A01

$5.05

22

SCREW

02142-06108

$2.45

23

RELAY ASSY, TURNSIGNAL This part replaces 38610-31310.

38610-31X50

$80.15
