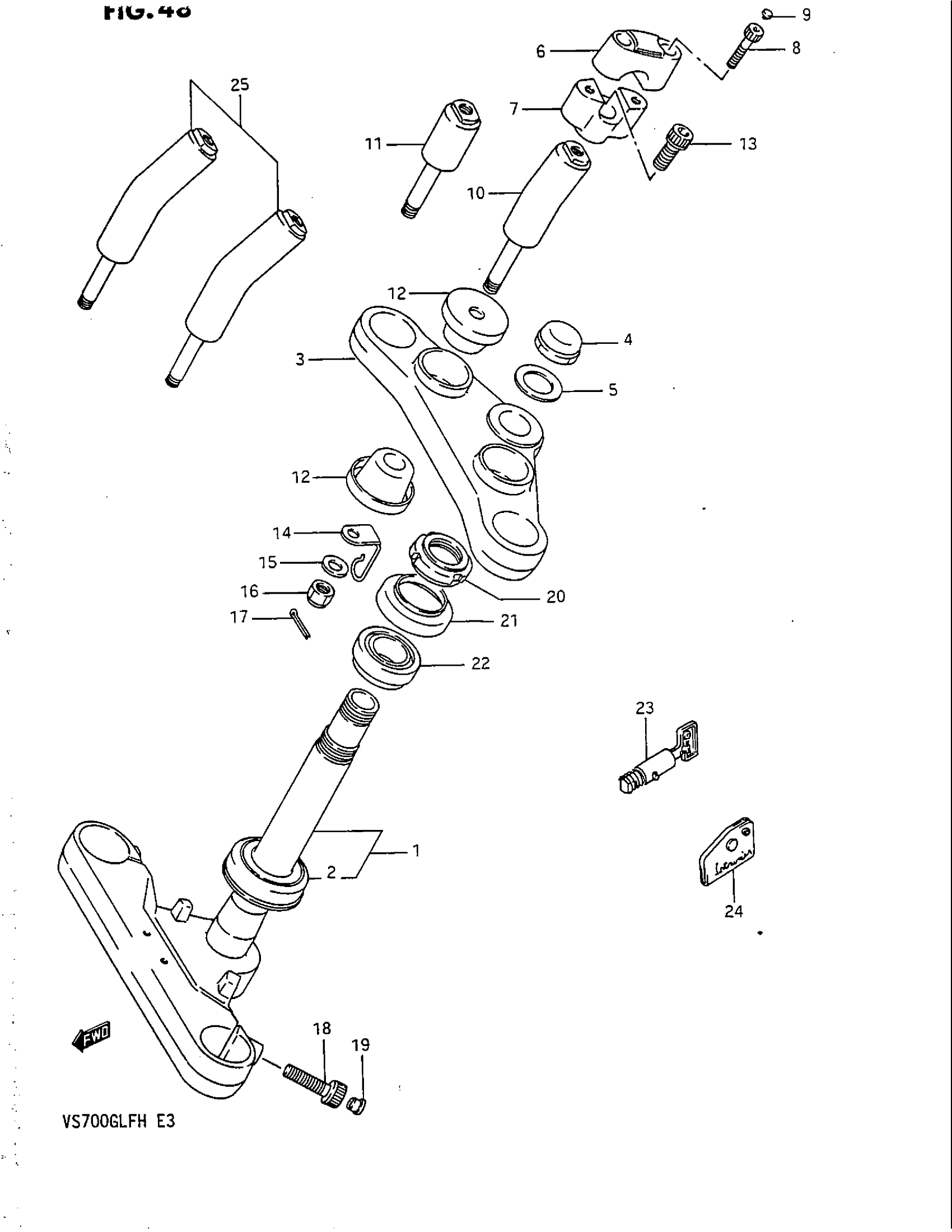

Suzuki VS700GLEF (1987) STEERING STEM (MODEL H) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 This part replaces 51410-38A01.

51410-38A21

Unavailable

2

RT 30X55X17 BEA This part replaces 09265-30005.

09265-30034

$57.05

3

STEM HEAD, STEERING

51311-38A01

Unavailable

4

NUT, STEM This part replaces 51353-38A01.

51353-24B00

$30.67

5

WASHER, STEM This part replaces 51354-38A01.

51356-24B01

$5.38

6

HOLDER, HANDLE UPPER

56211-38A01

$62.07

7

HOLDER, HANDLE LOWER

56221-38A01

$83.92

8

BOLT, STEERING DAMPER This part replaces 07110-08305.

07130-0830A

$1.74

9

CAP, HANDLE CLAMP

09250-06009

$3.42

10

STAY, HANDLE (FLAT TYPE) | VS700GLFH/GLEFH

56231-38A40

Unavailable

11

STAY, HANDLE (PULL BACK TYPE) | VS700GLPH/GLEPH

56231-38A50

$59.80

12

CUSHION, HANDLE STAY UPPER This part replaces 56240-38A40.

56240-38A42

$52.73

13

BOLT This part replaces 07110-10258.

07130-10257

$4.60

14

CLAMP

34938-38A11

Unavailable

15

WASHER

51354-38A40

$8.07

16

NUT

09159-10027

$3.10

17

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49

18

BOLT, LOWER This part replaces 51352-38A00.

07130-10307

$4.41

19

CAP

09250-08014

$2.85

20

NUT, STEERING STEM

51631-28000

$17.37

21

SEAL, STEERING DUST This part replaces 51643-49001.

51643-49002

$12.32

22

BEARING, STEERING UPPER

09265-25008

Unavailable

23

LOCK ASSY,STEER This part replaces 51900-38810.

51900-309V0

$87.06

24

CASE, STEERING KEY

51920-38A00

Unavailable

25

STAY SET, HANDLE | OPT

56100-38820

Unavailable
