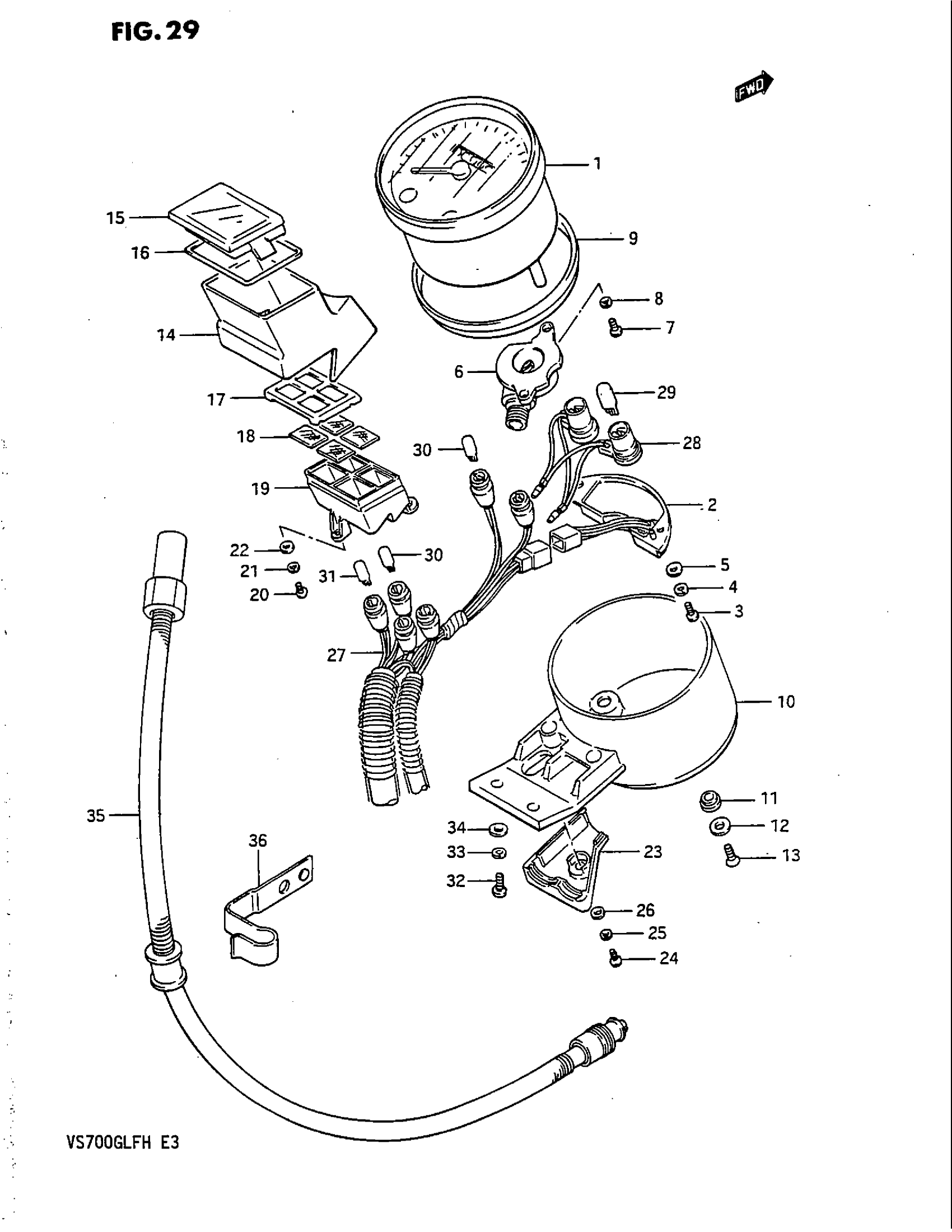

Suzuki VS700GLEF (1987) SPEEDOMETER Diagram

#

Description
Price

1

SPEEDOMETER (MILE/KILO) | MODEL G

34110-38A30

Unavailable

1

SPEEDOMETER (MILE/KILO) | MODEL H This part replaces 34110-39A40.

34110-38A30

Unavailable

2

UNIT, WATER TEMP WARNING

34490-38A00

Unavailable

3

SCREW This part replaces 02112-03086.

02112-0308A

$1.80

4

LOCK WASHER This part replaces 08321-21036.

08321-2103B

$1.49

5

WASHER This part replaces 08322-21036.

08322-0103B

$2.45

6

BOX, METER GEAR

34131-38A00

Unavailable

7

SCREW This part replaces 02112-04108.

02112-04107

$1.55

8

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.84

9

CUSHION, METER

34288-38A00

Unavailable

10

COVER, METER

34193-38A00

Unavailable

11

CUSHION This part replaces 34189-05A30.

34189-05A31

$5.32

12

WASHER

34181-38A00

$3.30

13

SCREW This part replaces 34164-38A00.

02112-04087

$1.49

14

BOX, PILOT LAMP

36381-38A00

Unavailable

15

LENS, PILOT BOX

36393-38A00

Unavailable

16

CUSHION

36395-38A00

$7.37

17

PLATE, PILOT LENS

36386-38A00

Unavailable

18

LENS SET, PILOT LAMP

36300-38810

Unavailable

19

CASE, PILOT LAMP

36382-38A00

Unavailable

20

SCREW This part replaces 02112-03086.

02112-0308A

$1.80

21

LOCK WASHER This part replaces 08321-21036.

08321-2103B

$1.49

22

WASHER This part replaces 08322-21036.

08322-0103B

$2.45

23

COVER, PILOT BOX

34152-38A00

Unavailable

24

SCREW

02112-04087

$1.49

25

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.84

26

WASHER This part replaces 08322-21047.

08322-01047

$1.86

27

SOCKET, METER NO.1 | MODEL G

34173-38A30

Unavailable

27

SOCKET, METER NO.1 | MODEL H

34173-39A40

Unavailable

28

SOCKET, METER NO.2

34174-38A00

Unavailable

29

BULB (12V,3.4W)

09471-12028

$1.99

30

BULB (12V,3W) | MODEL GMODEL H

09471-12103

$3.83

31

.BULB (12V1.7W)

09471-12108

$3.42

32

SCREW

02112-06167

$1.49

33

LOCK WASHER This part replaces 08321-21067.

08321-01067

$2.13

34

WASHER This part replaces 08322-21067.

08322-01067

$2.13

35

CABLE ASSY, SPEEDOMETER This part replaces 34910-38A03.

34910-39A00

Unavailable

36

GUIDE, METER CABLE This part replaces 34938-38A01.

34938-38A02

$10.65
