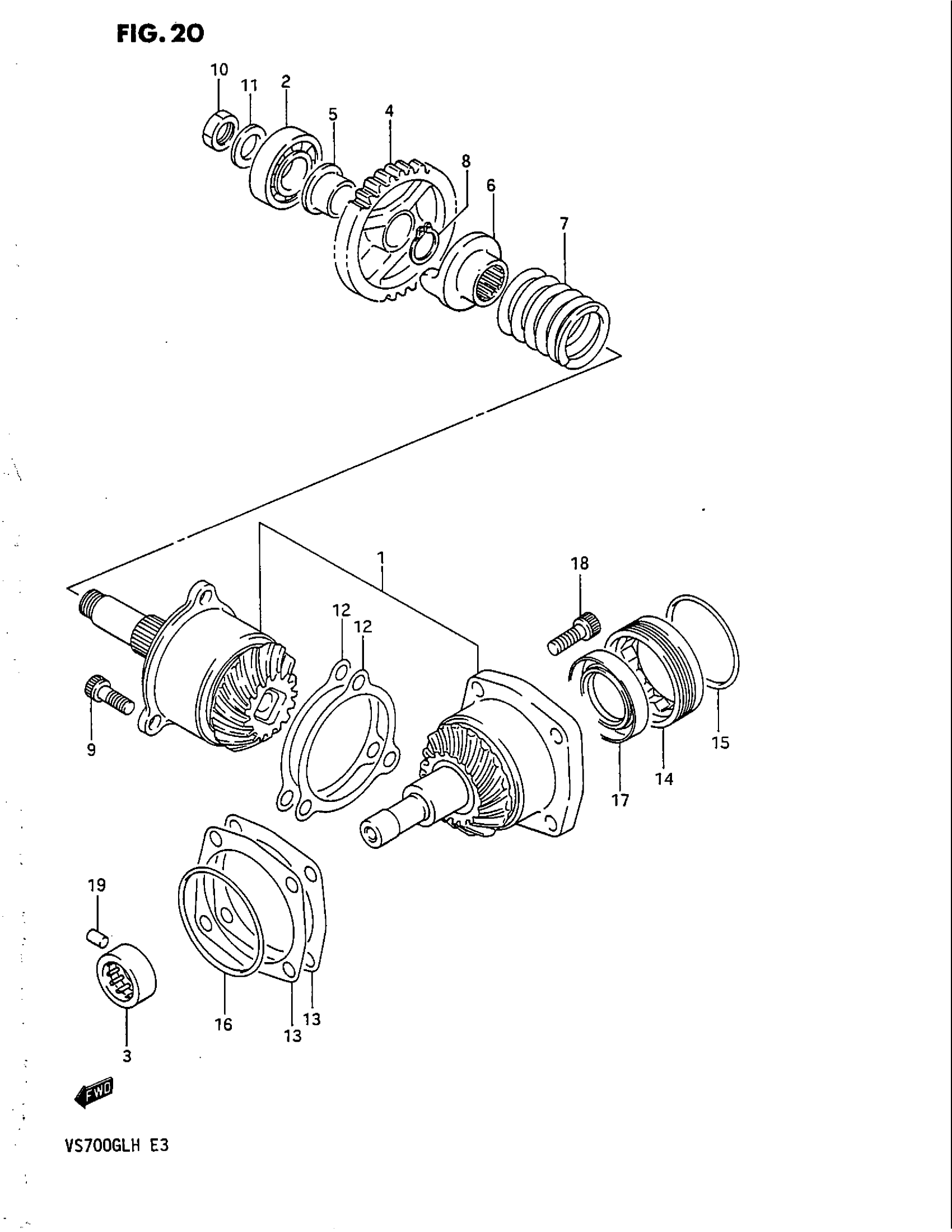

Suzuki VS700GLEF (1987) SECONDARY DRIVE GEAR (MODEL G) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | ~E.NO.104257 This part replaces 24900-38812.

24900-38815

Unavailable

1

NO DESCRIPTION AVAILABLE | E.NO.104258~; Includes Item(s) 2 - 3 This part replaces 24900-38814.

24900-38815

Unavailable

2

BEARING (20X52X15)

09262-20073

$23.28

3

BEARING (20X34X16)

09263-20038

$55.95

4

GEAR, REDUCTION DRIVEN (NT:30

24631-38A00

Unavailable

5

BUSH,REDUCTION DRIVEN GEAR

24632-38A00

Unavailable

6

DOG, OUTPUT CAM

24922-38A00

Unavailable

7

SPRING

09440-44002

Unavailable

8

CIRCLIP This part replaces 08331-31218.

08331-31219

$2.43

9

BOLT This part replaces 07110-08256.

07130-0825B

$3.37

10

NUT This part replaces 09140-16014.

09140-16005

$3.75

11

WASHER

09160-16029

$6.35

12

SHIM (T:0.30)

24935-38A01-030

Unavailable

12

SHIM (T:0.35)

24935-38A01-035

Unavailable

12

SHIM (T:0.40)

24935-38A01-040

Unavailable

12

SHIM (T:0.50)

24935-38A01-050

Unavailable

12

SHIM (T:0.60)

24935-38A01-060

Unavailable

13

SHIM (T:0.30)

24945-05A00-0A0

Unavailable

13

SHIM (T:0.35)

24945-05A00-0B0

Unavailable

13

SHIM (T:0.40)

24945-05A00-0C0

Unavailable

13

SHIM (T:0.50)

24945-05A00-0D0

Unavailable

13

SHIM (T:0.60)

24945-05A00-0E0

Unavailable

14

STOPPER, BEARING

24942-38A02

Unavailable

15

O RING

09280-62002

$3.29

16

O RING

09280-67004

$4.10

17

OIL SEAL

09283-38011

$17.92

18

BOLT This part replaces 07110-08256.

07130-0825B

$3.37

19

PIN

04221-07129

$1.86
