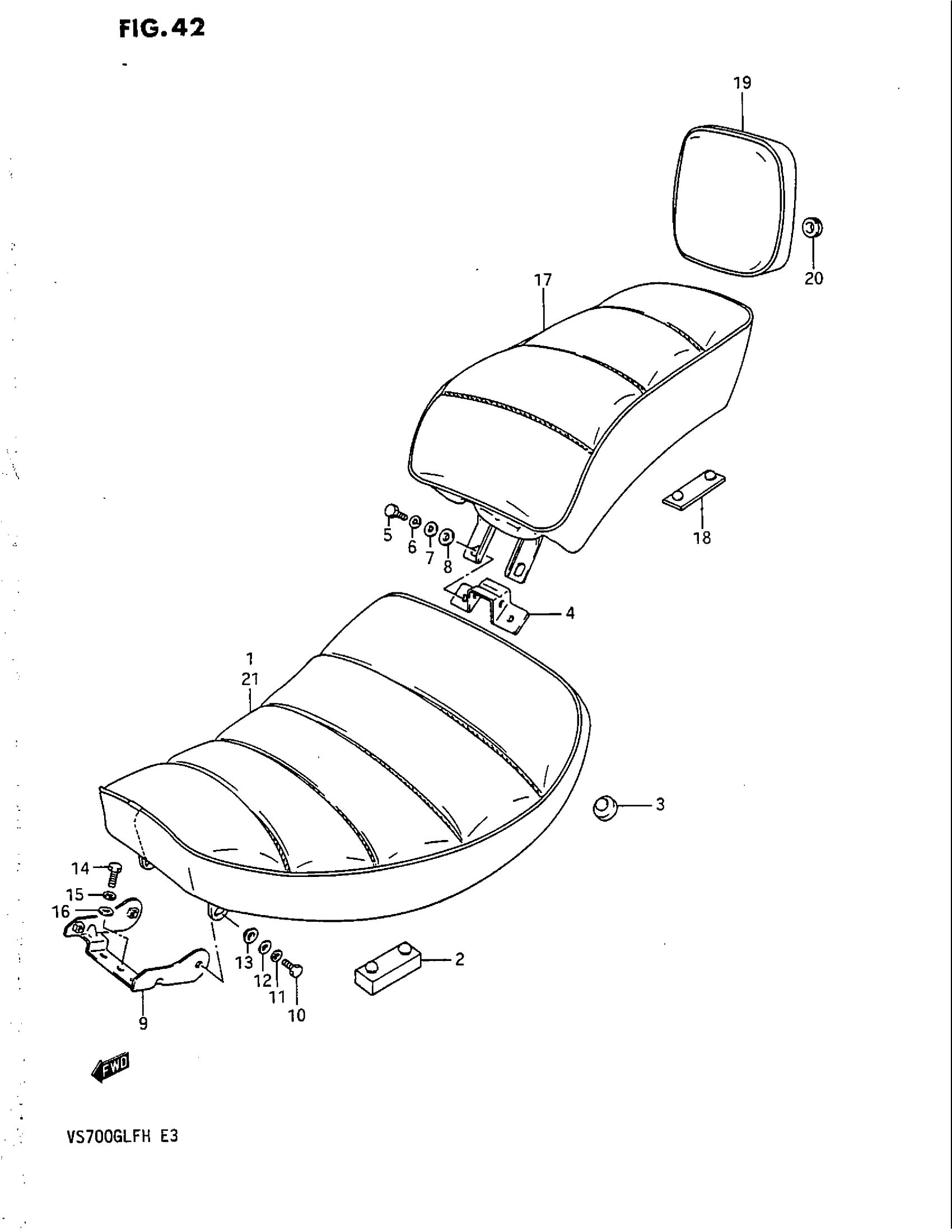

Suzuki VS700GLEF (1987) SEAT Diagram

#

Description
Price

1

SEAT SET | MODEL G This part replaces 45100-38A00-4HS.

45100-38A12-4HS

Unavailable

1

SEAT SET | MODEL H; Includes Item(s) 2 - 3 This part replaces 45100-38A20-4HS.

45100-38A12-4HS

Unavailable

2

CUSHION

45149-43500

$6.85

3

CUSHION

09321-10012

$2.92

4

PLATE, SEAT HOOK REAR

45119-38A00

$8.18

5

BOLT This part replaces 01107-06166.

01500-0616A

$1.78

6

LOCK WASHER This part replaces 08321-21066.

08321-0106A

$1.84

7

.WASHER This part replaces 08322-21066.

08322-0106B

$2.26

8

WASHER

09169-06037

$2.45

9

BRACKET, SEAT FRONT | MODEL G This part replaces 45210-38A01-24D.

45210-38A03

$31.70

9

BRACKET, SEAT FRONT This part replaces 45210-38A01-019.

45210-38A03

$31.70

9

BRACKET, SEAT FRONT | MODEL H This part replaces 45210-38A01-24V.

45210-38A03

$31.70

9

BRACKET, SEAT FRONT | MODEL H This part replaces 45210-38A01-33D.

45210-38A03

$31.70

10

BOLT This part replaces 01107-06166.

01500-0616A

$1.78

11

LOCK WASHER This part replaces 08321-21066.

08321-0106A

$1.84

12

.WASHER This part replaces 08322-21066.

08322-0106B

$2.26

13

WASHER

09169-06037

$2.45

14

BOLT This part replaces 01107-06165.

01500-0616A

$1.78

15

LOCK WASHER This part replaces 08321-21064.

08321-0106A

$1.84

16

.WASHER This part replaces 08322-21064.

08322-0106B

$2.26

17

SEAT SET, PILLION (BLACK) | Includes Item(s) 18

45300-38A01-4HS

Unavailable

18

CUSHION

45149-14500

$7.67

19

PAD ASSY, SEAT (BLACK) | MODEL G This part replaces 45350-38A01-4HS.

45350-38A02-4HS

Unavailable

19

PAD ASSY, SEAT (BLACK) | MODEL H

45350-38A02-4HS

Unavailable

20

CUSHION This part replaces 09320-09026.

09320-09062

$2.00

21

NO DESCRIPTION AVAILABLE | OPT This part replaces 45100-38810-9HZ.

99950-62109

Unavailable

21

SEAT SET | OPT

45100-38810-9KG

Unavailable
