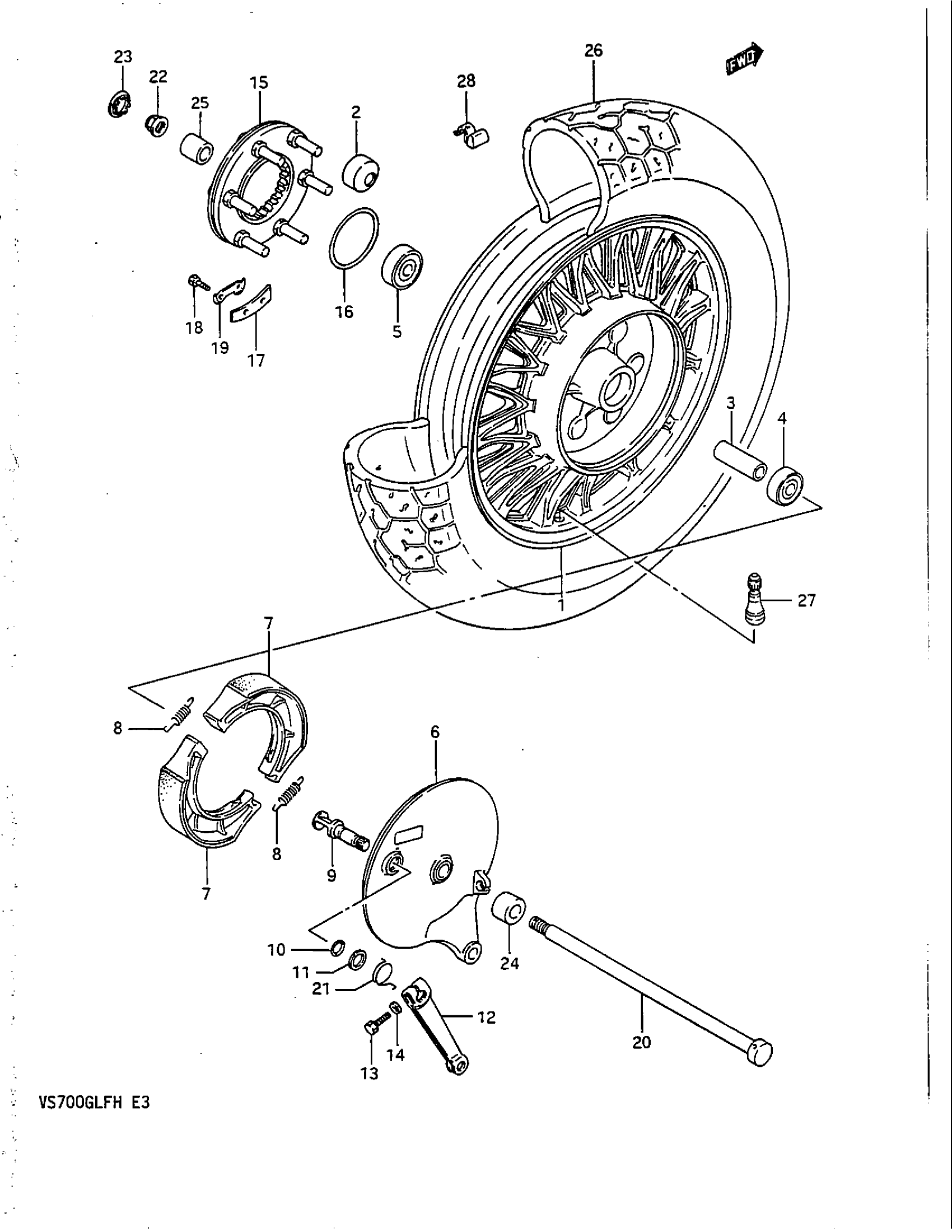

Suzuki VS700GLEF (1987) REAR WHEEL (VS700GLEFH/GLEPH) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | SILVER; Includes Item(s) 2 This part replaces 64100-38830-23W.

64100-38831-23W

Unavailable

2

BUSHING

09319-12019

$13.11

3

SPACER, REAR HUB BEARING

64731-37200

Unavailable

4

BEARING This part replaces 08123-62037.

08133-6203B

$17.61

5

BEARING, LH

08143-63037

$22.58

6

PANEL, REAR BRAKE ANCHOR This part replaces 64210-38A20.

64210-38A21

$270.62

7

SHOE SET, BRAKE This part replaces 64410-07A01.

64400-38810

$55.67

8

SPRING

55420-30000

$4.48

9

CAM, BRAKE

64440-38A00

Unavailable

10

O RING (ID:14.8,D:2.40) This part replaces 09280-15001.

09280-15003

$1.76

11

WASHER This part replaces 09160-15001.

09160-15048

$2.56

12

LEVER, BRAKE CAM

64451-38A01

$57.67

13

BOLT This part replaces 01107-06257.

01500-06257

$1.97

14

LOCK WASHER This part replaces 08321-21067.

08321-01067

$2.13

15

JOINT, HUB DRIVEN This part replaces 64680-07A01.

64680-45113

$275.40

16

O RING

09280-65003

$3.72

17

WASHER, THRUST

64677-45110

$2.92

18

BOLT

09119-06049

$1.56

19

WASHER

09169-06030

$3.15

20

AXLE, REAR (L:302) This part replaces 64711-38A10.

64711-38A11

Unavailable

21

SPRING, CAM

09448-33006

$9.23

22

NUT This part replaces 09159-14017.

08319-3114A

$9.66

23

CAP, RH

64791-38B00

$22.45

24

SPACER, RH This part replaces 64741-38A20.

64751-46D00

$23.47

25

SPACER, LH This part replaces 64772-34200.

64772-34201

$23.07

26

NO DESCRIPTION AVAILABLE | BS This part replaces 65100-38A50.

65100-38A51

Unavailable

27

VALVE ASSY

43130-38A20

Unavailable

28

BALANCER (10G)

55411-00A00

$1.49

28

BALANCER, WHEEL NO.2 This part replaces 55412-00A00.

55412-17G00

$7.05

28

BALANCER (30G) This part replaces 55413-00A00.

55413-00A01

Unavailable
