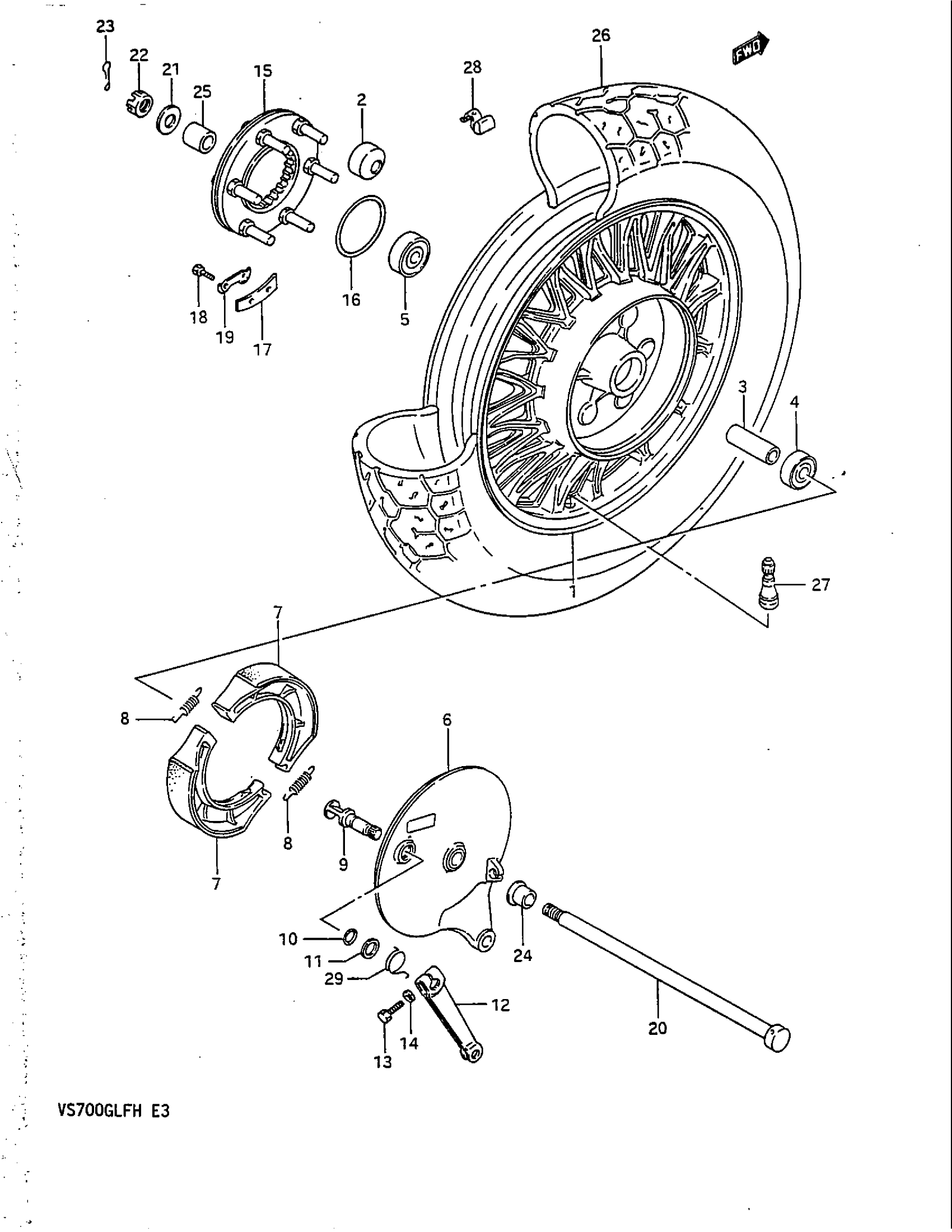

Suzuki VS700GLEF (1987) REAR WHEEL (VS700GLEFG/GLEPG) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | SILVER; Includes Item(s) 2 This part replaces 64100-38820-23W.

64100-38821-23W

Unavailable

2

BUSHING

09319-12037

Unavailable

3

SPACER, REAR HUB BEARING

64731-37200

Unavailable

4

BEARING This part replaces 08123-62037.

08133-6203B

$17.61

5

BEARING, LH

08143-63037

$22.58

6

PANEL, REAR BRAKE ANCHOR This part replaces 64210-38A20.

64210-38A21

$270.62

7

SHOE SET, BRAKE This part replaces 64410-07A01.

64400-38810

$55.67

8

SPRING

55420-30000

$4.48

9

CAM, BRAKE

64440-38A00

Unavailable

10

O RING (ID:14.8,D:2.40) This part replaces 09280-15001.

09280-15003

$1.76

11

WASHER This part replaces 09160-15001.

09160-15048

$2.56

12

LEVER, BRAKE CAM

64451-38A01

$57.67

13

BOLT This part replaces 01107-06258.

01500-06257

$1.97

14

LOCK WASHER This part replaces 08321-21067.

08321-01067

$2.13

15

JOINT, HUB DRIVEN This part replaces 64680-07A01.

64680-45113

$275.40

16

O RING

09280-65003

$3.72

17

WASHER, THRUST

64677-45110

$2.92

18

BOLT

09119-06049

$1.56

19

WASHER

09169-06030

$3.15

20

AXLE, REAR

64711-38A00

Unavailable

21

WASHER

09160-16025

Unavailable

22

NUT

09141-16001

Unavailable

23

COTTER PIN

64791-38A00

Unavailable

24

SPACER, RH

64741-38A10

Unavailable

25

SPACER, LH This part replaces 64772-34200.

64772-34201

$23.07

26

NO DESCRIPTION AVAILABLE | BS This part replaces 65100-38A20.

65100-38A51

Unavailable

27

VALVE ASSY

43130-38A20

Unavailable

28

BALANCER (10G) This part replaces 55411-00A00-23W.

55411-00A00

$1.49

28

BALANCER, WHEEL NO.2 This part replaces 55412-00A00-23W.

55412-17G00

$7.05

28

BALANCER (30G) This part replaces 55413-00A00-23W.

55413-00A01

Unavailable

29

SPRING | LEPH

09448-33006

$9.23
