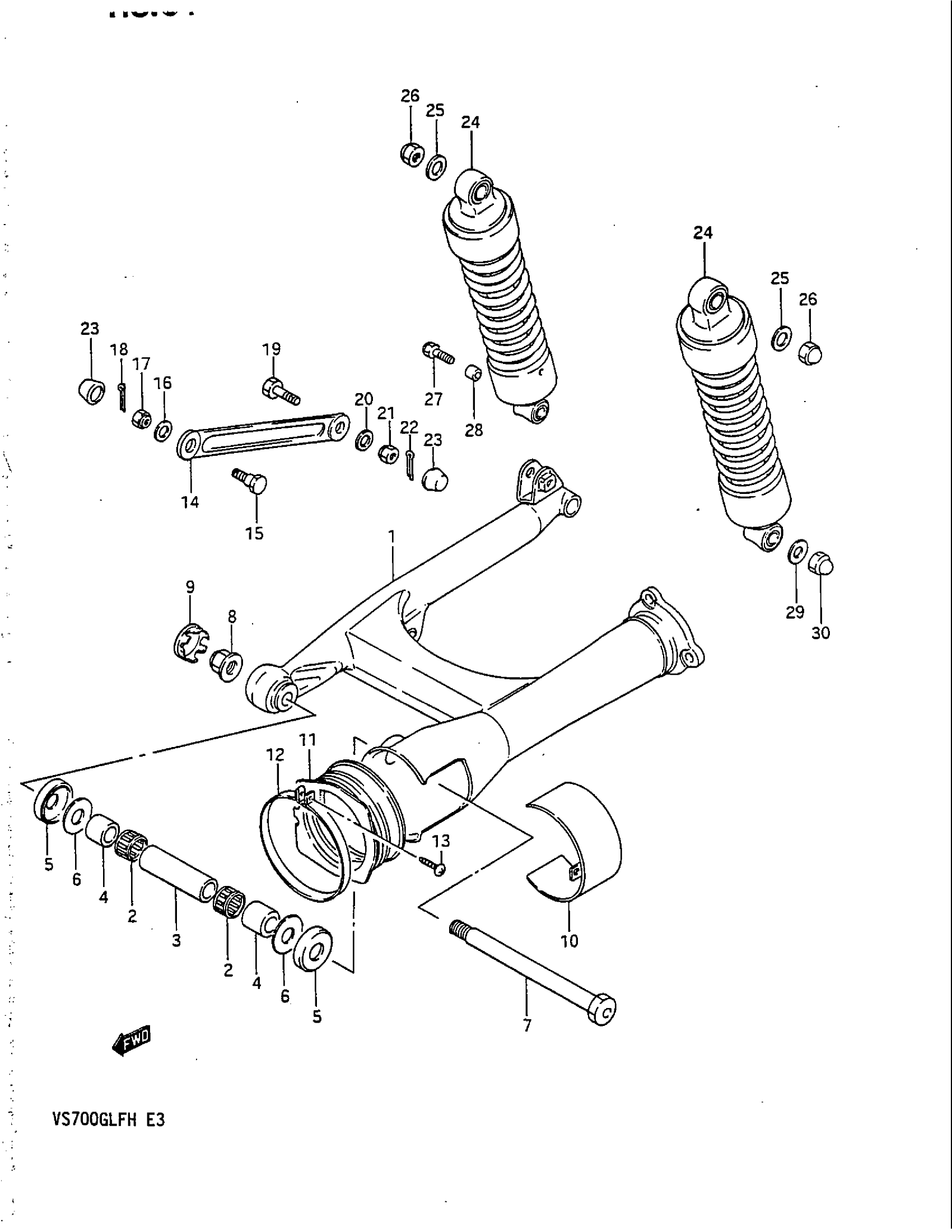

Suzuki VS700GLEF (1987) REAR SWINGING ARM (VS700GLFG/GLPG -F.NO.115898) Diagram

#

Description
Price

1

SWINGING ARM, REAR | BLACK

61100-38A02-019

Unavailable

1

SWINGING ARM, REAR | MAROON

61100-38A02-24D

Unavailable

2

BEARING

09263-22022

$22.69

3

SPACER, CENTER This part replaces 61282-38A00.

61282-38E01

$19.57

4

SPACER

61251-32400

Unavailable

5

DUST SEAL

61262-45002

$7.97

6

THRUST WASHER

08211-14341

$3.42

7

SHAFT, PIVOT

61211-38A00

Unavailable

8

NUT This part replaces 09159-14017.

08319-3114A

$9.66

9

CAP, PIVOT This part replaces 61222-38A00.

61222-38A01

$13.35

10

COVER, PIVOT LH (SILVER) This part replaces 61232-38A00-019.

61232-38A00-13L

Unavailable

10

COVER, PIVOT LH (SILVER) This part replaces 61232-38A00-24D.

61232-38A00-13L

Unavailable

11

BOOT

61372-38A00

$27.97

12

CLAMP This part replaces 09402-92306.

09402-92306-XC0

$5.57

13

SCREW This part replaces 03211-04255.

03211-0425B

$2.70

14

TORQUE LINK, REAR (BLACK) | L:240

64310-38A02-019

Unavailable

15

BOLT, FRONT

09111-10010

Unavailable

16

WASHER This part replaces 09160-10026.

09160-10121

$2.03

17

NUT

09159-10059

$2.53

18

PIN This part replaces 04111-16208.

04111-1620A

$1.49

19

BOLT, REAR This part replaces 09101-10019.

09101-10031

Unavailable

20

WASHER This part replaces 09160-10026.

09160-10121

$2.03

21

NUT

09159-10059

$2.53

22

PIN This part replaces 04111-16208.

04111-1620A

$1.49

23

CAP

09251-13002

$4.67

24

ABSORBER ASSY, REAR SHOCK This part replaces 62100-38A00.

62100-38A53

$470.62

25

WASHER, LOWER (10.5X24X2.3) This part replaces 09160-10095.

09160-10093

$2.35

26

NUT This part replaces 08313-11108.

08313-10107

$2.50

27

BOLT, LOWER RH

09104-10002

$3.55

28

SPACER, LOWER RH (10.2X14X20.7) This part replaces 09180-10104.

09180-10139

$3.99

29

WASHER, LOWER (10.5X24X2.3) This part replaces 09160-10095.

09160-10093

$2.35

30

NUT | LEPGPG F.NO.115899~ This part replaces 08313-11108.

08313-10107

$2.50
