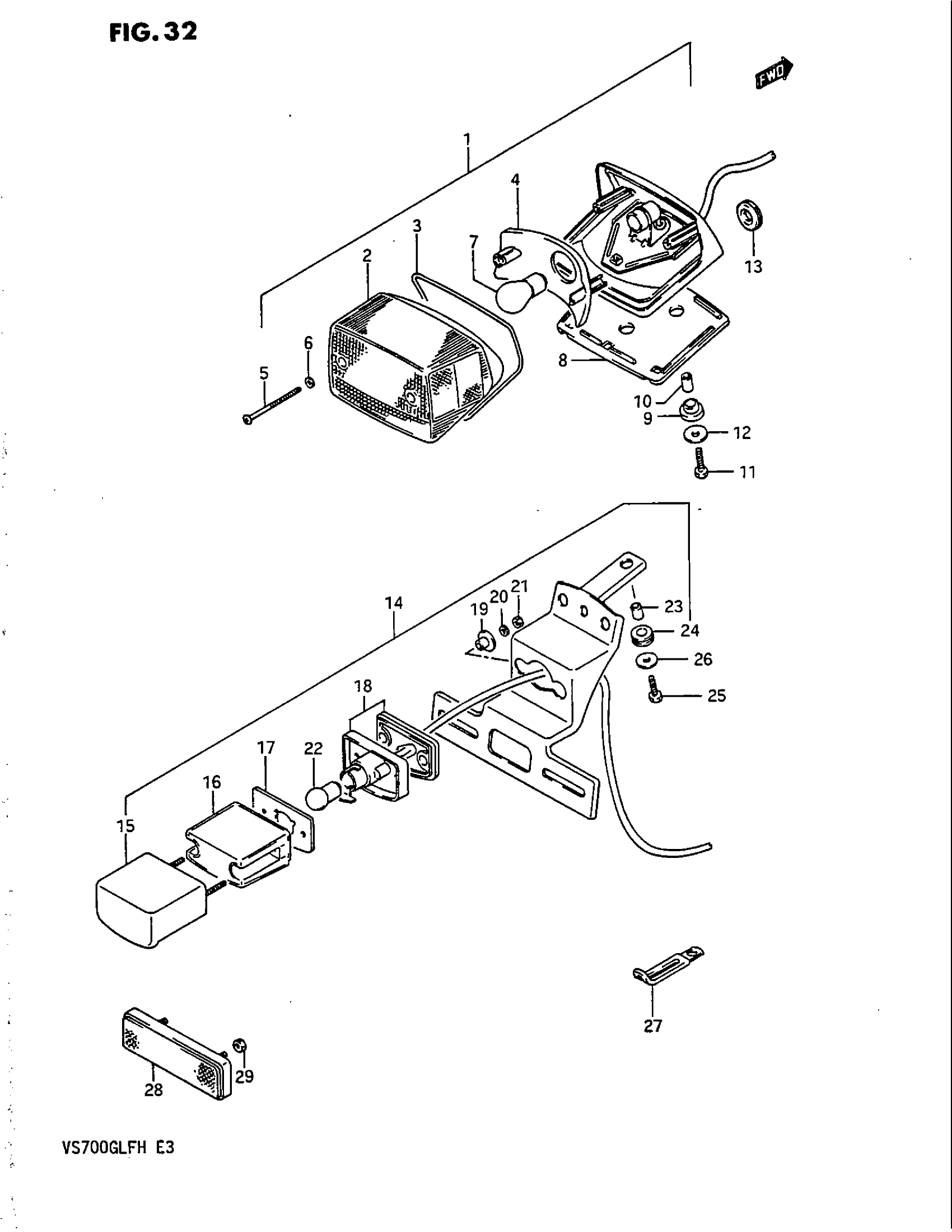

Suzuki VS700GLEF (1987) REAR COMBINATION LAMP Diagram

#

Description
Price

1

LAMP ASSY, REAR COMBINATION | Includes Item(s) 2 - 10 This part replaces 35710-38A30.

35710-39A00-999

Unavailable

2

LENS

35712-38A30

$63.97

3

GASKET This part replaces 35713-38A00.

35713-31D00

$9.42

4

REFLECTOR

35714-38A00

Unavailable

5

SCREW

35723-44130

$2.22

6

GASKET

35627-43010

$2.28

7

BULB (12V,23/8W)

09471-12084

Unavailable

8

CUSHION

35765-38A00

Unavailable

9

CUSHION

35764-26470

$3.37

10

SPACER

35766-37190

$2.45

11

BOLT, GEAR SHIFT ARM This part replaces 01107-06256.

01500-0625A

$1.78

12

WASHER (6.5X20X1.6) This part replaces 09160-06020.

09160-06066

$1.89

13

GROMMET

09308-09013

Unavailable

14

LAMP ASSY, LICENSE | Includes Item(s) 15 - 24

35910-38A33

Unavailable

15

COVER, LICENSE LAMP This part replaces 35917-38A30.

35917-38A20

Unavailable

16

LENS

35912-38A30

$20.45

17

GASKET

35913-38A30

$3.37

18

HOUSING, LICENSE LAMP

35915-38A31

Unavailable

19

SPACER

35766-38A30

Unavailable

20

LOCK WASHER This part replaces 08321-21047.

08321-0104A

$1.84

21

NUT This part replaces 08310-11047.

08310-00047

$2.23

22

BULB (12V, BW) This part replaces 09471-12037.

09471-12141

Unavailable

23

SPACER

35766-38A00

Unavailable

24

CUSHION

35765-38A30

Unavailable

25

BOLT, GEAR SHIFT LINK This part replaces 01107-06206.

01500-0620A

$1.78

26

WASHER (6.5X18X1.6) This part replaces 09160-06057.

09160-06109

$1.49

27

CLAMP This part replaces 09404-06401.

09404-06039

$1.74

28

REFLEX REFLECTOR, REAR

35970-38A00

Unavailable

29

NUT This part replaces 08316-16056.

08316-1005A

$2.19
