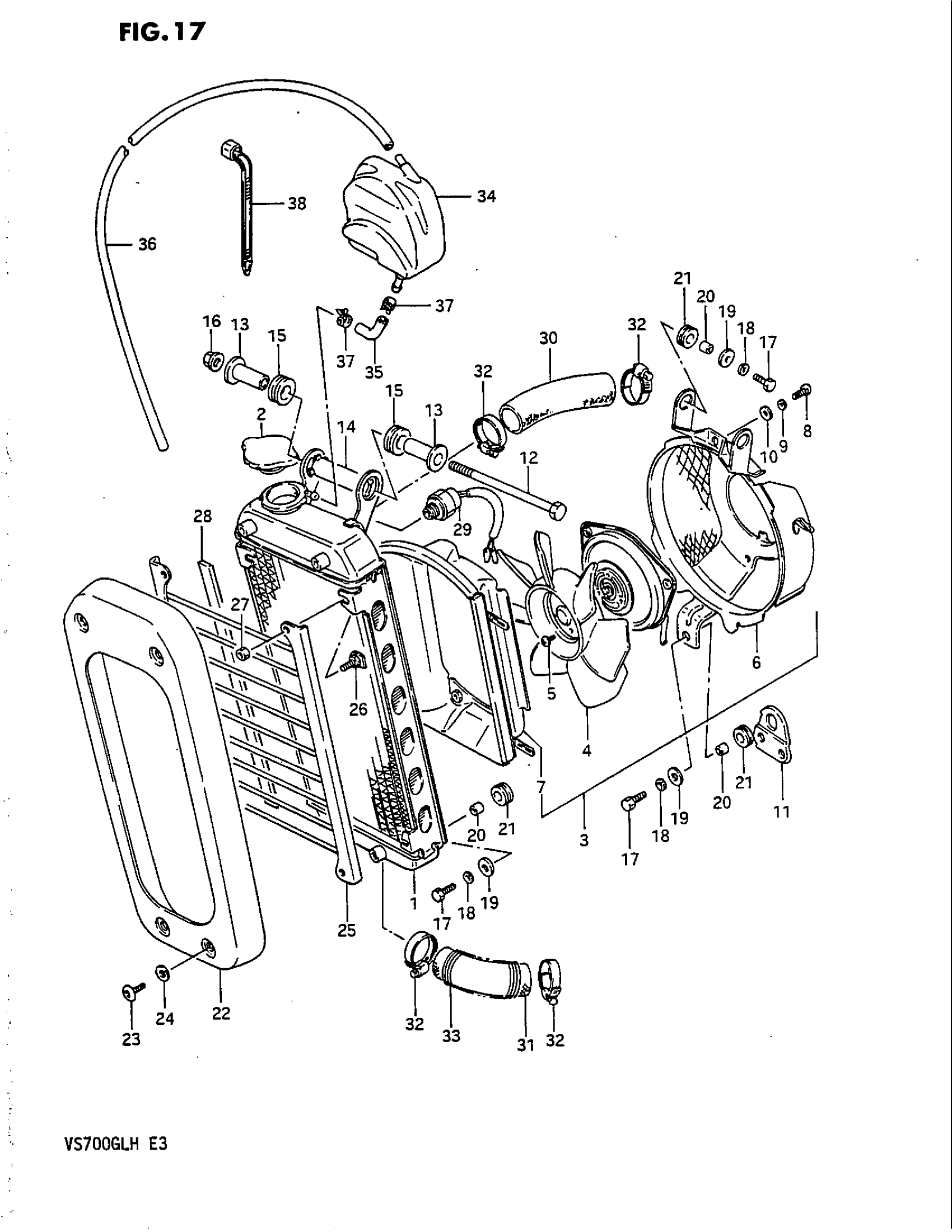

Suzuki VS700GLEF (1987) RADIATOR Diagram

#

Description
Price

1

RADIATOR

17710-38A01

Unavailable

2

CAP, RADIATOR This part replaces 17730-24A00.

17730-08J00

$42.50

3

FAN ASSY | MODEL G This part replaces 17800-38A01.

17800-38A03

Unavailable

3

FAN ASSY | MODEL H; Includes Item(s) 4 - 10 This part replaces 17800-38A02.

17800-38A03

Unavailable

4

FAN

17820-38A00

Unavailable

5

SCREW This part replaces 17801-05A00.

02112-0406B

$1.55

6

SHROUD This part replaces 17770-38A01.

17770-39A00

Unavailable

7

DUCT, FAN

17150-38A00

Unavailable

8

SCREW, THROTTLE This part replaces 02112-05106.

02112-0510A

$1.49

9

LOCK WASHER This part replaces 08321-21056.

08321-0105A

$1.84

10

WASHER, FRONT This part replaces 08322-21056.

08322-0105A

$1.84

11

BRACKET, RADIATOR FAN

17808-38A00

Unavailable

12

BOLT

09100-10198

Unavailable

13

SPACER | ~F.NO.103866 This part replaces 17782-38A00.

17782-38A01

Unavailable

13

SPACER | F.NO.103867~

17782-38A01

Unavailable

14

SPACER

17783-38A00

Unavailable

15

CUSHION

09320-15008

$3.89

16

NUT This part replaces 08319-31105.

08319-3110A

$2.73

17

BOLT This part replaces 01107-06165.

01500-0616A

$1.78

18

LOCK WASHER This part replaces 08321-21064.

08321-0106A

$1.84

19

WASHER (6.5X18X1.6) This part replaces 09160-06039.

09160-06109

$1.49

20

SPACER This part replaces 09180-06154.

09180-06261

$1.91

21

CUSHION

09320-08037

$3.72

22

NO DESCRIPTION AVAILABLE | MODEL G This part replaces 17761-38A01.

17761-38A01-019

Unavailable

22

NO DESCRIPTION AVAILABLE | MODEL H This part replaces 17761-38A40-13Z.

17761-38A50-33J

Unavailable

22

NO DESCRIPTION AVAILABLE | MODEL H This part replaces 17761-38A40-33D.

17761-38A50-33J

Unavailable

22

NO DESCRIPTION AVAILABLE | MODEL H This part replaces 17761-38A40-33H.

17761-38A50-33J

Unavailable

23

SCREW, MUFFLER COVER This part replaces 09139-06041.

09139-06076

$2.42

24

WASHER (6.5X14X2.0) This part replaces 09160-06093.

09160-06126

$1.91

25

BUMPER, RADIATOR

17790-38A00

Unavailable

26

BOLT

09119-05014

Unavailable

27

.NUT This part replaces 08310-22055.

09140-05006

$2.19

28

CUSHION, RADIATOR BUMPER

17795-38A00

Unavailable

29

SWITCH, RADIATOR FAN This part replaces 17680-38A00.

17680-24A02

$97.09

30

HOSE, RADIATOR IN

17851-38A00

Unavailable

31

HOSE, WATER PUMP OUT This part replaces 17852-38A00.

17858-38820

$14.76

32

CLAMP | MODEL G This part replaces 09402-30501.

09402-32511

$10.86

32

CLAMP | MODEL H This part replaces 09402-30502.

09402-32511

$10.86

33

SPRING

09440-35005

Unavailable

34

TANK, RESERVE

17911-38A00

Unavailable

35

HOSE, INLET

17981-38A01

$7.37

36

HOSE, OUTLET This part replaces 17982-38A02.

17982-38810

$17.37

37

CLIP This part replaces 09401-08407.

09401-08411

$1.78

38

CLAMP

09407-14403

$2.26

39

COVER SET, RADIATOR | OPT,NOT SHOWN

17700-38810

Unavailable
