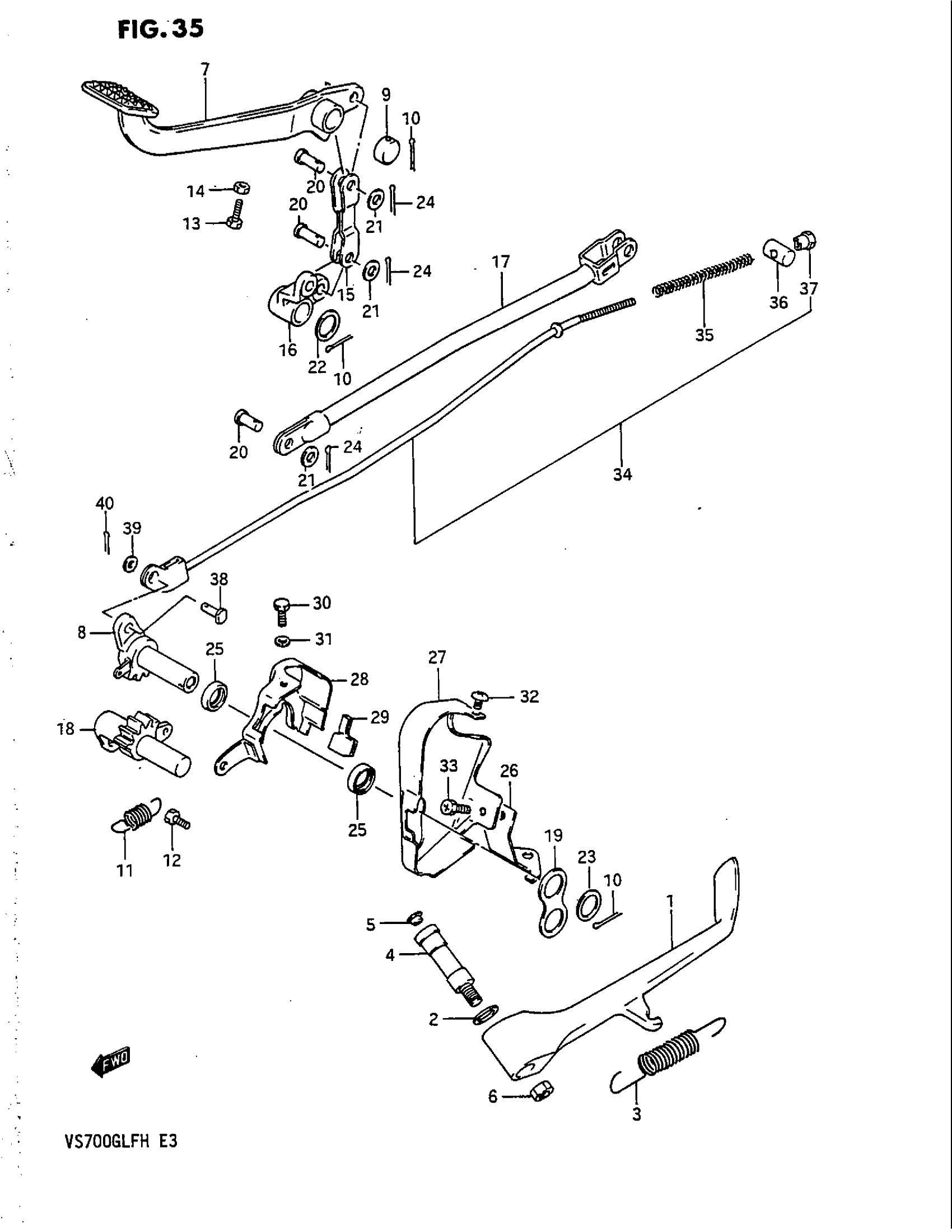

Suzuki VS700GLEF (1987) PROP STAND - REAR BRAKE (VS700GLFG/GLPG -F.NO.115898) Diagram

#

Description
Price

1

STAND, PROP

42310-38A00

Unavailable

1

STAND, PROP | OPT

42310-38A90

Unavailable

2

SHIM This part replaces 08221-15245.

09181-15158

$3.03

3

SPRING This part replaces 09443-15026.

09443-15026-XC0

Unavailable

4

BOLT This part replaces 42341-38A00.

42341-38B01

$13.67

5

CAP

43575-34500

$1.72

6

NUT This part replaces 08310-22108.

08310-00107

$2.19

7

PEDAL ASSY, BRAKE

43100-38A00

Unavailable

8

ARM, BRAKE ROD

43120-38A00

Unavailable

9

CAP This part replaces 43135-07A00.

43135-07A02

Unavailable

10

PIN This part replaces 04111-30308.

04111-3030A

$1.49

11

SPRING

09443-13018

$3.23

12

BOLT, SPRING

43256-38A00

Unavailable

13

BOLT This part replaces 01107-06208.

01500-06207

$2.28

14

.NUT This part replaces 08310-11068.

08310-00067

$2.13

15

LINK, BRAKE ROD This part replaces 43230-38A00.

43230-38A02

Unavailable

16

ARM, BRAKE PEDAL LINK NO.1

43260-38A00

Unavailable

17

LINK, BRAKE ROD NO.2

43270-38A00

Unavailable

18

ARM, BRAKE PEDAL LINK NO.2

43280-38A00

Unavailable

19

PLATE, BRAKE PEDAL ARM

43285-38A00

Unavailable

20

PIN

09200-08055

$3.50

21

WASHER This part replaces 08322-11088.

08322-01087

$2.13

22

WASHER This part replaces 09160-16015.

09160-16043

$2.12

23

WASHER

09160-17036

Unavailable

24

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49

25

SEAL

09284-17002

Unavailable

26

BRACKET, BRAKE ROD ARM COVER

43290-38A00

Unavailable

27

COVER, BRAKE ROD ARM

43295-38A00

Unavailable

28

COVER, BRAKE ROD ARM INNER

43250-38A00

Unavailable

29

GROMMET, BRAKE COVER

43255-38A00

Unavailable

30

BOLT This part replaces 01107-06108.

01500-06107

$2.06

31

LOCK WASHER This part replaces 08321-21067.

08321-01067

$2.13

32

BOLT, UPPER

01547-06107

$1.65

33

SCREW (6X10) | LEPG,MODEL H.NO.115899~ This part replaces 09128-06004.

09128-06044

$1.49

34

ROD ASSY, REAR BRAKE | Includes Item(s) 35 - 40

43300-38A01

Unavailable

35

SPRING

09440-09004

$2.20

36

.PIN (13X18) This part replaces 09209-13005.

09209-13018

$3.42

37

.NUT This part replaces 09150-06009.

09150-06010

$3.10

38

PIN

09200-08056

Unavailable

39

WASHER This part replaces 08322-11088.

08322-01087

$2.13

40

COTTER PIN | LEPG,MODEL HPG F.NO.115899~ This part replaces 04111-20208.

04111-2020A

$1.49
