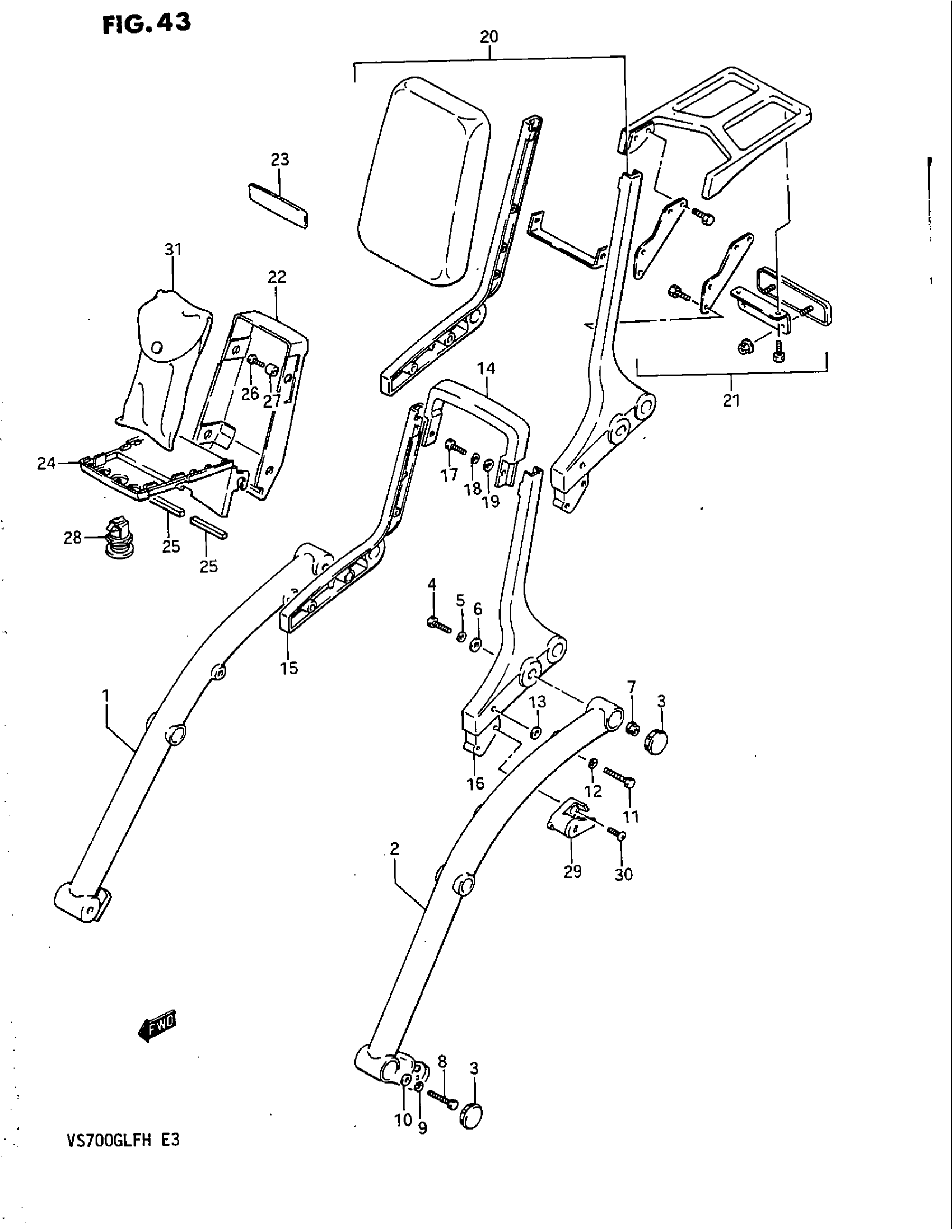

Suzuki VS700GLEF (1987) PILLION RIDER HANDLE Diagram

#

Description
Price

1

GRIP, FRAME HANDLE RH | MODEL G This part replaces 41610-38A10.

41610-38A20

Unavailable

1

GRIP, FRAME HANDLE RH | MODEL H This part replaces 41610-38A30.

41610-38A20

Unavailable

2

GRIP, FRAME HANDLE LH | MODEL G This part replaces 41620-38A10.

41620-38A20

Unavailable

2

GRIP, FRAME HANDLE LH | MODEL H This part replaces 41620-38A30.

41620-38A20

Unavailable

3

CAP

95672-24A00

$5.83

4

BOLT, REAR This part replaces 01107-08207.

01500-08207

$2.53

5

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

6

WASHER This part replaces 08322-21088.

08322-01087

$2.13

7

NUT (CHROME) This part replaces 08316-16086.

08316-10087

$2.26

8

BOLT This part replaces 01107-06356.

01500-0635A

$2.19

9

LOCK WASHER This part replaces 08321-21066.

08321-0106A

$1.84

10

.WASHER This part replaces 08322-21066.

08322-0106B

$2.26

11

BOLT This part replaces 01107-08506.

01500-0850B

$3.77

12

LOCK WASHER This part replaces 08321-21086.

08321-0108A

$1.84

13

WASHER This part replaces 08322-21086.

08322-0108A

$1.92

14

NO DESCRIPTION AVAILABLE This part replaces 46211-38A00.

46211-38A01

Unavailable

15

HANDLE,PILLION This part replaces 46212-38A01.

46212-38A02

Unavailable

16

HANDLE,PILLION This part replaces 46213-38A01.

46213-38A02

Unavailable

17

BOLT, CANISTER This part replaces 01107-06167.

01500-06167

$1.97

18

LOCK WASHER This part replaces 08321-21067.

08321-01067

$2.13

19

WASHER This part replaces 08322-21067.

08322-01067

$2.13

20

HANDLE SET, PILLION RIDER | OPT

46200-38811

Unavailable

21

CARRIER ASSY, SPORT | OPT

46310-38A10

Unavailable

22

HOLDER, TOOL REAR | MODEL GOTHER THAN CALIFORNIA This part replaces 47430-38A00.

47430-38A01

Unavailable

22

HOLDER, TOOL REAR | MODEL H

47430-38A01

Unavailable

22

HOLDER, TOOL REAR | CALIFORNIA ONLY,VS700GLFG/GLPG This part replaces 47430-38A10.

47430-38A01

Unavailable

22

HOLDER, TOOL REAR | CALIFORNIA ONLY,VS700GLEFG/GLEPG,MODEL H This part replaces 47430-38A12.

47430-38A01

Unavailable

23

EMBLEM, REAR | MODEL H

68261-38B00

Unavailable

24

HOLDER, TOOL FRONT

47440-38A01

Unavailable

25

CUSHION, TOOL HOLDER

47451-38A01

$4.43

26

.SCREW This part replaces 02142-05126.

02142-0512A

$1.49

27

SPACER

09180-05023

Unavailable

28

LOCK SET, TOOL HOLDER This part replaces 95700-24830.

95700-24831

$71.38

29

LOCK SET, HELMET | MODEL G This part replaces 95700-38A00-KEY.

95700-38821

$66.87

29

LOCK SET, HELMET | MODEL H This part replaces 95700-38820.

95700-38821

$66.87

30

SCREW This part replaces 02112-05128.

02112-05127

$1.97

31

TOOL ASSY This part replaces 09800-00296.

09800-21068

Unavailable
