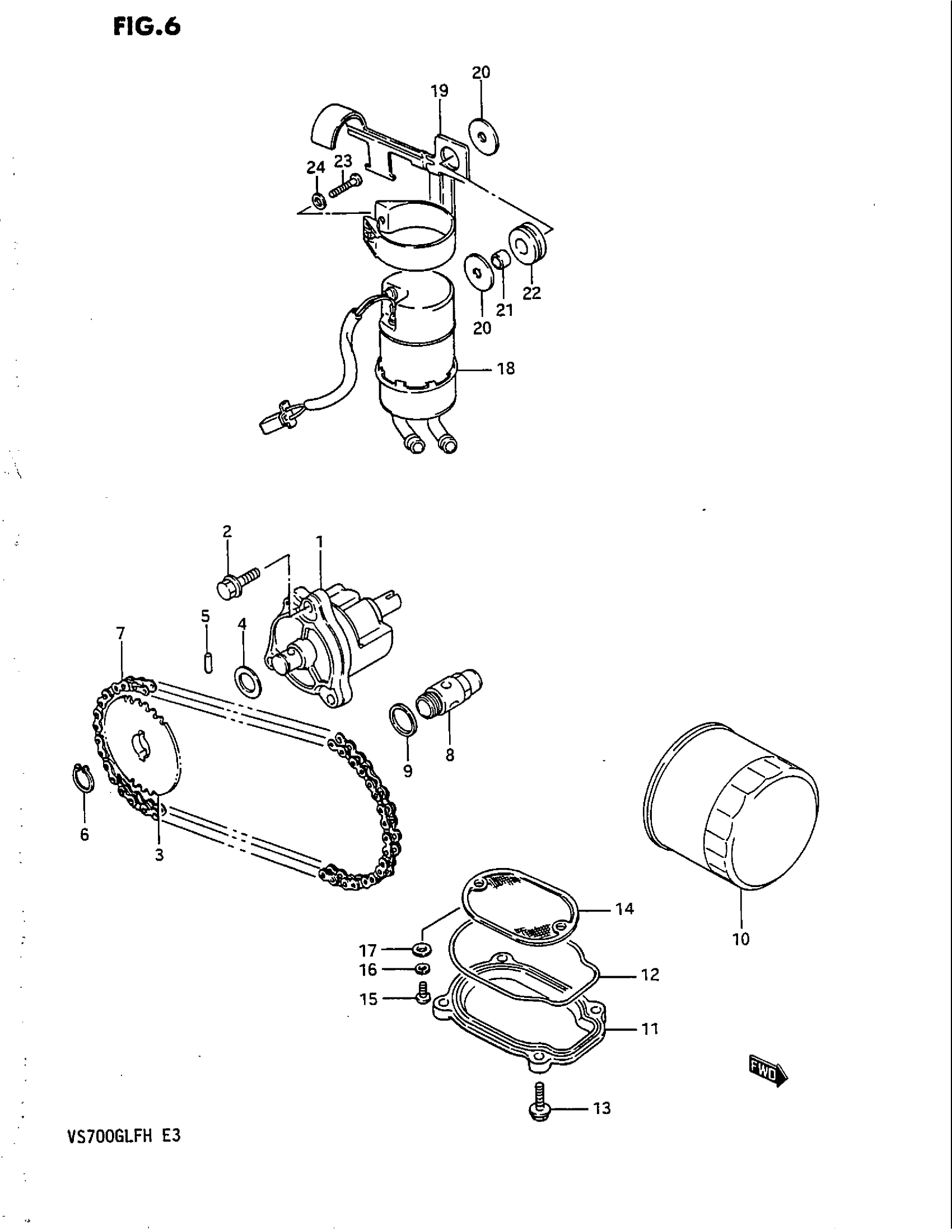

Suzuki VS700GLEF (1987) OIL PUMP - FUEL PUMP Diagram

#

Description
Price

1

PUMP ASSY, OIL This part replaces 16400-38A00.

16400-38A01

$224.88

2

BOLT This part replaces 01517-06258.

01550-06257

$2.30

3

SPROCKET, OIL PUMP DRIVEN

16331-38A00

Unavailable

4

WASHER

08221-12205

$2.30

5

PIN

09261-05006

$1.49

6

CIRCLIP This part replaces 08331-31128.

08331-3112A

$1.78

7

CHAIN, OIL PUMP DRIVE

16310-38A00

$33.93

8

VALVE ASSY, OIL RELIEF | MODEL G This part replaces 16440-24A00.

16440-24A01

Unavailable

8

VALVE ASSY, OIL RELIEF | MODEL H

16440-24A01

Unavailable

9

GASKET

09168-16002

$1.91

10

FILTER, ENGINE OIL | MODEL G

16510-05A00

$23.30

10

FILTER, ENGINE OIL | MODEL H This part replaces 16510-06B00.

16510-07J00

$13.10

11

CAP, OIL STRAINER

16523-38A00

$31.70

12

O RING

16528-38A00

$11.77

13

BOLT This part replaces 01517-06208.

01550-06207

$2.30

14

STRAINER, OIL

16520-38A00

$8.12

15

SCREW This part replaces 02112-05126.

02112-0512A

$1.49

16

LOCK WASHER This part replaces 08321-21056.

08321-0105A

$1.84

17

WASHER, FRONT This part replaces 08322-21056.

08322-0105A

$1.84

18

PUMP ASSY,FUEL | MODEL G This part replaces 15100-38A00.

15100-38A01

$236.61

18

PUMP ASSY,FUEL | MODEL H This part replaces 15100-38A10.

15100-38A11

Unavailable

19

NO DESCRIPTION AVAILABLE | MODEL G This part replaces 15110-38A01.

15110-38A02

Unavailable

19

BRACKET, FUEL PUMP | MODEL H

15110-38A10

$15.42

20

WASHER, FRONT This part replaces 09160-06004.

09160-06134

$1.91

21

SPACER

09180-06082

$2.18

22

CUSHION

09320-10014

$2.92

23

SCREW This part replaces 02112-04208.

02112-0420A

$1.49

24

WASHER This part replaces 08322-21048.

08322-01047

$1.86
