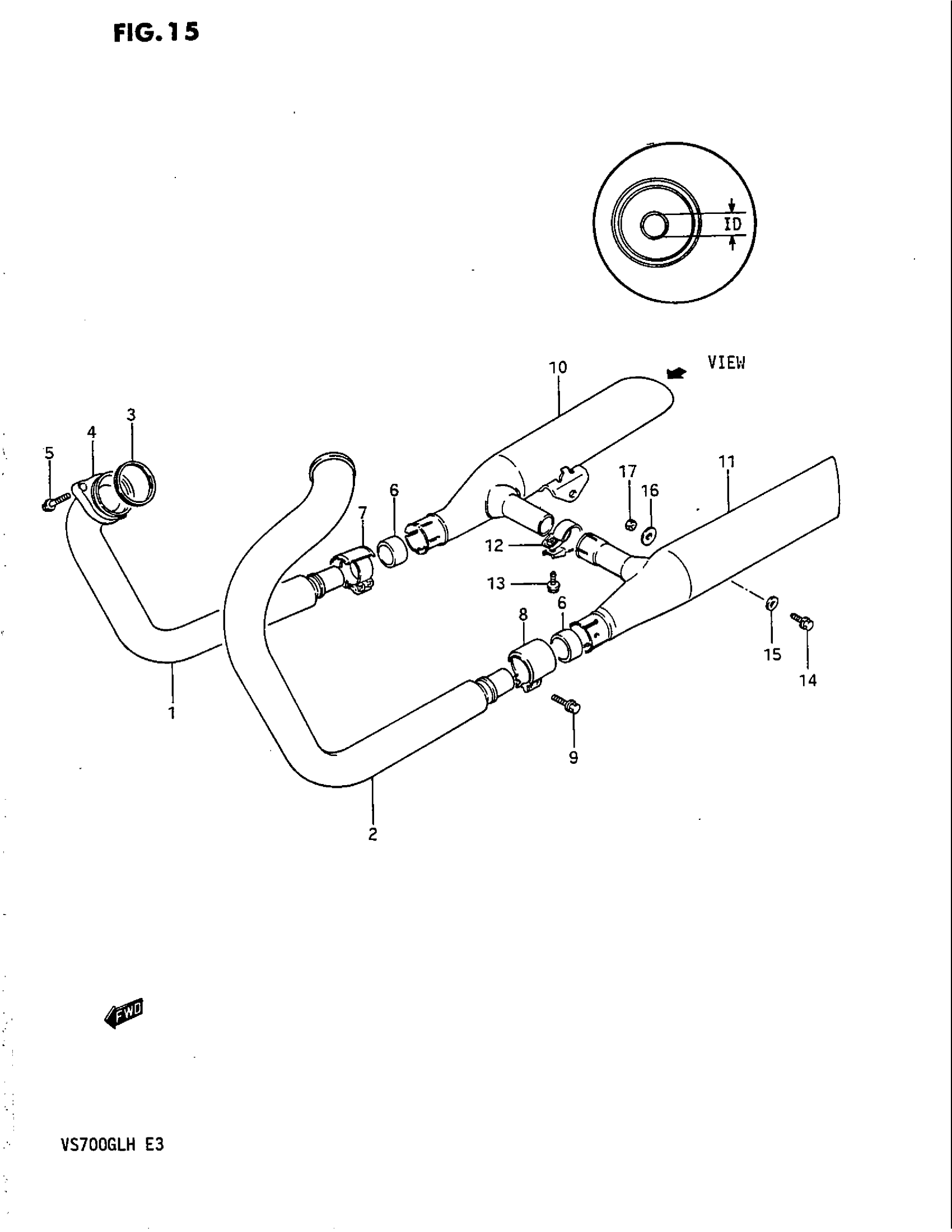

Suzuki VS700GLEF (1987) MUFFLER Diagram

#

Description
Price

1

PIPE, EXHAUST RH This part replaces 14150-38A00.

14150-38A01

$307.15

2

PIPE, EXHAUST LH | MODEL G This part replaces 14160-38A00.

14160-38A02

$318.75

2

PIPE, EXHAUST LH | MODEL H This part replaces 14160-38A01.

14160-38A02

$318.75

3

GASKET, EXHAUST PIPE This part replaces 14181-38A00.

14181-45C00

$7.38

4

CLAMP, EXHAUST PIPE This part replaces 14182-38A00.

14182-38A02

$42.45

5

BOLT

09104-08026

$3.76

6

CONNECTOR, MUFFLER This part replaces 14771-05A01.

14771-05A02

$27.57

7

CLAMP, MUFFLER CONNECTOR RH

14459-38A00

$14.85

8

CLAMP, MUFFLER CONNECTOR LH

14469-38A00

$14.85

9

BOLT

01547-06307

$2.03

10

MUFFLER, RH | ID:19,MODEL G This part replaces 14310-38A20-H01.

14310-38A72-H01

Unavailable

10

MUFFLER, RH | ID:15.1,MODEL G/H This part replaces 14310-38A70-H01.

14310-38A72-H01

Unavailable

11

MUFFLER, LH | ID:19,MODEL G This part replaces 14340-38A20-H01.

14340-38A72-H01

Unavailable

11

MUFFLER, LH | ID:15.1,MODEL G/H This part replaces 14340-38A70-H01.

14340-38A72-H01

Unavailable

12

CLAMP, EXHAUST COUPLER This part replaces 14772-34200.

14772-38B00

$9.37

13

BOLT This part replaces 01517-06258.

01550-06257

$2.30

14

BOLT This part replaces 01107-08307.

01500-08307

$3.04

15

WASHER This part replaces 08322-11088.

08322-01087

$2.13

16

WASHER (8.5X26X1.6) This part replaces 09160-08005.

09160-08134

$2.03

17

NUT This part replaces 08316-26088.

08316-20087

$2.77
