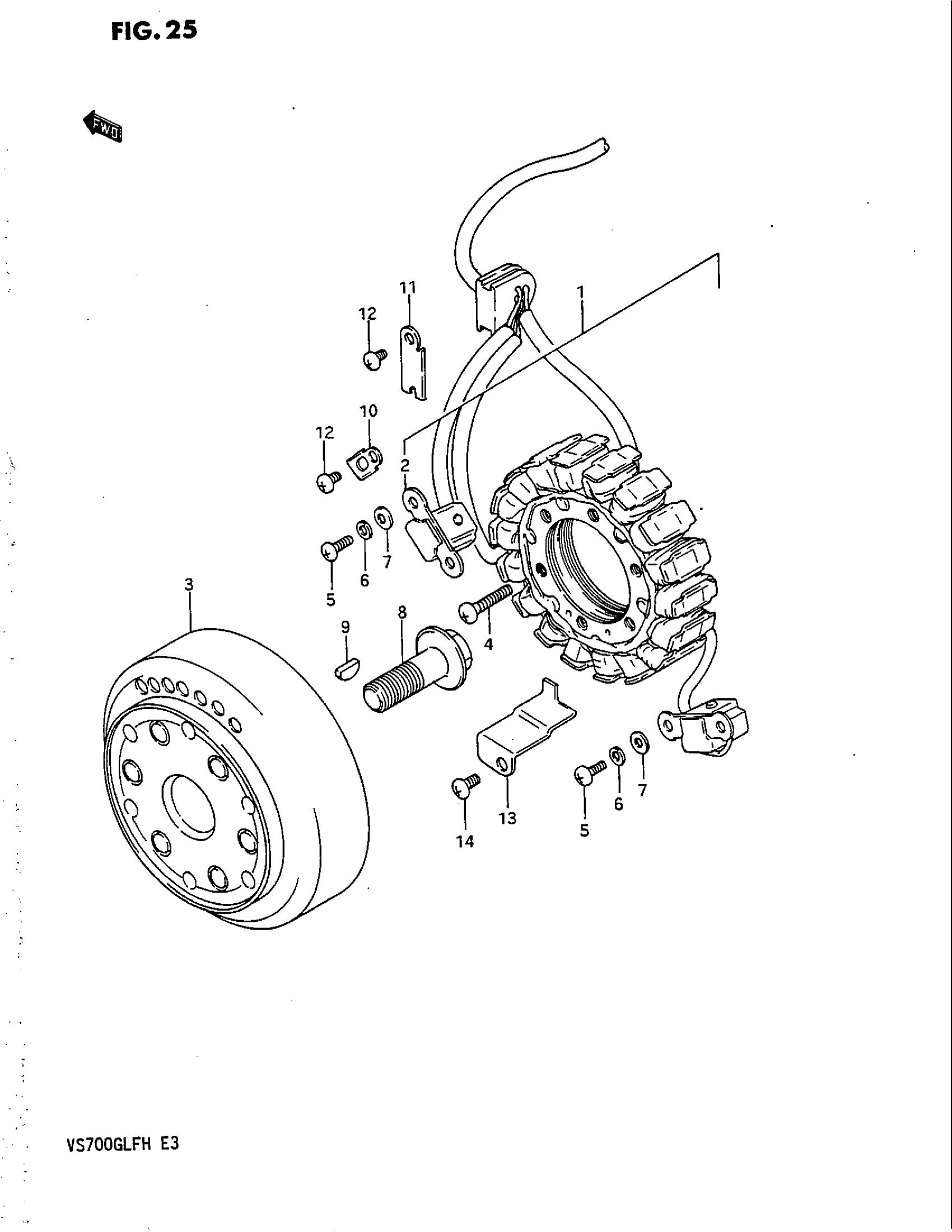

Suzuki VS700GLEF (1987) MAGNETO Diagram

#

Description
Price

1

STATOR | Includes Item(s) 2

32101-38A00

Unavailable

2

SENSOR, TIMING

32160-38A00

Unavailable

3

ROTOR

32102-38A00

Unavailable

4

SCREW This part replaces 02112-06308.

02112-06307

$1.97

5

SCREW This part replaces 02112-05128.

02112-05127

$1.97

6

WASHER This part replaces 08322-21057.

08322-01057

$2.13

7

LOCK WASHER This part replaces 08321-21057.

08321-0105A

$1.84

8

BOLT

09103-14001

$11.82

9

KEY This part replaces 08341-31049.

09420-04008

$3.42

10

CLAMP

31497-45000

$1.92

11

CLAMP

32371-38A10

Unavailable

12

SCREW This part replaces 02112-05088.

02112-05087

$1.49

13

CLAMP This part replaces 32371-38A20.

32371-45C00

$4.58

14

SCREW This part replaces 02112-06108.

02112-06107

$1.49
