Description

Price

1

HEADLAMP ASSY | Includes Item(s) 2 - 15 This part replaces 35100-38A30-999.

35100-38A62-999

$274.73

2

UNIT, LAMP

35121-38A30

Unavailable

3

RIM

35111-38A00

$46.22

4

RING, MOUNTING

35130-38A00

$26.95

5

COVER, SOCKET

35173-38A00

$16.87

6

SCREW

09125-05102

$1.61

7

WASHER (5.5X18X1) This part replaces 35138-45230.

09160-05045

$1.93

8

SPACER

35133-45230

$3.30

9

CUSHION

35139-45230

$1.98

10

NUT

35155-48510

$2.28

11

CLAMP (L:60) This part replaces 09404-05401.

09404-06429

$1.83

12

SCREW This part replaces 35151-49430.

09125-04020

$2.53

13

SPRING, HEADLAMP ADJUST This part replaces 35154-49430.

35154-31300

$3.70

14

NUT

35135-45600

$3.65

15

SOCKET

36853-38A00

$13.92

16

BULB (12V,60/55W)

09471-12060

$25.15

17

SCREW This part replaces 02142-05128.

02142-05127

$1.97

18

REFLEX REFLECTOR, FRONT SIDE

35950-43431

$17.83

19

NUT This part replaces 08316-16056.

08316-1005A

$2.19

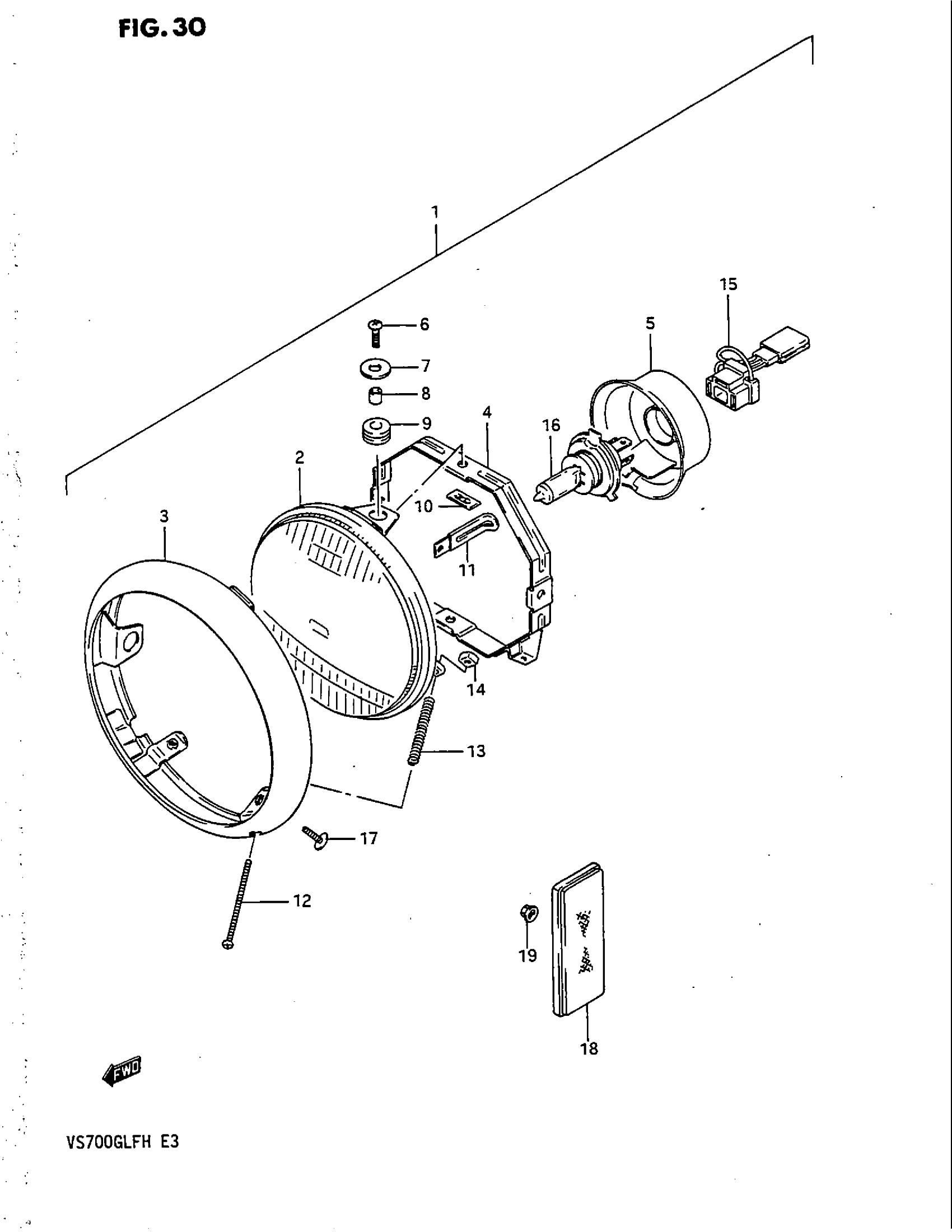

Suzuki VS700GLEF (1987) HEADLAMP Diagram
