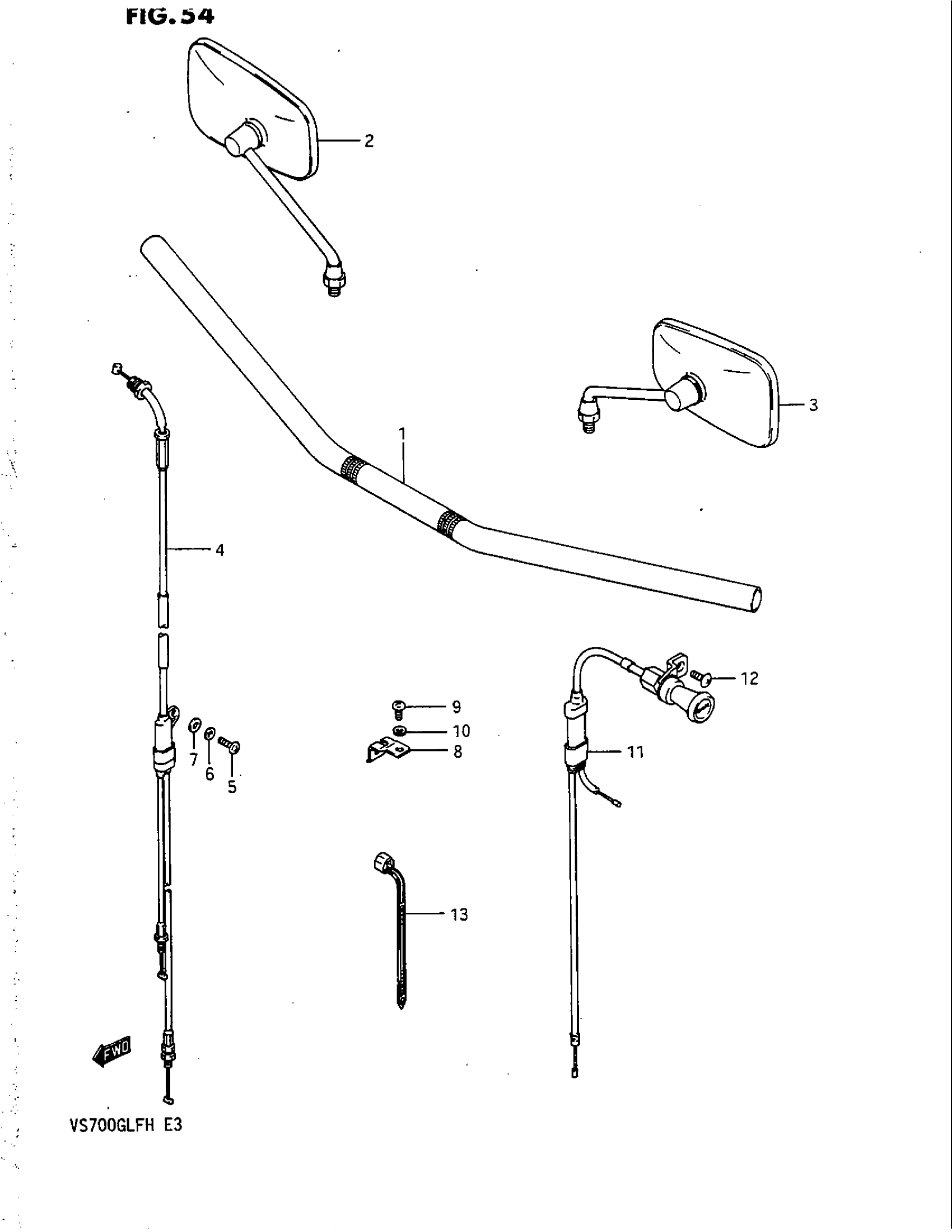

Suzuki VS700GLEF (1987) HANDLEBAR - CONTROL CABLE (VS700GLFG/GLEFG/GLFH/GLEFH) Diagram

#

Description

Price

1

NO DESCRIPTION AVAILABLE This part replaces 56111-38A00.

56111-38A20

Unavailable

2

MIRROR ASSY, RH

56500-38A30

Unavailable

3

MIRROR ASSY, LH

56600-38A30

Unavailable

4

CABLE ASSY, THR This part replaces 58300-38A00.

58300-38A01

Unavailable

5

SCREW, THROTTLE CABLE

02112-05107

$1.49

6

LOCK WASHER This part replaces 08321-21057.

08321-0105A

$1.84

7

WASHER This part replaces 08322-21058.

08322-01057

$2.13

8

CLAMP, THROTTLE CABLE

58621-38A00

$6.38

9

SCREW

02112-05107

$1.49

10

LOCK WASHER This part replaces 08321-21057.

08321-0105A

$1.84

11

CABLE ASSY,STAR This part replaces 58400-38A00.

58400-38A02

Unavailable

12

STOPPER, CL RLSE CAM SHAFT This part replaces 02142-06104.

02142-0610A

$1.49

13

CLAMP | EPG/GLPH/GLEPH

09407-14403

$2.26
