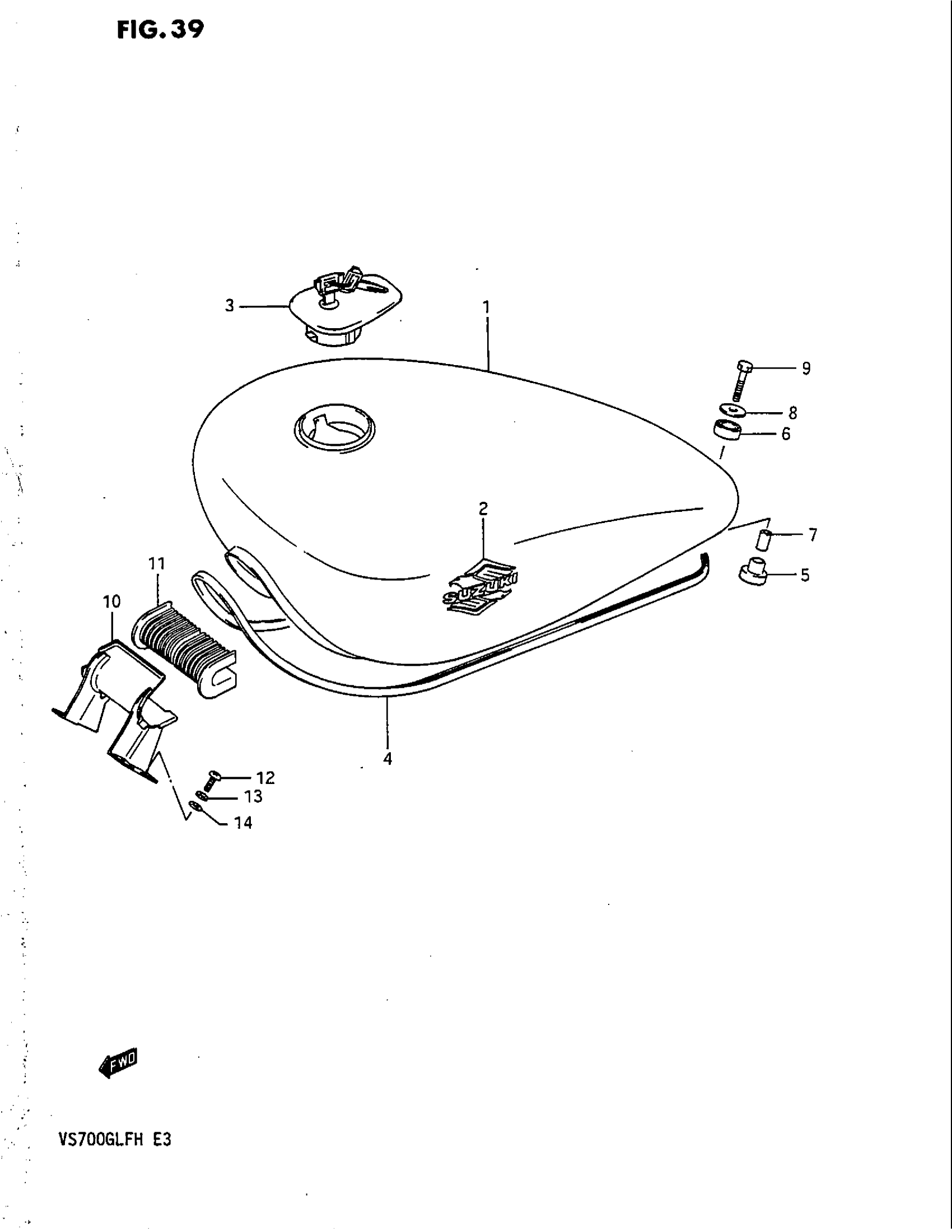

Suzuki VS700GLEF (1987) FUEL TANK Diagram

#

Description
Price

1

TANK ASSY,FUEL | MODEL GOTHER THAN CALIFORNIA This part replaces 44100-38A00-24D.

44110-38A22-YD8

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL GCALIFORNIA ONLY This part replaces 44100-38A10-24D.

44110-38A12-YD8

Unavailable

1

TANK ASSY,FUEL | MODEL GOTHER THAN CALIFORNIA This part replaces 44100-38A00-019.

44110-38A22-YD8

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL GCALIFORNIA ONLY This part replaces 44100-38A10-019.

44110-38A12-YD8

Unavailable

1

TANK ASSY,FUEL | MODEL HOTHER THAN CALIFORNIA This part replaces 44100-38A00-13Z.

44110-38A22-YD8

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL HCALIFORNIA ONLY This part replaces 44100-38A10-13Z.

44110-38A12-YD8

Unavailable

1

TANK ASSY,FUEL | MODEL HOTHER THAN CALIFORNIA This part replaces 44100-38A00-24V.

44110-38A22-YD8

Unavailable

1

(CA)TANK ASSY, FUEL (BLUE) | MODEL HCALIFORNIA ONLY

44100-38A10-24V

Unavailable

1

TANK ASSY,FUEL | MODEL HOTHER THAN CALIFORNIA This part replaces 44100-38A00-33D.

44110-38A22-YD8

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL HCALIFORNIA ONLY; Includes Item(s) 2 - 2 This part replaces 44100-38A10-33D.

44110-38A12-YD8

Unavailable

2

EMBLEM (RED) | MODEL G,FOR 24D

68111-38A00-22Z

Unavailable

2

EMBLEM (BLACK) | FOR 019,13Z

68111-38A00-23A

Unavailable

2

EMBLEM (BLUE) | MODEL H,FOR 24V

68111-38A00-24W

Unavailable

2

EMBLEM (RED) | MODEL H,FOR 33D This part replaces 68111-38A00-34G.

68111-38A00-22Z

Unavailable

3

CAP SET, FUEL TANK | OTHER THAN CALIFORNIA This part replaces 44200-38A00-KEY.

44200-38820

$108.83

3

CAP SET,FUEL TA | CALIFORNIA ONLY This part replaces 44200-38A10-KEY.

44200-38852

$94.71

3

CAP SET, FUEL TANK | OPT This part replaces 44200-38A80-KEY.

44200-38860

Unavailable

3

CAP SET, FUEL TANK | OPT This part replaces 44200-38A90-KEY.

44200-38870

Unavailable

4

MOLDING This part replaces 68241-38A00.

68241-04X50-00B

$27.30

5

CUSHION (9X24X18) This part replaces 09320-10020.

09320-10071

$2.60

6

CUSHION, REAR

09320-14013

$2.11

7

SPACER This part replaces 09180-06091.

09180-06273

$3.05

8

WASHER, 6.5X24X1.6 This part replaces 09160-06072.

09160-06501

$1.86

9

BOLT This part replaces 09128-06055.

01500-0635A

$2.19

10

BRACKET, FRONT (BLACK) | MODEL G This part replaces 44250-38A01-24D.

44250-38A01-019

$44.30

10

BRACKET, FRONT (BLACK)

44250-38A01-019

$44.30

10

BRACKET, FRONT (BLACK) | MODEL H This part replaces 44250-38A01-24V.

44250-38A01-019

$44.30

10

BRACKET, FRONT (BLACK) | MODEL H This part replaces 44250-38A01-33D.

44250-38A01-019

$44.30

11

CUSHION, FRONT

44511-38A01

$11.60

12

SCREW This part replaces 02142-06164.

02142-0616A

$1.49

13

LOCK WASHER This part replaces 08321-21064.

08321-0106A

$1.84

14

.WASHER This part replaces 08322-21064.

08322-0106B

$2.26
