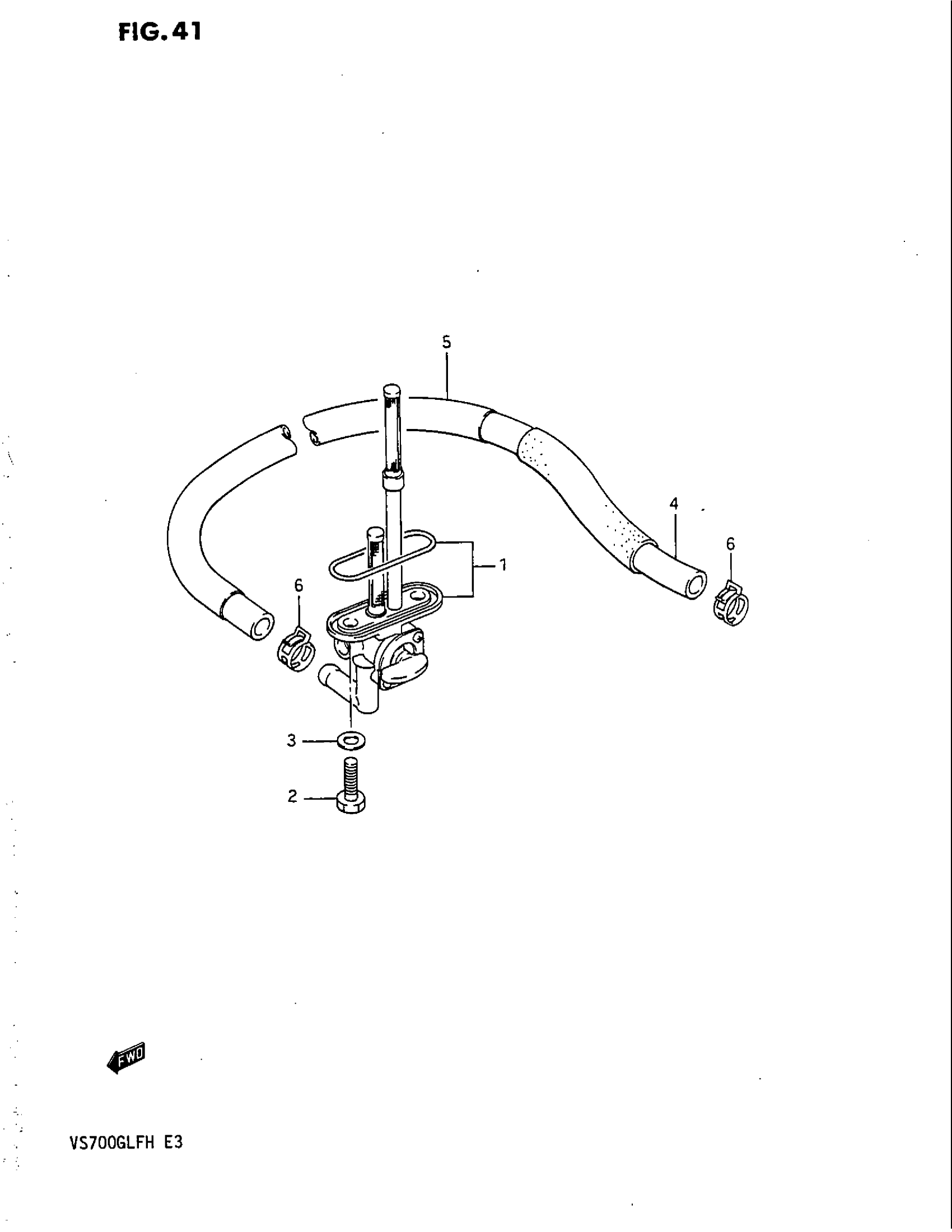

Suzuki VS700GLEF (1987) FUEL COCK Diagram

#

Description

Price

1

COCK ASSY,FUEL | MODEL G This part replaces 44300-38A70.

44300-38A73

$186.53

1

COCK ASSY,FUEL | MODEL H This part replaces 44300-38A71.

44300-38A73

$186.53

2

BOLT

09128-06057

$1.65

3

GASKET (5.8X13X1.2) This part replaces 09168-06010.

09168-06023

$2.35

4

HOSE FUEL PUMP This part replaces 44320-38A02.

44320-38AR0

$14.12

5

TUBE, FUEL HOSE This part replaces 44311-38A00.

44311-38A01

$14.26

6

CLIP This part replaces 09401-12406.

09401-11415

$2.23
