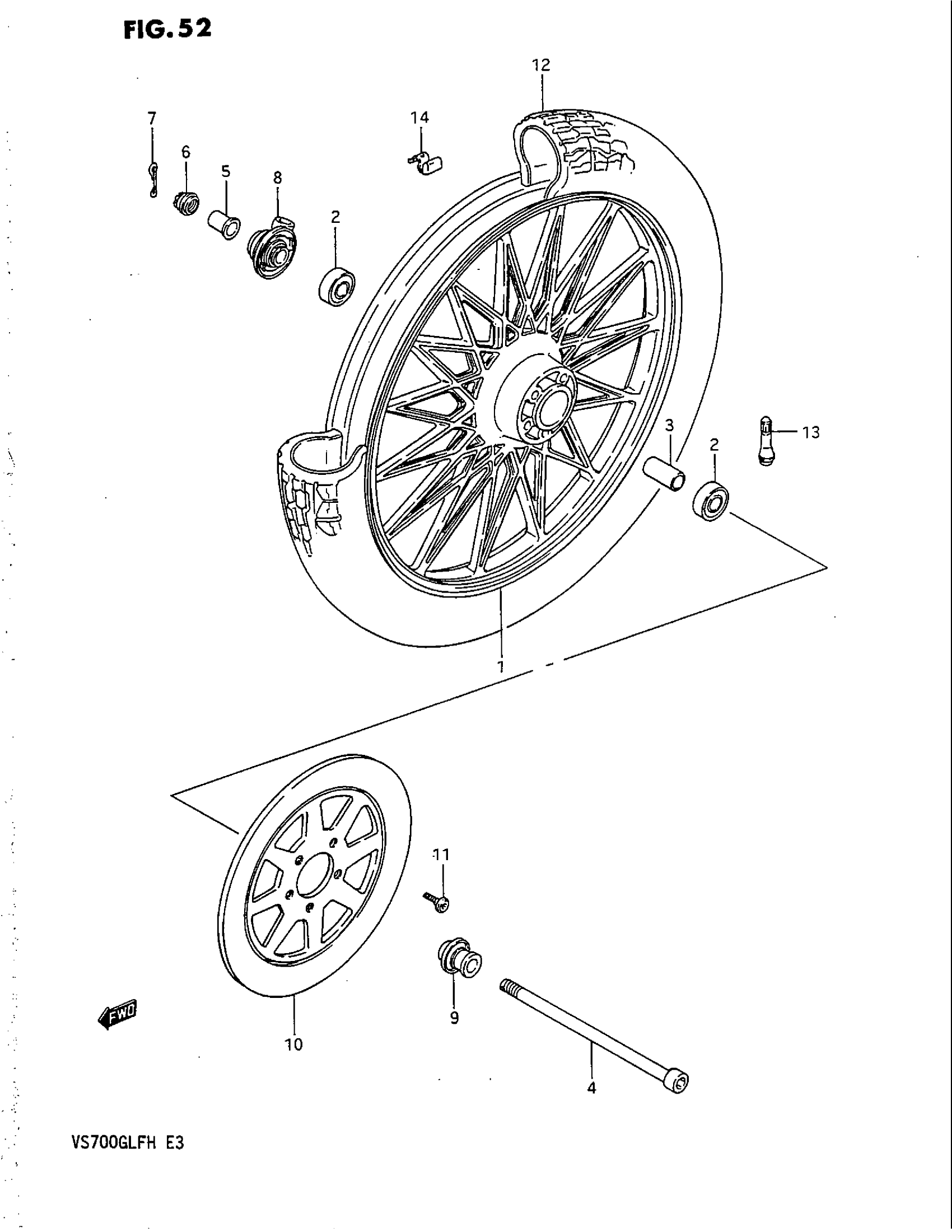

Suzuki VS700GLEF (1987) FRONT WHEEL (VS700GLEFG/GLEPG) Diagram

#

Description
Price

1

HUB ASSY, FRONT (MT2.15X19) | SILVER

54111-38A10-23W

Unavailable

2

BEARING This part replaces 08123-63027.

08123-6302B

$22.74

3

SPACER, HUB BEARING

09180-15004

$10.27

4

AXLE, FRONT

54711-38A01

Unavailable

5

SPACER, AXLE RH

54741-38A00

Unavailable

6

NUT

09159-12021

Unavailable

7

COTTER PIN

54791-38A00

Unavailable

8

BOX ASSY, SPEEDOMETER GEAR

54600-49260

Unavailable

9

SPACER, AXLE LH

54750-38A20

Unavailable

10

DISC, FRONT BRAKE

59211-38A10

Unavailable

11

BOLT

09106-08049

$4.62

12

TIRE, FRONT (100/90/19 57H) | BS

55100-38A20

Unavailable

13

VALVE ASSY, WHEEL RIM This part replaces 43130-75150.

43130-78030

$9.25

14

BALANCER (10G) This part replaces 55411-00A00-23W.

55411-00A00

$1.49

14

BALANCER, WHEEL NO.2 This part replaces 55412-00A00-23W.

55412-17G00

$7.05

14

BALANCER (30G) | GLEPH This part replaces 55413-00A00-23W.

55413-00A01

Unavailable
