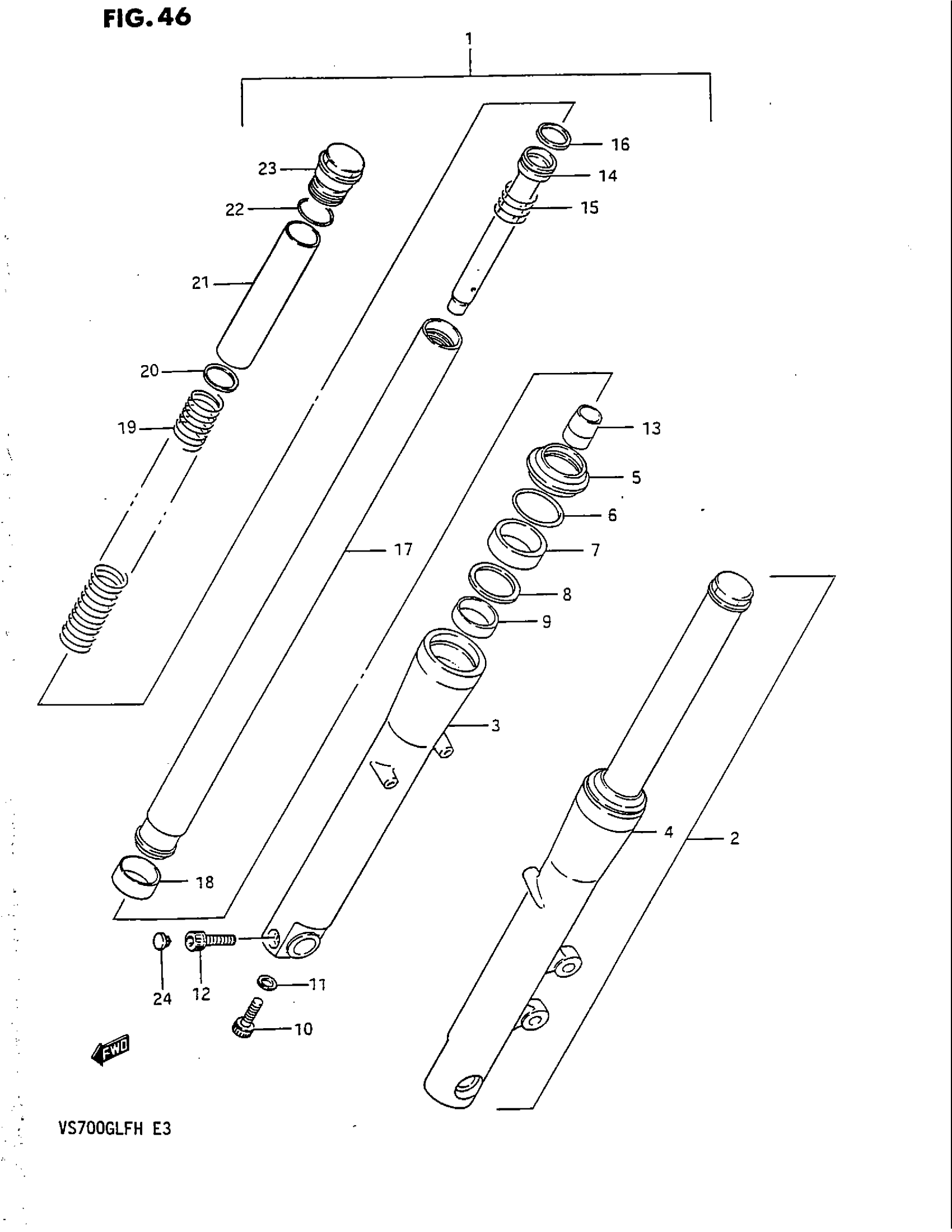

Suzuki VS700GLEF (1987) FRONT FORK (MODEL H) Diagram

#

Description
Price

1

DAMPER ASSY, RH

51103-38A40

Unavailable

2

DAMPER ASSY, LH | Includes Item(s) 3 - 23

51104-38A40

Unavailable

3

OUTER TUBE, RH

51131-38A40

Unavailable

4

OUTER TUBE, LH

51141-38A40

Unavailable

5

SEAL, DUST This part replaces 51571-43530.

51173-25D00

$19.35

6

CIRCLIP INTERNAL This part replaces 51556-34210.

51556-34320

Unavailable

7

SEAL, OIL This part replaces 51153-09310.

51153-03B30

$18.51

8

SPACER, SEAL

51168-38A00

$6.72

9

BUSH, GUIDE

51152-31300

Unavailable

10

BOLT

51147-48130

$4.34

11

GASKET (8.2X13X1.5)

51148-36011

$3.56

12

BOLT This part replaces 07110-08358.

07130-08357

$3.18

13

PIECE, OIL LOCK

51195-43530

$20.32

14

CYLINDER

51146-38A00

Unavailable

15

SPRING

51177-38A00

Unavailable

16

RING, PISTON

51196-38A00

Unavailable

17

INNER TUBE

51110-38A00

Unavailable

18

PISTON

51121-38A00

Unavailable

19

SPRING

51171-38A40

Unavailable

20

WASHER, JOINT UPPER This part replaces 51172-34A00.

51172-34370

$3.37

21

SPACER, SPRING

51176-38A40

Unavailable

22

O RING

51117-45200

Unavailable

23

CAP

51351-38A02

Unavailable

24

CAP, OUTER TUBE RH

09250-06009

$3.42
