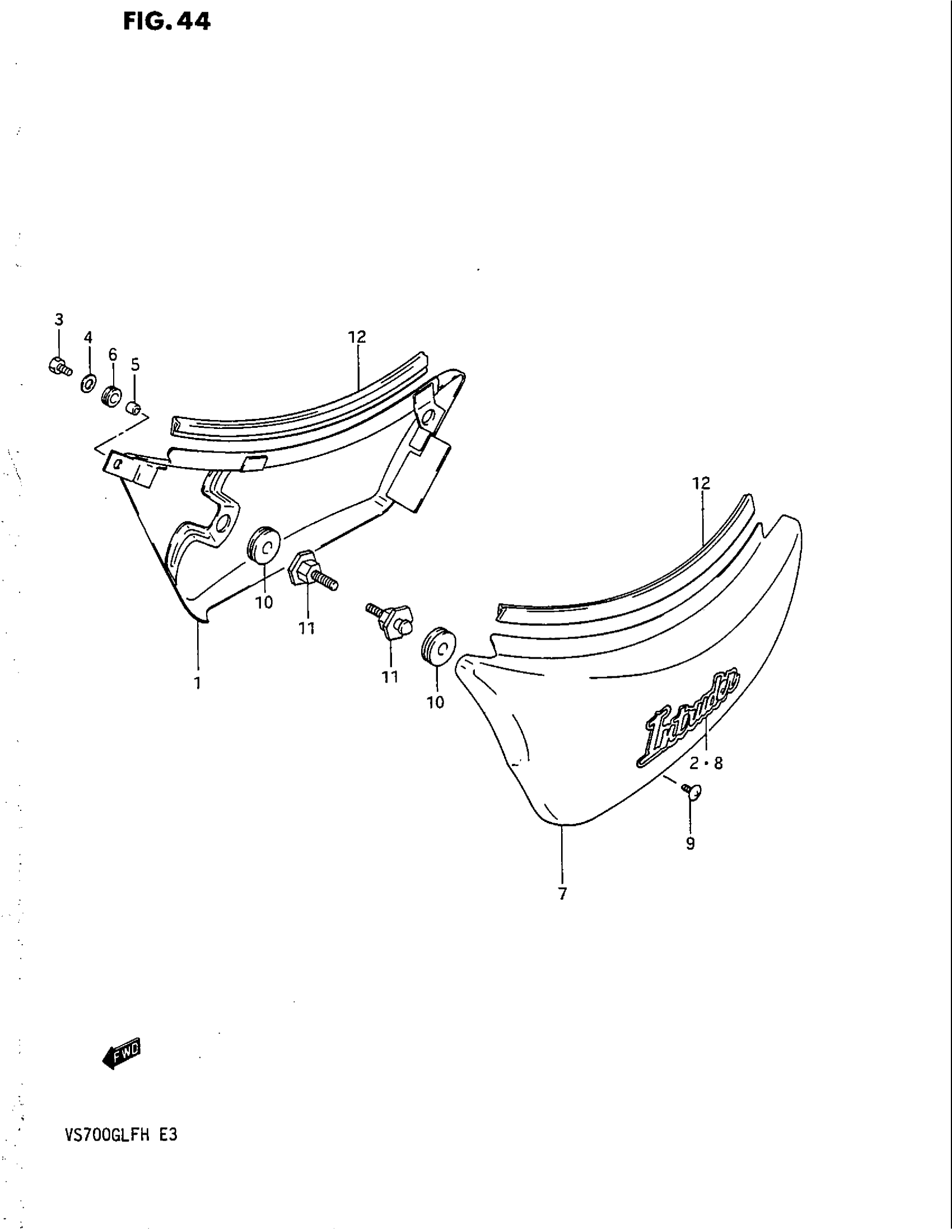

Suzuki VS700GLEF (1987) FRAME COVER Diagram

#

Description
Price

1

COVER ASSY,FRAM | MODEL G This part replaces 47110-38A00-24D.

47110-38A00-13L

$305.78

1

COVER ASSY,FRAM | MODEL G This part replaces 47110-38A00-019.

47110-38A00-13L

$305.78

1

COVER ASSY,FRAM | MODEL H This part replaces 47110-38A00-13Z.

47110-38A00-13L

$305.78

1

COVER ASSY,FRAM | MODEL H This part replaces 47110-38A00-24V.

47110-38A00-13L

$305.78

1

COVER ASSY,FRAM | MODEL H; Includes Item(s) 2 - 2 This part replaces 47110-38A00-33D.

47110-38A00-13L

$305.78

2

EMBLEM | MODEL G FOR 24D

68131-38A00-7VG

Unavailable

2

EMBLEM | FOR 019,13Z

68131-38A00-7VH

Unavailable

2

EMBLEM | MODEL H,FOR 24V

68131-38A00-7VJ

Unavailable

2

EMBLEM | MODEL H,FOR 33D

68131-38A00-9EY

Unavailable

3

BOLT, RH

01204-06167

$1.98

4

WASHER

09160-06084

$1.78

5

SPACER This part replaces 09180-06032.

09180-06246

$2.12

6

CUSHION (8X18X5.8) This part replaces 09320-06017.

09320-08516

$2.45

7

COVER ASSY,FRAM | MODEL G This part replaces 47210-38A00-24D.

47210-38A00-13L

$276.22

7

COVER ASSY,FRAM | MODEL G This part replaces 47210-38A00-019.

47210-38A00-13L

$276.22

7

COVER ASSY,FRAM | MODEL H This part replaces 47210-38A00-13Z.

47210-38A00-13L

$276.22

7

COVER ASSY,FRAM | MODEL H This part replaces 47210-38A00-24V.

47210-38A00-13L

$276.22

7

COVER ASSY,FRAM | MODEL H; Includes Item(s) 8 - 8 This part replaces 47210-38A00-33D.

47210-38A00-13L

$276.22

8

EMBLEM | MODEL G FOR 24D

68131-38A00-7VG

Unavailable

8

EMBLEM | FOR 019,13Z

68131-38A00-7VH

Unavailable

8

EMBLEM | MODEL H,FOR 24V

68131-38A00-7VJ

Unavailable

8

EMBLEM | MODEL H,FOR 33D

68131-38A00-9EY

Unavailable

9

STOPPER, CL RLSE CAM SHAFT This part replaces 02142-06104.

02142-0610A

$1.49

10

CUSHION (8X22X7) This part replaces 09320-08013.

09320-08509

$1.93

11

BOSS, FRAME COVER

47250-38A01

$6.68

12

MOLDING, FRONT This part replaces 47218-38A00.

68241-04X50-300

$7.32
