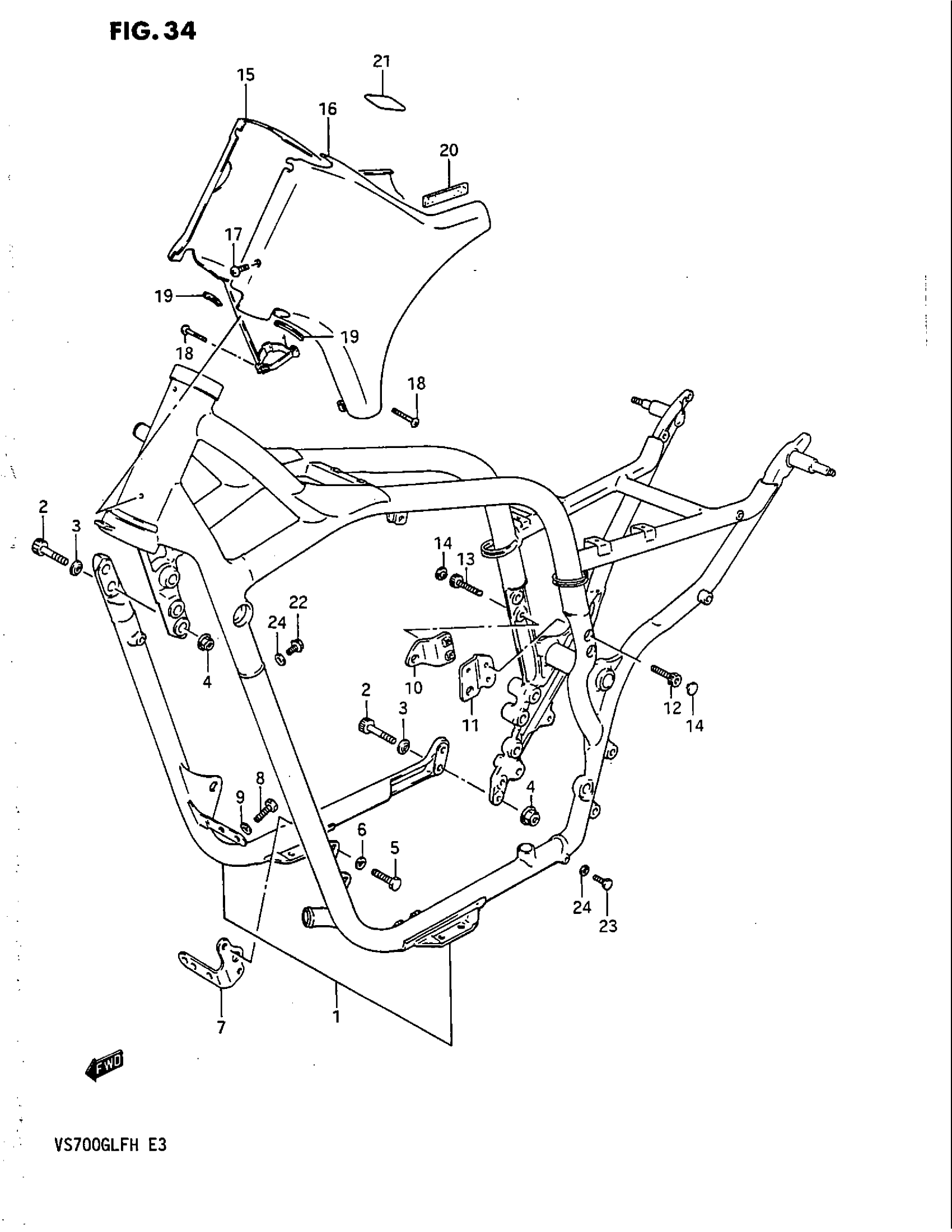

Suzuki VS700GLEF (1987) FRAME Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | VS700GLFG/GLPG ~F.NO.115898 This part replaces 41100-38810-24D.

41100-38811-24D

Unavailable

1

NO DESCRIPTION AVAILABLE | VS700GLFG/GLPG ~F.NO.115898 This part replaces 41100-38810-019.

41100-38811-019

Unavailable

1

FRAME SET (MAROON) | VS700GLEFG/GLEPGVS700GLFG/GLPG F.NO.115899~

41100-38840-24D

Unavailable

1

FRAME SET (BLACK) | VS700GLEFG/GLEPG,MODEL HVS700GLFG/GLPG F.NO.115899~

41100-38840-019

Unavailable

1

FRAME SET (BLUE) | MODEL H

41100-38840-24V

Unavailable

1

FRAME SET (MAROON) | MODEL H; Includes Item(s) 2 - 4

41100-38840-33D

Unavailable

2

BOLT, REAR

09106-10019

$3.50

3

WASHER This part replaces 09164-10005.

09164-10010

$4.83

4

NUT This part replaces 08319-31105.

08319-3110A

$2.73

5

BOLT This part replaces 01517-08205.

01550-0820A

$2.23

6

LOCK WASHER This part replaces 08321-21084.

08321-0108A

$1.84

7

PLATE, NO.1 LH (MAROON) | MODEL G

41920-38A00-24D

Unavailable

7

PLATE, NO.1 LH (BLACK)

41920-38A00-019

Unavailable

7

PLATE, NO.1 LH (BLUE) | MODEL H

41920-38A00-24V

Unavailable

7

PLATE, NO.1 LH (MAROON) | MODEL H

41920-38A00-33D

Unavailable

8

PLUG, DRAIN This part replaces 01107-08165.

01500-0816B

$2.50

9

LOCK WASHER This part replaces 08321-21084.

08321-0108A

$1.84

10

PLATE, NO.3 RH (MAROON) | VS700GLFG/GLPG ~F.NO.115898

41950-38A00-24D

Unavailable

10

PLATE, NO.3 RH (BLACK) | VS700GLFG/GLPG ~F.NO.115898

41950-38A00-019

Unavailable

10

PLATE, NO.3 RH (MAROON) | VS700GLEFG/GLEPGVS700GLFG/GLPG F.NO.115899~

41950-38A10-24D

Unavailable

10

PLATE, NO.1 LH (BLACK) | VS700GLEFG/GLEPG,MODEL HVS700GLFG/GLPG F.NO.115899~ This part replaces 41950-38A10-019.

41950-38A11-33J

Unavailable

10

PLATE, NO.1 LH (BLACK) | MODEL H This part replaces 41950-38A10-24V.

41950-38A11-33J

Unavailable

10

PLATE, NO.1 LH (BLACK) | MODEL H This part replaces 41950-38A10-33D.

41950-38A11-33J

Unavailable

11

PLATE, NO.3 LH (MAROON) | VS700GLFG/GLPG ~F.NO.115898

41960-38A00-24D

Unavailable

11

PLATE, NO.3 LH (BLACK) | VS700GLFG/GLPG ~F.NO.115898~

41960-38A00-019

Unavailable

11

PLATE, NO.3 LH (MAROON) | VS700GLEFG/GLEPGVS700GLFG/GLPG F.NO.115899~

41960-38A10-24D

Unavailable

11

PLATE, NO.3 LH (BLACK) | VS700GLEFG/GLEPG,MODEL HVS700GLFG/GLPG F.NO.115899~

41960-38A10-019

Unavailable

11

PLATE, NO.3 LH (BLACK) | MODEL H This part replaces 41960-38A10-24V.

41960-38A10-019

Unavailable

11

PLATE, NO.3 LH (BLACK) | MODEL H This part replaces 41960-38A10-33D.

41960-38A10-019

Unavailable

12

BOLT, UPPER

09106-08070

$5.88

13

BOLT, STEERING DAMPER This part replaces 09106-08063.

07130-0830A

$1.74

14

CAP

09250-06004

$1.49

15

COVER,FRAME HEA | MODEL G This part replaces 47350-38A00-24D.

47350-38A01-13L

Unavailable

15

COVER,FRAME HEA | MODEL G This part replaces 47350-38A00-019.

47350-38A01-13L

Unavailable

15

COVER,FRAME HEA | MODEL H This part replaces 47350-38A00-13Z.

47350-38A01-13L

Unavailable

15

COVER,FRAME HEA | MODEL H This part replaces 47350-38A00-24V.

47350-38A01-13L

Unavailable

15

COVER,FRAME HEA | MODEL H This part replaces 47350-38A00-33D.

47350-38A01-13L

Unavailable

16

COVER,FRM HEAD, | MODEL G This part replaces 47360-38A00-24D.

47360-38A01-13L

Unavailable

16

COVER,FRM HEAD, | MODEL G This part replaces 47360-38A00-019.

47360-38A01-13L

Unavailable

16

COVER,FRM HEAD, | MODEL H This part replaces 47360-38A00-13Z.

47360-38A01-13L

Unavailable

16

NO DESCRIPTION AVAILABLE | MODEL H This part replaces 47360-38A00-24V.

47360-38A01-24V

Unavailable

16

COVER,FRM HEAD, | MODEL H This part replaces 47360-38A00-33D.

47360-38A01-13L

Unavailable

17

SCREW This part replaces 02142-05104.

02142-0510B

$1.78

18

SCREW This part replaces 02112-04254.

02112-0425B

$2.34

19

MOLDING, FRONT This part replaces 68241-38A10.

68241-04X50-300

$7.32

20

PROTECTOR (80X80X2) This part replaces 33652-38A10.

33652-07D00

$5.64

21

TAPE, FRAME HEAD COVER

47358-38A00

Unavailable

22

UNION This part replaces 09360-06015.

09360-06015-XC0

Unavailable

23

BOLT This part replaces 01517-06105.

01550-0610A

$1.97

24

GASKET

09168-06004

$1.49
