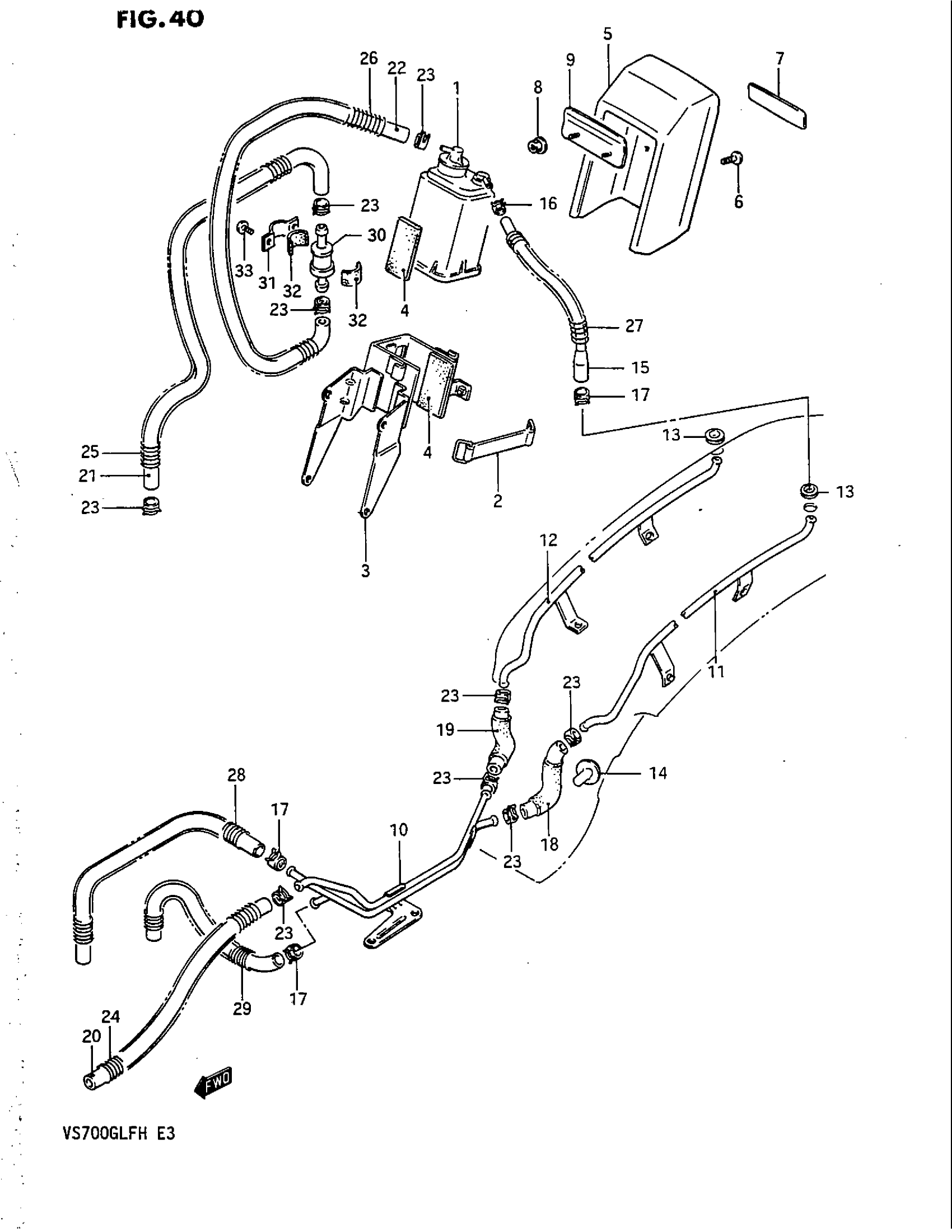

Suzuki VS700GLEF (1987) CANISTER (FOR CALIFORNIA) Diagram

#

Description
Price

1

CANISTER ASSY

17210-38A00

Unavailable

2

BAND

09462-00034

$4.24

3

PLATE, CANISTER FITTING | Includes Item(s) 4

44880-38A00

Unavailable

4

CUSHION (10X30X2)

44894-24A00

$1.72

5

COVER, CANISTER | MODEL G This part replaces 44991-38A00.

44991-38A10

Unavailable

5

COVER, CANISTER | MODEL H

44991-38A10

Unavailable

6

SCREW, COVER

09120-05002

Unavailable

7

EMBLEM | MODEL H

68261-38B00

Unavailable

8

NUT This part replaces 08316-16053.

08316-1005A

$2.19

9

PLATE, CANISTER UPPER COVER | VS700GLFG/GLPG This part replaces 44870-38A00.

44870-38A01

Unavailable

9

PLATE, CANISTER UPPER COVER | VS700GLEFG/FLEPG,MODEL H

44870-38A01

Unavailable

10

PIPE, CANISTER JOINT FRONT

44940-38A00

Unavailable

11

PIPE, CANISTER JOINT REAR PRG

44950-38A00

Unavailable

12

PIPE, CANISTER JOINT REAR CHG

44960-38A00

Unavailable

13

GROMMET

09308-05020

Unavailable

14

GROMMET

09308-05004

Unavailable

15

HOSE, NO.3 This part replaces 44411-38A00.

44911-43500

Unavailable

16

CLIP, HOSE This part replaces 09401-06404.

09401-06405

$2.45

17

CLIP This part replaces 09401-08407.

09401-08411

$1.78

18

HOSE, NO.6 PRG

44340-38A00

Unavailable

19

HOSE, NO.2 CHG

44330-38A00

Unavailable

20

HOSE, NO.1 CHG

09343-05399

Unavailable

21

HOSE, VALVE CHARGE This part replaces 09343-05397.

09343-05414

Unavailable

22

HOSE, VALVE CHARGE This part replaces 09343-05398.

09343-05414

Unavailable

23

CLIP This part replaces 09401-11410.

09401-11413

$2.26

24

SPRING This part replaces 09440-13018.

09440-13043

$6.04

25

SPRING, NO.2

09440-13044

Unavailable

26

SPRING, NO.3

09440-13043

$6.04

27

SPRING, NO.4

09440-10031

Unavailable

28

SPRING, NO.5

09440-10022

Unavailable

29

SPRING, NO.6

09440-10019

$3.37

30

VALVE, FUEL TANK BREATHER

44240-38A00

$61.15

31

PLATE,FUEL TANK BREATHER NO.2 | Includes Item(s) 32

44892-24A00

$4.52

32

CUSHION (10X30X2)

44894-24A00

$1.72

33

SCREW This part replaces 02142-04103.

02142-0410A

$1.49
