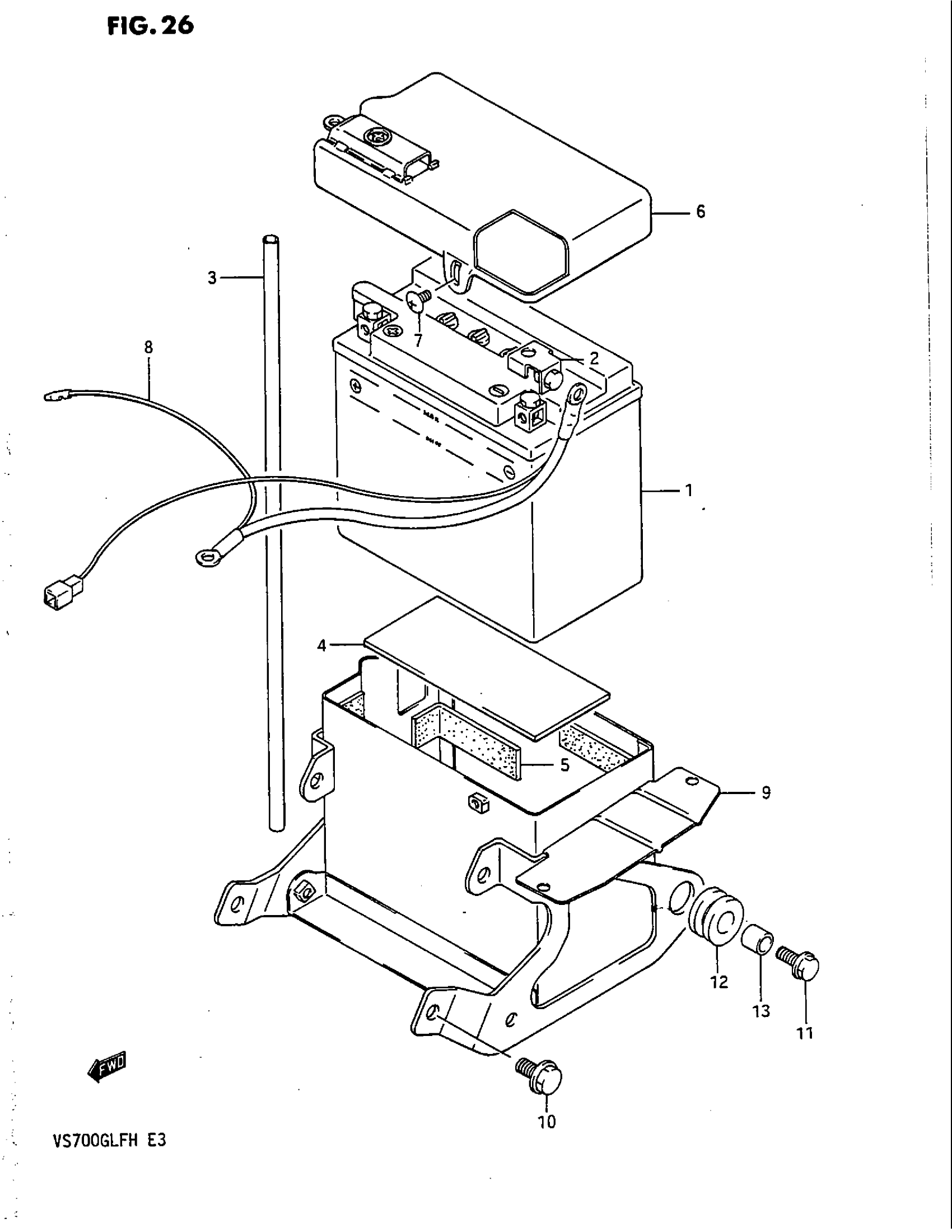

Suzuki VS700GLEF (1987) BATTERY (MODEL G -F.NO.111193) Diagram

#

Description

Price

1

BATTERY (12V,16AH) This part replaces 33610-38A30.

33610-38A01

$179.12

2

TERMINAL

33621-38A00

Unavailable

3

HOSE,BATTERY EX | L:400->200 This part replaces 33680-17300.

33680-16A11

$6.78

4

CUSHION | CUT AS REQUIRED PROFILE

33651-37000

$4.48

5

PROTECTOR (80X80X2) This part replaces 33652-38A10.

33652-07D00

$5.64

6

COVER, BATTERY UPPER This part replaces 33658-38A01.

33658-38A30

$12.57

7

SCREW This part replaces 02142-05085.

02142-0508A

$1.49

8

LEAD WIRE, (-)

33860-38A00

$20.35

9

HOLDER, BATTERY This part replaces 41540-38A00.

41540-38A12

$129.45

10

BOLT (8X16) This part replaces 01517-08165.

01550-0816A

$2.32

11

BOLT This part replaces 01517-06164.

01550-0616A

$1.97

12

CUSHION

09320-12031

$2.34

13

SPACER (8.5X12X11) | .111194~ This part replaces 09180-08001.

09180-08189

$2.58
