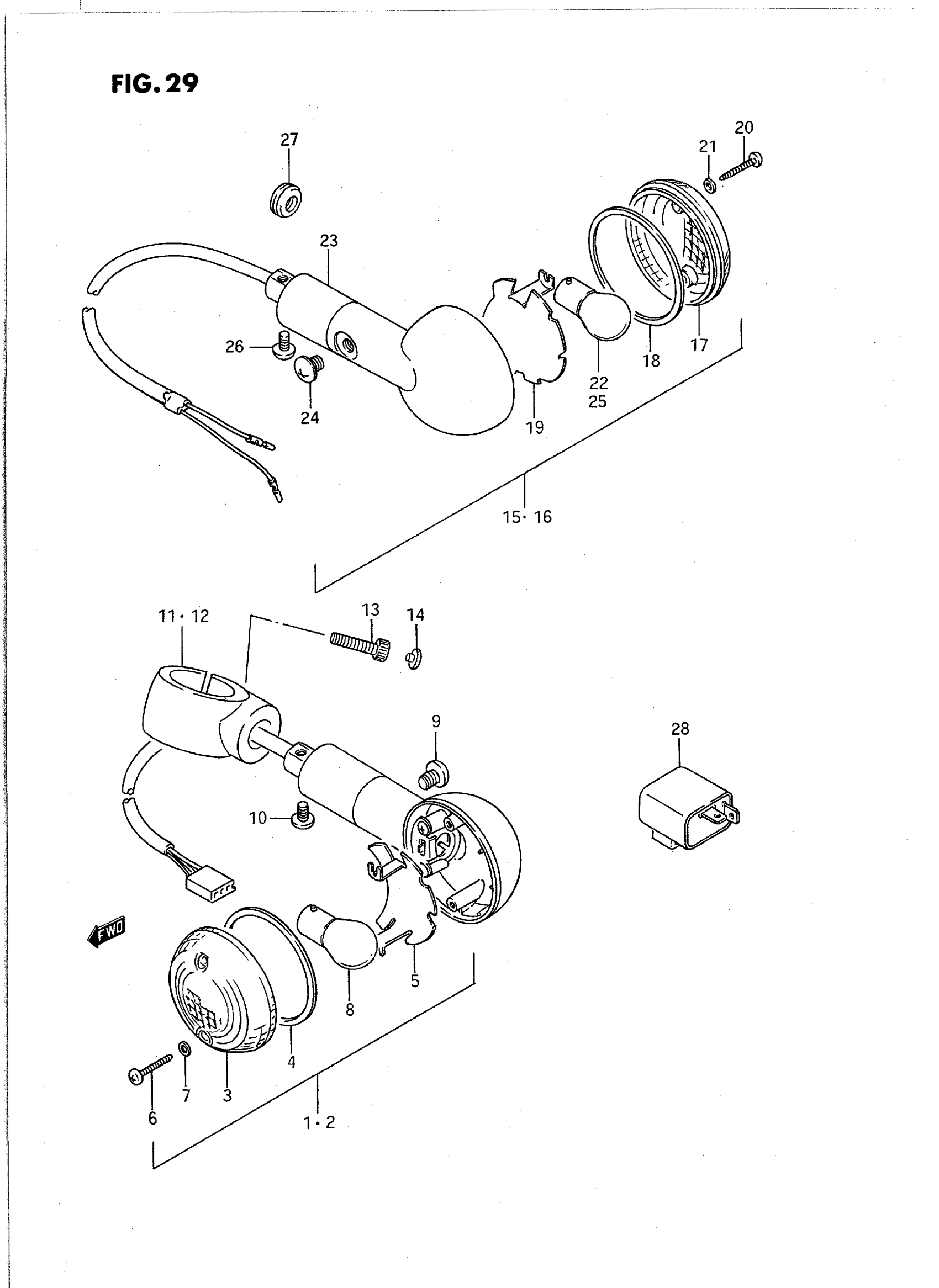

Suzuki VS1400GLPS (1995) TURN SIGNAL LAMP Diagram

#

Description
Price

1

LAMP ASSY, FRONT TURNSIGNAL,R | MODEL H This part replaces 35601-38B30.

35601-38B30-999

Unavailable

1

LAMP ASSY, FRONT TURNSIGNAL,R | MODEL J/L/M This part replaces 35601-38B80.

35601-38B30-999

Unavailable

1

LAMP ASSY, FRONT TURNSIGNAL,R | MODEL N/P/R/S

35601-38B30-999

Unavailable

2

LAMP ASSY, FRONT TURNSIGNAL,L | MODEL H This part replaces 35602-38B30.

35602-38B30-999

Unavailable

2

LAMP ASSY, FRONT TURNSIGNAL,L | MODEL J/L/M This part replaces 35602-38B80.

35602-38B30-999

Unavailable

2

LAMP ASSY, FRONT TURNSIGNAL,L | MODEL N/P/R/S; Includes Item(s) 3 - 9

35602-38B30-999

Unavailable

3

LENS

35612-38A30

$17.90

4

GASKET

35613-38A00

$9.74

5

REFLECTOR

35624-38A00

Unavailable

6

SCREW This part replaces 03211-04253.

03211-0425B

$2.70

7

GASKET

35627-43010

$2.28

8

BULB (12V,23/8W) | MODEL H

09471-12084

Unavailable

8

BULB (12V,21/5W) | MODEL J/L/M/N/P/R/S

09471-12128

$6.73

9

SCREW

35623-38A01

$5.05

10

SCREW

02142-06107

Unavailable

11

BRACKET, RH

35671-38B00

$134.78

12

BRACKET, LH

35681-38B00

Unavailable

13

BOLT

07130-06167

$3.16

14

CAP

09250-05008

$3.76

15

LAMP ASSY,FR TR | MODEL H This part replaces 35603-38B00.

35601-38A02

Unavailable

15

LAMP ASSY, REAR TURNSIGNAL,R | MODEL J/L/M/N/P This part replaces 35603-38B80.

35603-38A02-999

Unavailable

15

LAMP ASSY, REAR TURNSIGNAL,R | MODEL R/S

35603-38A02-999

Unavailable

16

LAMP ASSY,FR TR | MODEL H This part replaces 35604-38B00.

35601-38A02

Unavailable

16

LAMP ASSY, REAR TURNSIGNAL,R | MODEL J/L/M/N/P This part replaces 35604-38B80.

35603-38A02-999

Unavailable

16

LAMP ASSY, REAR TURNSIGNAL,L | MODEL R/S; Includes Item(s) 17 - 24

35603-38A02-999

Unavailable

17

LENS | MODEL H This part replaces 35612-38A00.

35612-38A01

$13.81

17

LENS | MODEL J/L/M/N/P/R/S

35612-38A01

$13.81

18

GASKET

35613-38A00

$9.74

19

REFLECTOR | MODEL H

35624-38A00

Unavailable

19

REFLECTOR | MODEL J/L/M/N/P/R/S

35624-39A00

Unavailable

20

SCREW This part replaces 03211-04253.

03211-0425B

$2.70

21

GASKET

35627-43010

$2.28

22

BULB (12V,23W) | MODEL H

09471-12006

$3.98

22

BULB (12V 21W) | MODEL J/L/M/N/P This part replaces 09471-12056.

09471-12045

$3.27

23

STAY

35619-38A01

$40.32

24

SCREW

35623-38A01

$5.05

25

BULB (12V 21W) | MODEL R This part replaces 09471-12056.

09471-12045

$3.27

25

BULB | MODEL S

09471-12045

$3.27

26

SCREW

02142-06107

Unavailable

27

GROMMET

09308-08011

$2.83

28

RELAY ASSY, TURNSIGNAL | MODEL H/J/L/M/N This part replaces 38610-31310.

38610-31X50

$80.15

28

RELAY, TURN SIGNAL | MODEL P This part replaces 38610-45D00.

38610-45D01

$78.73

28

RELAY, TURN SIGNAL | MODEL R/S

38610-45D01

$78.73
