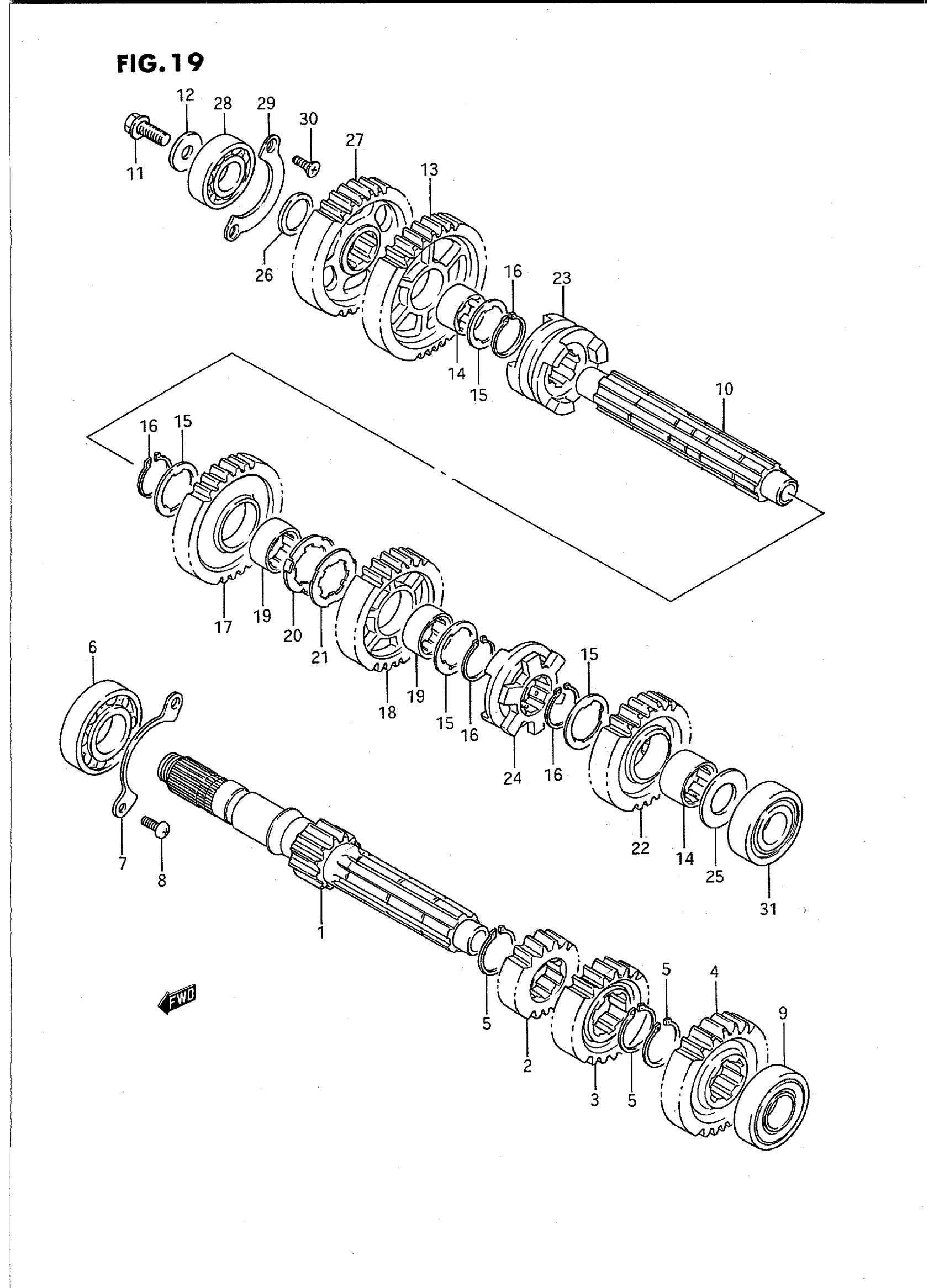

Suzuki VS1400GLPS (1995) TRANSMISSION Diagram

#

Description
Price

1

COUNTERSHAFT (NT:12)

24120-38B01

Unavailable

2

GEAR, 2ND DRIVE (NT:17)

24221-38B00

Unavailable

3

GEAR, 3RD DRIVE (NT:21)

24231-38B00

Unavailable

4

GEAR, 4TH DRIVE (NT:24)

24241-38B00

Unavailable

5

CIRCLIP This part replaces 08331-31286.

08331-31289

$2.19

6

BEARING, RH

09262-25080

$38.77

7

RETAINER

24741-38A00

Unavailable

8

SCREW | MODEL H/J/L/M/N/P/R This part replaces 02112-06126.

02112-0612A

$1.49

8

SCREW | MODEL S This part replaces 02112-06123.

02112-0612A

$1.49

9

BEARING, LH

09262-20080

$38.77

10

DRIVESHAFT

24131-38B01

Unavailable

11

BOLT

09103-10112

$3.40

12

WASHER

08211-10305

$4.25

13

GEAR, 1ST DRIVEN (NT:36)

24311-38B00

Unavailable

14

BUSH

24332-24A00

Unavailable

15

WASHER

09167-28001

$4.60

16

CIRCLIP This part replaces 08331-31286.

08331-31289

$2.19

17

GEAR, 2ND DRIVEN (NT:31) | MODEL H/J/L/M/N/P/R This part replaces 24321-38B00.

24321-38B20

Unavailable

17

GEAR, 2ND DRIVEN (NT:31) | MODEL S This part replaces 24321-38B10.

24321-38B20

Unavailable

18

GEAR, 3RD DRIVEN (NT:28)

24331-38B00

Unavailable

19

BUSH

24332-49000

$17.68

20

LOCK WASHER, RH

09169-28001

$3.85

21

LOCK WASHER, RH

09167-28002

$4.77

22

GEAR, 4TH DRIVEN (NT:25)

24341-38B00

Unavailable

23

DOG, SLIDING NO.1

24411-38B01

Unavailable

24

DOG, SLIDING NO.2

24421-38B01

Unavailable

25

WASHER

08211-20382

Unavailable

26

WASHER (22X32X3)

09160-22032

$5.33

27

GEAR, OVERDRIVING DRIVE

24621-38B00

Unavailable

28

BEARING, RH | <-09262-22012

09262-22025

$57.67

29

RETAINER

24741-38401

Unavailable

30

SCREW | MODEL H/J/L/M/N/P/R This part replaces 02122-06128.

02122-06127

$1.84

30

SCREW | MODEL S This part replaces 02122-06123.

02122-0612A

$1.49

31

BEARING, LH

09262-20080

$38.77
