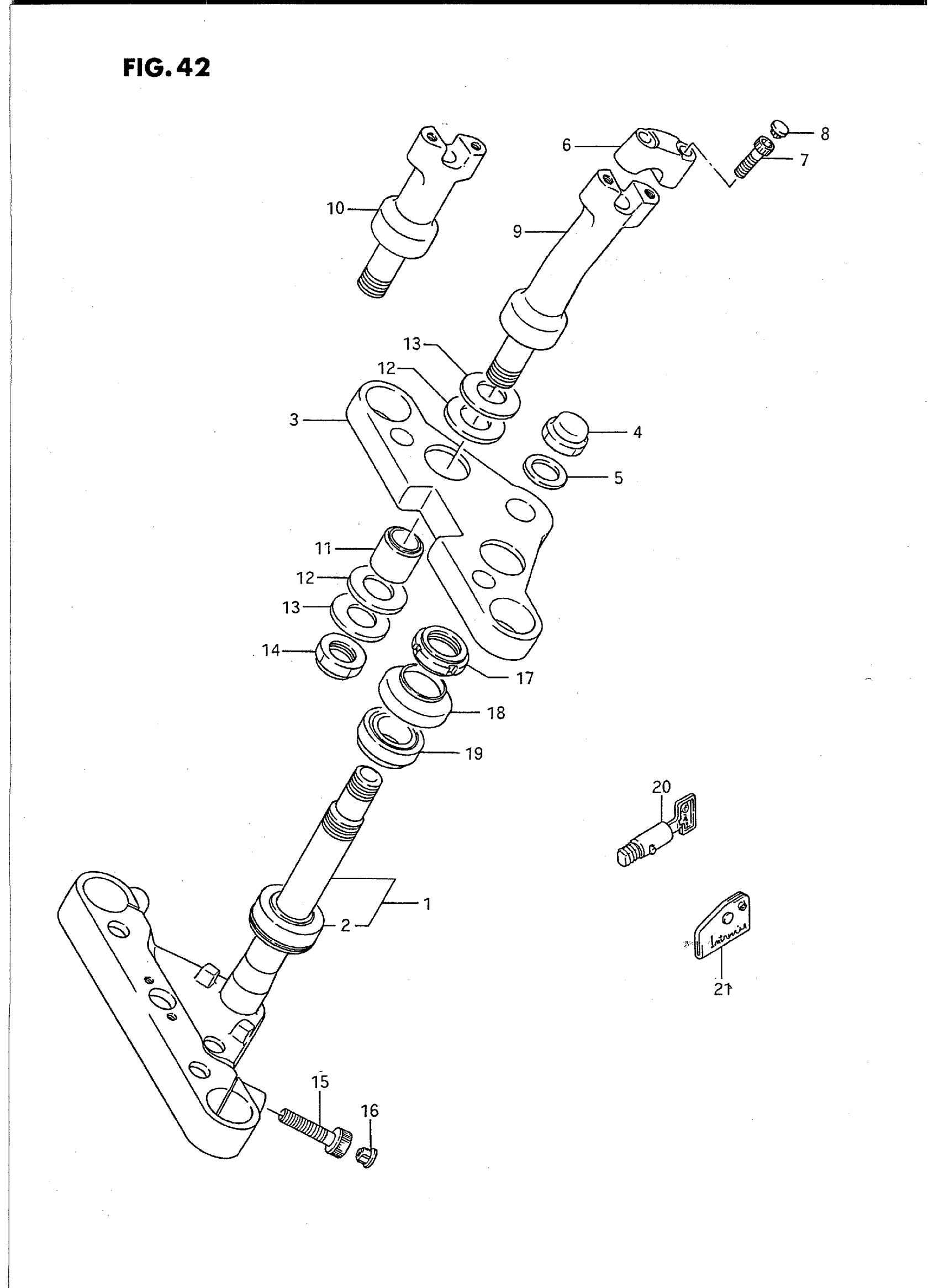

Suzuki VS1400GLPS (1995) STEERING STEM Diagram

#

Description
Price

1

BRACKET, UNDER | MODEL H/J This part replaces 51410-38B00.

51410-38B21

Unavailable

1

BRACKET, UNDER | MODEL L/M/N/P/R/S; Includes Item(s) 2 This part replaces 51410-38B20.

51410-38B21

Unavailable

2

RT 30X55X17 BEA This part replaces 09265-30009.

09265-30034

$57.05

3

HEAD, STEERING STEM This part replaces 51311-38B00.

51311-38B01

Unavailable

4

NUT, STEM | MODEL H/J/L/M/N/P This part replaces 51353-38A01.

51353-24B00

$30.67

4

NUT, CAP | MODEL R/S

51353-24B00

$30.67

5

WASHER, STEM | MODEL H/J/L/M/N This part replaces 51354-38A01.

51356-24B01

$5.38

5

WASHER, STEM | MODEL P/R This part replaces 51354-17C00.

51356-24B01

$5.38

5

WASHER | MODEL S

51356-24B01

$5.38

6

HOLDER, HANDLE UPPER

56211-38A01

$62.07

7

BOLT, STEERING DAMPER This part replaces 07110-08305.

07130-0830A

$1.74

8

CAP, HANDLE CLAMP

09250-06009

$3.42

9

HOLDER, HANDLE (FLAT TYPE) | VS1400GLFH/GLFM/GLFN/GLFP/GLFR/GLFS

56220-38B00

Unavailable

10

HOLDER, HANDLE | VS1400GLPH/GLPJ/GLPL/GLPM/GLPN/GLPP/GLPR/GLPS

56220-38B10

Unavailable

11

BUSH, RUBBER

56240-38B00

$47.40

12

SEAT, RUBBER

56245-38B00

$8.05

13

WASHER

56244-38B00

$8.87

14

NUT

56246-38B00

Unavailable

15

BOLT, LOWER | MODEL H/J/L/M/N/P This part replaces 51352-38A00.

07130-10307

$4.41

15

BOLT | MODEL R/S

07130-10307

$4.41

16

CAP

09250-08014

$2.85

17

NUT, STEERING STEM

51631-28000

$17.37

18

SEAL, STEERING DUST | MODEL H/J/L/M/N/P This part replaces 51643-49001.

51643-49002

$12.32

18

DUST SEAL, STEERING UPPER | MODEL R/S

51643-49002

$12.32

19

BEARING, STEERING UPPER

09265-25008

Unavailable

20

LOCK ASSY,STEER This part replaces 51900-38810.

51900-309V0

$87.06

21

CASE, STEERING KEY

51920-38A00

Unavailable
