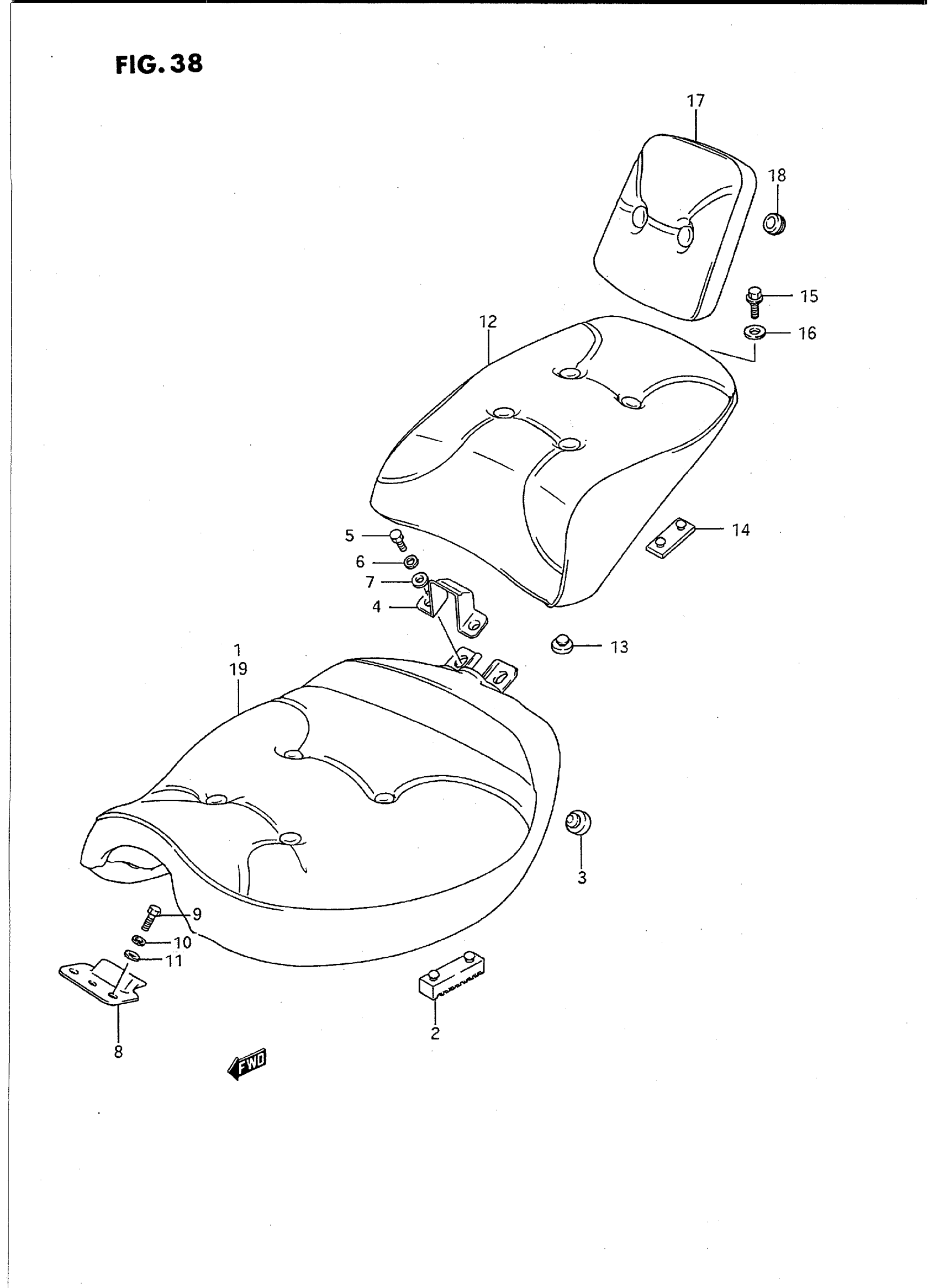

Suzuki VS1400GLPS (1995) SEAT Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL H This part replaces 45100-38B00-9HZ.

45100-38B04-9HZ

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL J/L/M/N/P This part replaces 45100-38B02-9HZ.

45100-38B04-9HZ

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL R/S; Includes Item(s) 2 - 3 This part replaces 45100-38B03-9HZ.

45100-38B04-9HZ

Unavailable

2

CUSHION | MODEL H

45149-43500

$6.85

2

CUSHION | MODEL J/L/M/N/P/R/S

45148-38B01

$8.97

3

CUSHION

09321-10012

$2.92

4

PLATE, SEAT HOOK REAR

45119-38B00

$7.44

5

BOLT, GEAR SHIFT LINK | MODEL H/J/L/M/N This part replaces 01500-06203.

01500-0620A

$1.78

5

BOLT | MODEL P This part replaces 01137-06206.

01570-0620A

$2.19

5

BOLT | MODEL R This part replaces 01820-06203.

01570-0620A

$2.19

5

BOLT | MODEL S This part replaces 01570-06203.

01570-0620A

$2.19

6

LOCK WASHER This part replaces 08321-01063.

08321-0106A

$1.84

7

.WASHER This part replaces 08322-01063.

08322-0106B

$2.26

8

BRACKET, SEAT FRONT

45210-38B00

$19.72

9

BOLT, GEAR SHIFT LINK | MODEL H/J/L/M/N This part replaces 01500-06203.

01500-0620A

$1.78

9

BOLT | MODEL P This part replaces 01137-06206.

01570-0620A

$2.19

9

BOLT | MODEL R This part replaces 01820-06203.

01570-0620A

$2.19

9

BOLT | MODEL S This part replaces 01570-06203.

01570-0620A

$2.19

10

LOCK WASHER This part replaces 08321-01063.

08321-0106A

$1.84

11

.WASHER This part replaces 08322-01063.

08322-0106B

$2.26

12

SEAT SET, PILLION | Includes Item(s) 13 - 14

45300-38B00-9HZ

Unavailable

13

CUSHION, FRONT

09329-10001

$2.12

14

CUSHION, REAR

45149-38B00

Unavailable

15

BOLT, PILLION REAR

09111-06057

$5.00

16

WASHER | MODEL H/J/L/M/N/P

09160-09009

Unavailable

16

WASHER, HEAD COVER CAP LOWER | MODEL R/S This part replaces 09160-09007.

09160-09016

$2.30

17

PAD ASSY, SEAT | Includes Item(s) 18

45350-38B00-9HZ

Unavailable

18

CUSHION This part replaces 09320-09026.

09320-09062

$2.00

19

SEAT SET | OPT

45100-38820-9HZ

Unavailable

19

SEAT SET | OPT

45100-38830-9HZ

Unavailable
