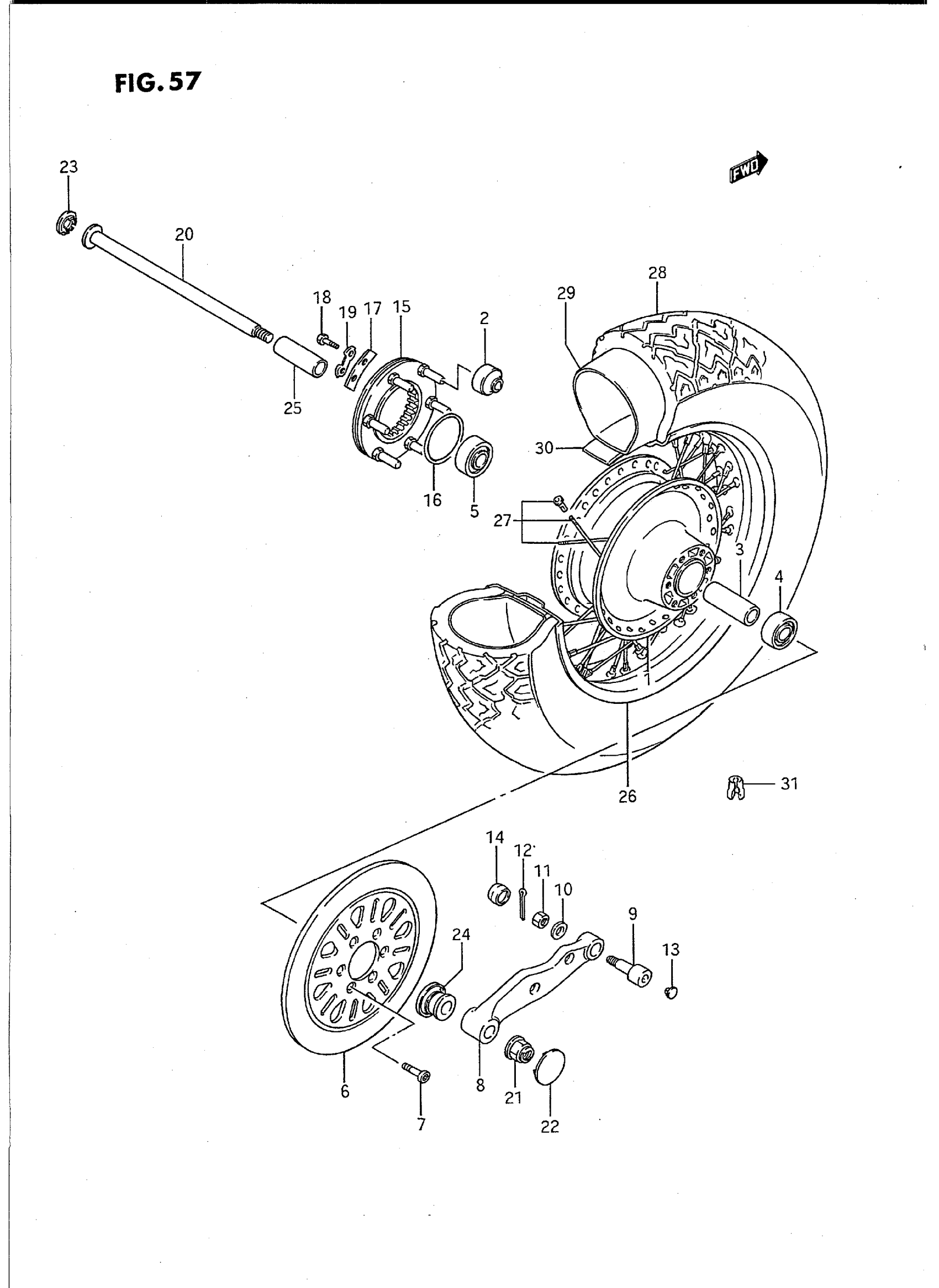

Suzuki VS1400GLPS (1995) REAR WHEEL Diagram

#

Description
Price

1

HUB SET, REAR | Includes Item(s) 2

64100-38850

Unavailable

2

BUSHING

09319-12029

Unavailable

3

SPACER, REAR HUB BEARING

09180-17092

$25.33

4

BEARING This part replaces 08123-63037.

08123-6303B

$15.56

5

BEARING, LH

08143-63037

$22.58

6

DISC, REAR BRAKE

69211-38B00

$307.10

7

BOLT (8X33) | MODEL H/J/L/M/N/P This part replaces 09106-08062.

09106-08148

$4.80

7

BOLT (8X33) | MODEL R/S This part replaces 09106-08125.

09106-08148

$4.80

8

BRACKET, CALIPER

69721-38B00

Unavailable

9

PIN. BRACKET

64241-38B01

$23.77

10

WASHER

09160-12061

$2.15

11

NUT

09159-12026

$2.47

12

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49

13

CAP, PIN

09250-08012

$2.15

14

CAP, NUT

09251-16001

$3.50

15

JOINT, HUB DRIVEN | MODEL H/J/L/M/N/P/R->64680-24A00 This part replaces 64680-38B00.

64680-24A00

$277.25

15

JOINT, HUB DRIVEN | MODEL S

64680-24A00

$277.25

16

O RING

09280-65003

$3.72

17

WASHER, THRUST

64677-45110

$2.92

18

BOLT

09119-06049

$1.56

19

WASHER

09169-06030

$3.15

20

AXLE, REAR | ->64711-38B01 This part replaces 64711-38B00.

64711-38B01

Unavailable

20

AXLE, REAR

64711-38B01

Unavailable

21

NUT This part replaces 08319-31148.

08319-3114A

$9.66

22

CAP, RH

64791-38B00

$22.45

23

CAP, LH

64792-38B00

$28.92

24

SPACER, RH

64740-38B00

$25.33

25

SPACER, LH

09180-17088

Unavailable

26

RIM, WHEEL (MT4.00X15) This part replaces 65311-38B03.

65311-38B04

$603.05

27

SPOKE SET, REAR WHEEL

65320-38B00

$265.62

28

TIRE, REAR (170/80-15MC 77H) | BRIDGESTONE

65100-38B01

Unavailable

29

TUBE ASSY, WHEEL INNER This part replaces 65200-38B00.

65200-38B20

Unavailable

30

PROTECTOR, INNER TUBE

65261-38B00

Unavailable

31

BALANCER, WHEEL (20G) This part replaces 55412-38A00.

55412-41F00

$8.12

31

BALANCER WHEEL (30G) This part replaces 55413-38A00.

55413-41F00

$7.50
