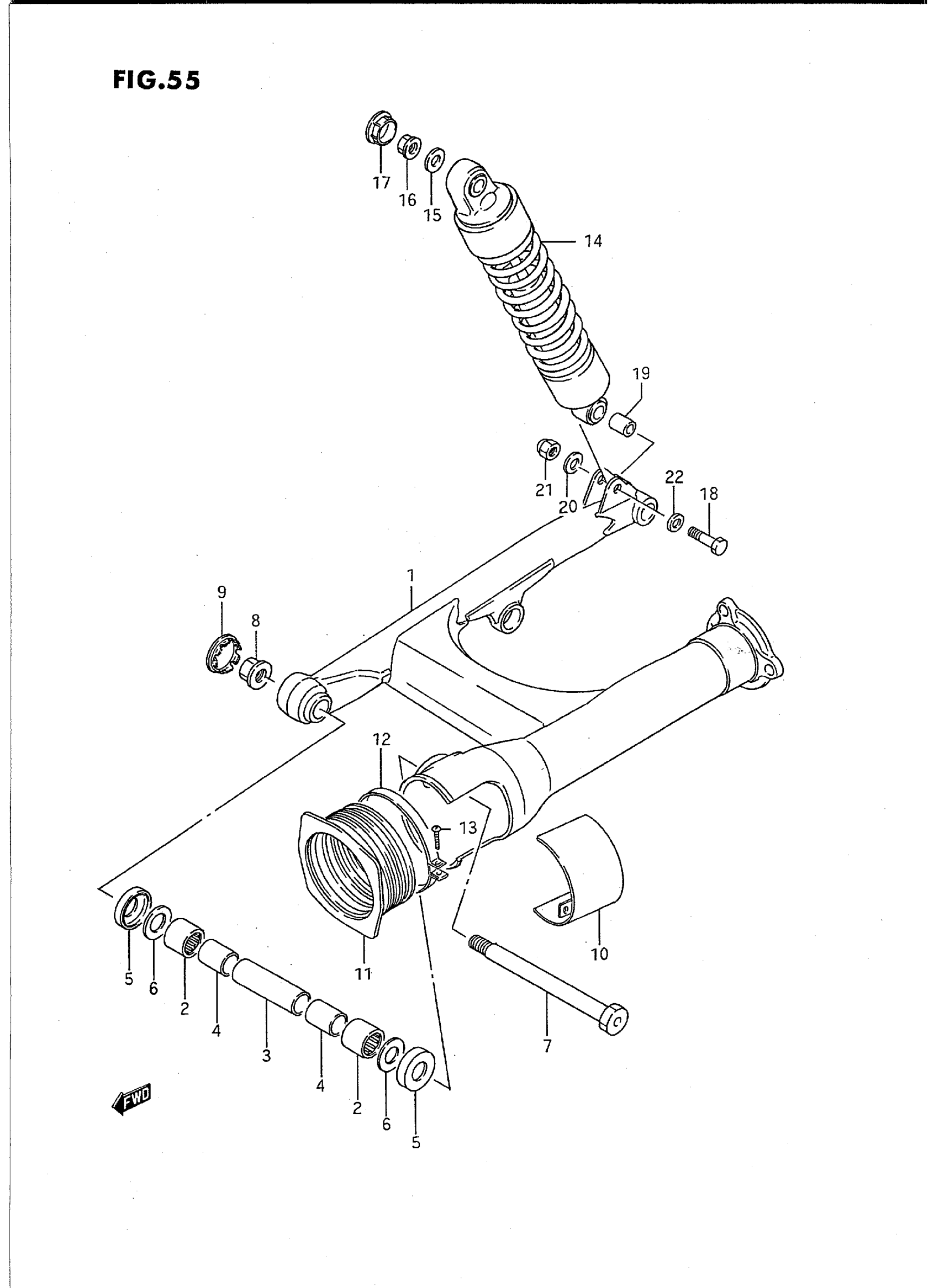

Suzuki VS1400GLPS (1995) REAR SWINGING ARM Diagram

#

Description
Price

1

SWINGING ARM, REAR (BLACK) | MODEL H/J/L/R/S This part replaces 61100-38B00-33J.

61100-38B01-33J

Unavailable

1

SWINGING ARM, REAR (BLACK) | MODEL H This part replaces 61100-38B00-33D.

61100-38B01-33J

Unavailable

1

SWINGING ARM, REAR (BLACK) | MODEL H This part replaces 61100-38B00-24V.

61100-38B01-33J

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL J/N This part replaces 61100-38B00-24D.

61100-38B01-24D

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL M This part replaces 61100-38B00-0FJ.

61100-38B01-0FJ

Unavailable

1

SWINGING ARM, REAR (MAROON) | MODEL M/P/R This part replaces 61100-38B00-20F.

61100-38B01-20F

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL N/P This part replaces 61100-38B00-13Z.

61100-38B01-13Z

Unavailable

1

SWINGING ARM, REAR (GREEN) | MODEL S This part replaces 61100-38B00-1ZV.

61100-38B01-1ZV

Unavailable

2

BEARING

09263-22017

$22.58

3

SPACER, CENTER

61282-38B00

Unavailable

4

SPACER, PIVOT

61251-38B00

$19.82

5

COVER DUST SEAL | MODEL H/J/L/M/N/P This part replaces 61262-32410.

61262-32411

$9.72

5

SEAL | MODEL R/S This part replaces 61262-14A00.

61262-14A01

$6.17

6

THRUST WASHER

08211-16341

$2.39

7

SHAFT, PIVOT

61211-38B00

Unavailable

8

NUT This part replaces 08319-31148.

08319-3114A

$9.66

9

CAP, RH

61222-38A01

$13.35

10

CAP, LH (BLACK) | MODEL H/J/L/R/S

61230-38B00-33J

Unavailable

10

CAP, LH (MAROON) | MODEL H

61230-38B00-33D

Unavailable

10

CAP, LH (BLUE) | MODEL H

61230-38B00-24V

Unavailable

10

CAP, LH (MAROON) | MODEL J/N This part replaces 61230-38B00-24D.

61230-38B00-33D

Unavailable

10

CAP, LH (BLACK) | MODEL M This part replaces 61230-38B00-0FJ.

61230-38B00-33J

Unavailable

10

CAP, LH (MAROON) | MODEL M/P/R

61230-38B00-20F

Unavailable

10

CAP, LH (BLACK) | MODEL N/P

61230-38B00-13Z

Unavailable

10

CAP, LH (GREEN) | MODEL S

61230-38B00-1ZV

Unavailable

11

BOOT,PROPELLER This part replaces 61372-38B00.

61372-38B01

$16.55

12

CLAMP This part replaces 09402-92306.

09402-92306-XC0

$5.57

13

SCREW | MODEL H/J/L/M/N/P This part replaces 03211-04255.

03211-0425B

$2.70

13

SCREW | MODEL R/S This part replaces 03211-04253.

03211-0425B

$2.70

14

ABSORBER ASSY, REAR SHOCK This part replaces 62100-38B00.

62100-38B10

$472.22

15

WASHER, LOWER (10.5X24X2.3) | MODEL H/J/L/M/N This part replaces 09160-10001.

09160-10093

$2.35

15

WASHER | MODEL P/R/S This part replaces 09160-10013.

09160-10123

$2.12

16

NUT | MODEL H/J/L/M/N/P This part replaces 08316-16106.

08316-1010B

$2.66

16

NUT | MODEL R/S This part replaces 08316-10103.

08316-1010B

$2.66

17

CAP

95672-24A00

$5.83

18

BOLT, LOWER RH

09100-10247

$2.98

19

SPACER, LOWER RH (10.2X14X20.7) This part replaces 09180-10104.

09180-10139

$3.99

20

WASHER, LOWER (10.5X24X2.3) This part replaces 09160-10095.

09160-10093

$2.35

21

NUT | MODEL H/J/L/M/N/P This part replaces 08313-11107.

08313-10107

$2.50

21

NUT | MODEL R/S

08313-10107

$2.50

22

WASHER, KNUCKLE END | MODEL H/J/L/M/N/P This part replaces 08322-11104.

08322-0110A

$1.84
