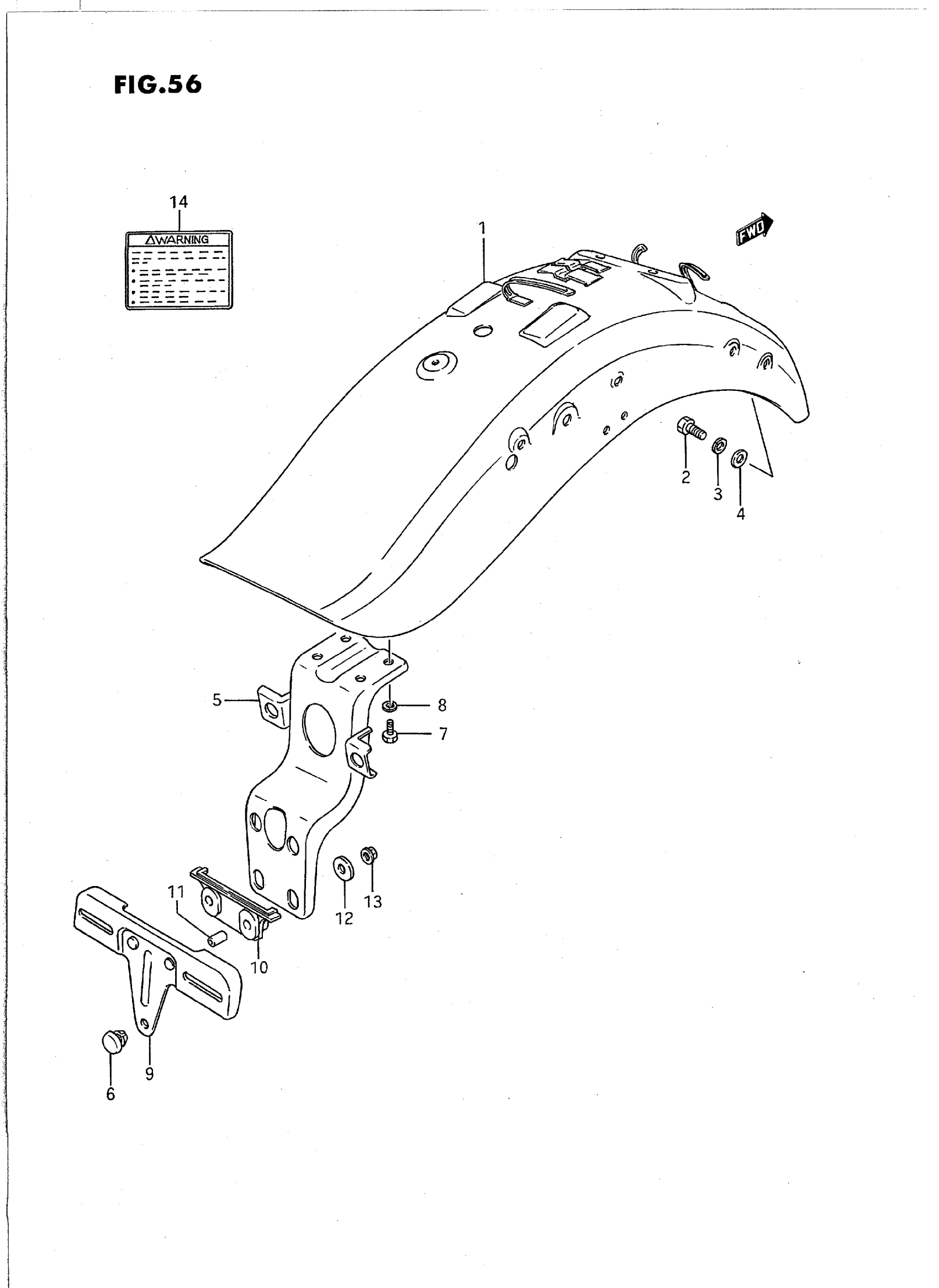

Suzuki VS1400GLPS (1995) REAR FENDER Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL H/J/L/R/S This part replaces 63110-38B00-33J.

63110-38B01-33J

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL H This part replaces 63110-38B00-33D.

63110-38B01-13L

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL H This part replaces 63110-38B00-24V.

63110-38B01-13L

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL J/N This part replaces 63110-38B00-24D.

63110-38B01-13L

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL M This part replaces 63110-38B00-0FJ.

63110-38B01-13L

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL M/P/R This part replaces 63110-38B00-20F.

63110-38B01-20F

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL N/P This part replaces 63110-38B00-13Z.

63110-38B01-33J

Unavailable

1

FENDER,REAR | MODEL S This part replaces 63110-38B00-1ZV.

63110-38B01-1ZV

Unavailable

2

BOLT | MODEL H/J/L This part replaces 01107-08206.

01500-0820A

$2.28

2

BOLT | MODEL M/N/P

01184-08206

Unavailable

2

BOLT | MODEL R This part replaces 01830-08203.

01580-0820A

$3.30

2

BOLT | MODEL S This part replaces 01550-08203.

01550-0820A

$2.23

3

LOCK WASHER | MODEL H/J/L This part replaces 08321-21086.

08321-0108A

$1.84

4

WASHER | MODEL H/J/L This part replaces 08322-11086.

08322-0108A

$1.92

5

BRACKET, LAMP

63460-38B00

$104.18

6

CUSHION This part replaces 09321-08005.

09321-08025

$2.38

7

BOLT | MODEL H/J/L This part replaces 01107-06126.

01500-0612A

$1.78

7

BOLT | MODEL M/N/P This part replaces 01134-06126.

01570-0612A

$2.63

7

BOLT | MODEL R/S This part replaces 01570-06123.

01570-0612A

$2.63

8

LOCK WASHER | MODEL H/J/L This part replaces 08321-21066.

08321-0106A

$1.84

9

PLATE, LICENSE This part replaces 63463-38B00.

63463-38B10

$45.38

10

CUSHION, PLATE

63464-38B00

$17.23

11

SPACER This part replaces 09180-05028.

09180-05050

$4.68

12

WASHER

09160-05501

$1.84

13

NUT | MODEL H/J/L/M/N/P This part replaces 08316-26056.

08316-2005A

$2.19

13

NUT | MODEL R/S This part replaces 08316-20053.

08316-2005A

$2.19

14

LABEL,GENERAL W | MODEL L/M/N/P/R/S This part replaces 68319-40C00.

68319-33E02

$7.25

15

LABEL, TIRE AIR PRESSURE | DRAWING NOT SHOWN

68332-38B30

Unavailable

16

LABEL, VACUUM HOSE ROUTING | CALIFORNIA ONLYMODEL P FOR 13Z

68387-38B10-8SP

Unavailable

16

LABEL, VACUUM HOSE ROUTING | CALIFORNIA ONLYMODEL P/R FOR 20F

68387-38B10-F03

Unavailable

16

LABEL, VACUUM HOSE ROUTING | CALIFORNIA ONLYMODEL R/S FOR 33J

68387-38B10-9FD

Unavailable

16

LABEL, VACUUM HOSE ROUTING | CALIFORNIA ONLYMODEL S FOR 1ZVDRAWING NOT SHOWN

68387-38B10-D3K

Unavailable

17

MANUAL, OWNER'S | MODEL H

99011-38B50-03A

Unavailable

17

MANUAL, OWNER'S | MODEL J This part replaces 99011-38B51-03A.

99011-38B53-03A

Unavailable

17

MANUAL, OWNER'S | MODEL L

99011-38B53-03A

Unavailable

17

MANUAL, OWNER'S | MODEL M

99011-38B54-03A

Unavailable

17

MANUAL, OWNER'S | MODEL N

99011-38B55-03A

Unavailable

17

MANUAL, OWNER'S | MODEL P

99011-38B56-03A

Unavailable

17

MANUAL, OWNER'S | MODEL R

99011-38B57-03A

Unavailable

17

MANUAL, OWNER'S | MODEL SDRAWING NOT SHOWN

99011-38B58-03A

Unavailable
