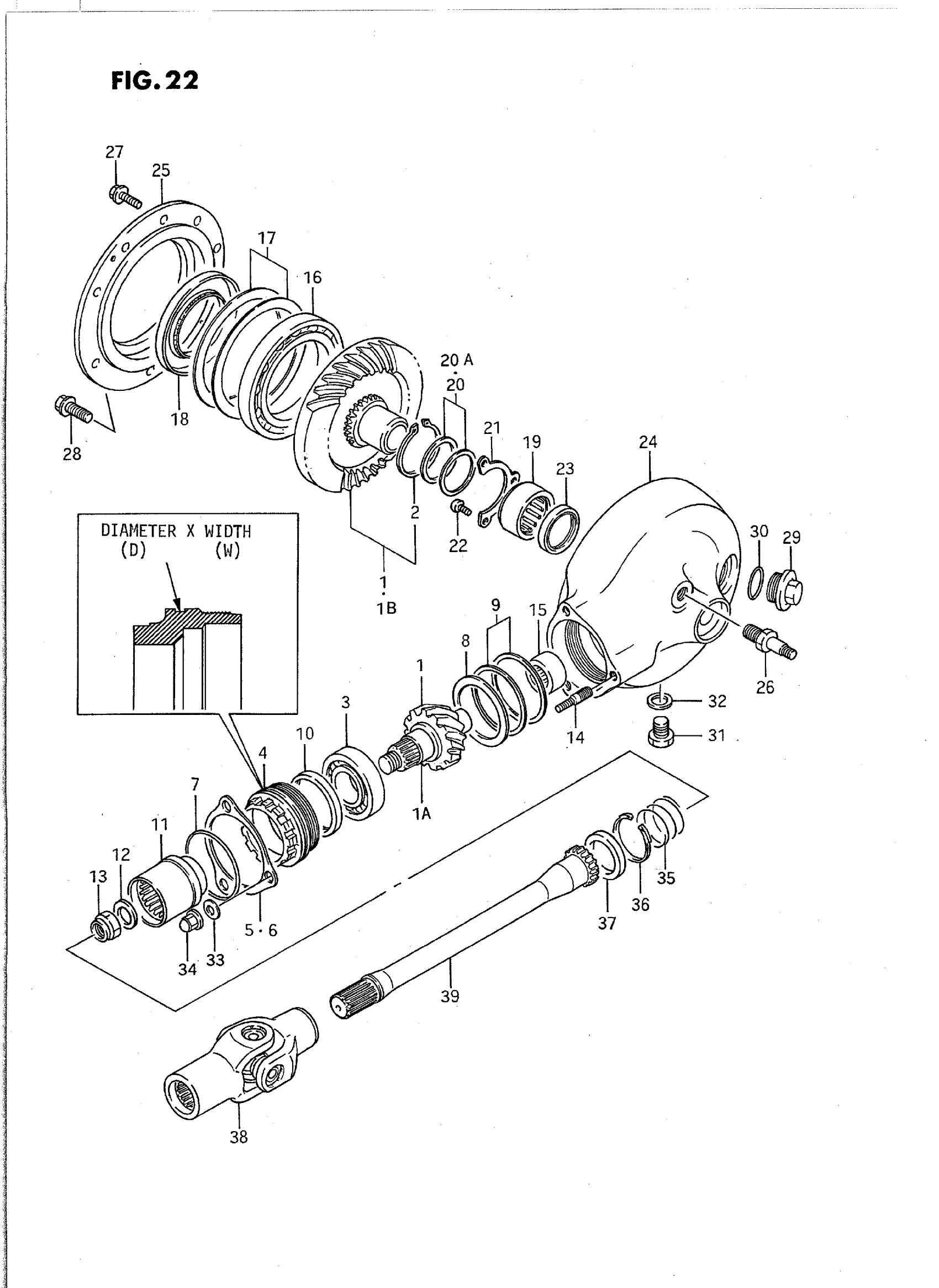

Suzuki VS1400GLPS (1995) PROPELLER SHAFT - FINAL DRIVE GEAR Diagram

#

Description
Price

GEAR & CASE SET, FINAL BEVEL | MODEL H/J/L/M This part replaces 27300-38841.

27300-38845

Unavailable

GEAR & CASE SET, FINAL BEVEL | MODEL N/P/R This part replaces 27300-38844.

27300-38845

Unavailable

GEAR & CASE SET, FINAL BEVEL | MODEL S; Includes Item(s) 1

27300-38845

Unavailable

1

GEAR, FINAL DRIVE BEVEL | NT:12/32 This part replaces 27300-38820.

27311-24A03

Unavailable

1A

GEAR, FINAL DRIVE BEVEL

27311-24A03

Unavailable

1B

GEAR, FINAL DRIVEN BEVEL | Includes Item(s) 2 - 34

27320-38B00

Unavailable

2

CIRCLIP

08331-31526

Unavailable

3

.BEARING (28X68X18) | MODEL H/J/L/M This part replaces 09262-28009.

09262-28023

$127.87

3

BEARING (28X68X18) | MODEL N/P/R/S

09262-28023

$127.87

4

STOPPER, FINAL DRIVE BEARING | ~F.NO.100643,D:67.6,W:3.527312-24A02 USED WITH09280-64003 This part replaces 27312-24A01.

27312-24A02

$74.08

4

STOPPER, BEARING | F.NO.100644~,D:66,W:4.3

27312-24A02

$74.08

5

PLATE, STOPPER

27313-38B00

$7.37

6

PLATE, STOPPER

27313-38B10

$7.37

7

O RING (D:2.1,ID:66.2) | ~F.NO.100643

09280-67004

$4.10

7

O RING (D:3.1,ID:63.9) | F.NO.100644~

09280-64003

$5.64

8

WASHER

09160-54001

Unavailable

9

.SHIM SET,FINAL DRIVE GEAR (T | T:0.3/0.35/0.4/0.5/0.6

27445-24810

$28.18

10

OIL SEAL (45.5X58X7) | MODEL H/J/L/M This part replaces 09283-47001.

09283-47002

$17.18

10

OIL SEAL (47X58X7) | MODEL N/P/R/S

09283-47002

$17.18

11

COUPLING, FINAL DRIVE GEAR

27172-24A00

$59.80

12

WASHER (16X29X4)

09160-16029

$6.35

13

NUT

09159-16003

$4.00

14

BOLT,STUD This part replaces 01421-10258.

01421-1025B

$3.16

15

BEARING (20X34X18)

09263-20062

$46.98

16

BEARING, RH

09262-85001

$202.27

17

SHIM SET, FINAL DRIVEN GEAR | T:0.35/0.4/0.5/0.6

27327-38810

$108.97

18

OIL SEAL

09289-70002

$62.05

19

BEARING, LH

09263-35004

$73.18

20

SHIM (T:0.95)

09160-35008

$4.92

20A

SHIM SET, FINAL DRIVE GEAR | T:1.05/1.1/1.2/1.25/1.35/1.4/1.45/1.5 This part replaces 27326-45810.

27326-45811

Unavailable

21

HOLDER, BEARING

27329-45100

Unavailable

22

SCREW | MODEL H/J/L/M/N/P This part replaces 02112-06128.

02112-06127

$1.84

22

SCREW | MODEL R/S This part replaces 02112-06123.

02112-0612A

$1.49

23

OIL SEAL

09283-35033

$14.73

24

CASE, FINAL GEAR

27450-38B01

Unavailable

25

CASE, FINAL GEAR BEARING

27461-38B00

$239.92

26

STUD BOLT

27481-38A01

$12.47

27

BOLT | MODEL H/J/L/M/N/P This part replaces 01517-08258.

01550-08257

$2.81

27

BOLT | MODEL R/S This part replaces 01550-08253.

01550-0825A

$2.32

28

BOLT (10X20) | MODEL H/J/L/M/N/P This part replaces 01517-10257.

01550-1025A

$3.05

28

BOLT (10X20) | MODEL R/S This part replaces 01550-10253.

01550-1025A

$3.05

29

PLUG, OIL FILLER

09259-30007

$18.39

30

O RING (D:3.1,ID:26.4) This part replaces 09280-27002.

09280-26006

$2.76

31

PLUG, OIL DRAIN This part replaces 09247-14019.

09247-14036

$6.17

32

GASKET (14.1X18.0X1.5) | MODEL H/J/L/M/N/P

09168-14004

$1.83

32

GASKET (13.8X18.8X0.4) | MODEL R/S

09168-14002

$2.26

33

WASHER

09164-10008

$1.71

34

NUT

09159-10026

$6.20

35

SPRING

09440-30008

$3.72

36

CICLIP

09381-40003

$4.64

37

OIL SEAL

09283-30026

$10.40

38

YOKE,UNIVERSAL This part replaces 27100-38B00.

27100-38B01

$348.15

39

SHAFT, PROPELLER

27151-38B00

$229.75
