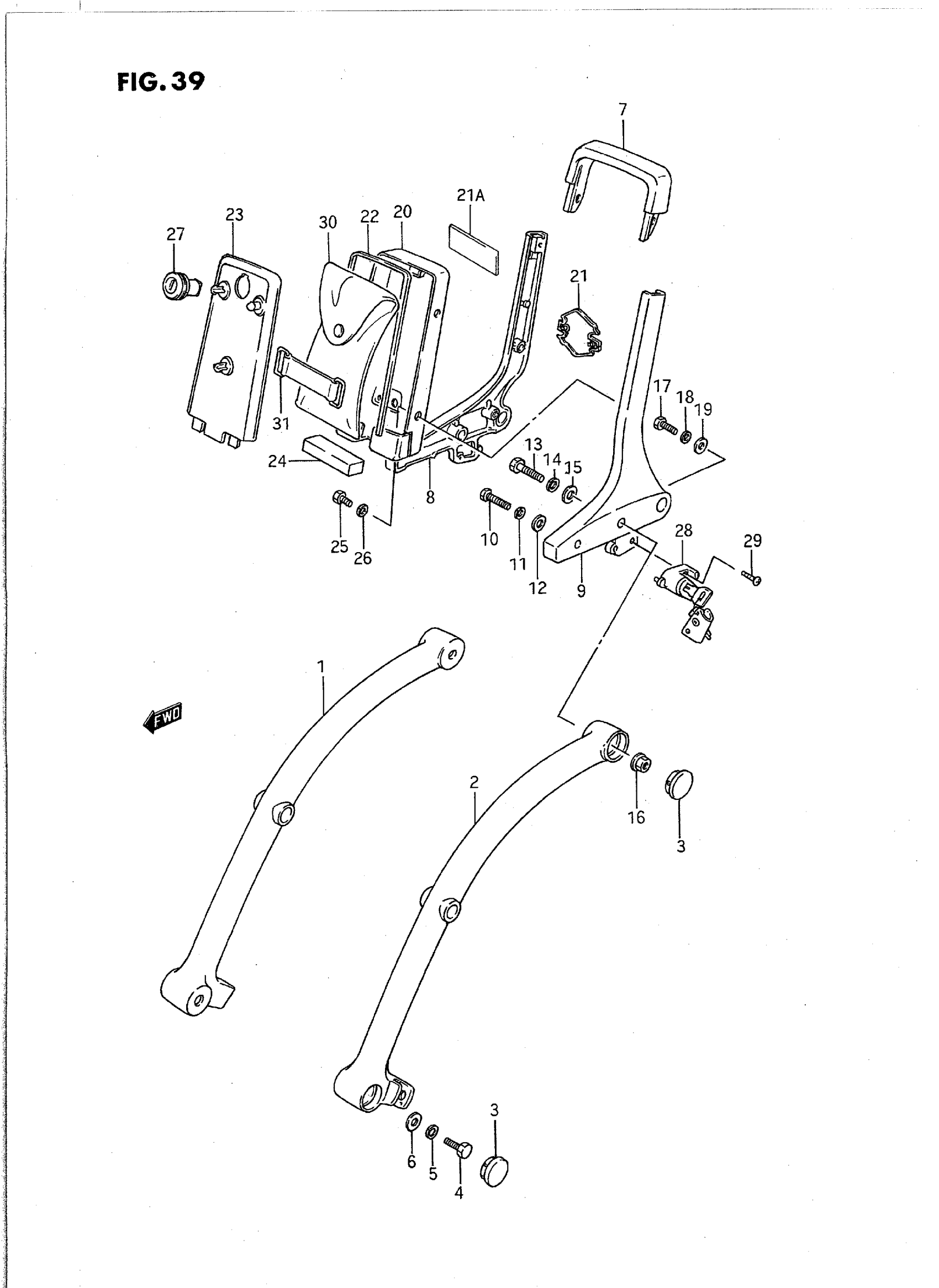

Suzuki VS1400GLPS (1995) PILLION RIDER HANDLE Diagram

#

Description
Price

1

GRIP, FRAME HANDLE RH This part replaces 41610-38B00.

41610-38B10

Unavailable

2

GRIP, FRAME HANDLE LH This part replaces 41620-38B00.

41620-38B10

Unavailable

3

CAP

95673-24A00

$5.80

4

BOLT, REAR | MODEL H/J/L/M/N/P/R

01500-08207

$2.53

4

BOLT | MODEL S This part replaces 01580-08203.

01580-0820A

$3.30

5

.LOCK WASHER

08321-01087

$2.13

6

WASHER

08322-01087

$2.13

7

HANDLE, PILLION RIDER UPPER | MODEL H/J/L/M/N/P/R This part replaces 46211-38B00.

46211-38B01

Unavailable

7

HANDLE, PILLION RIDER UPPER | MODEL S

46211-38B01

Unavailable

8

NO DESCRIPTION AVAILABLE | MODEL H/J/L/M/N/P/R This part replaces 46212-38B00.

46212-38B11

Unavailable

8

NO DESCRIPTION AVAILABLE | MODEL S This part replaces 46212-38B10.

46212-38B11

Unavailable

9

HANDLE,PILLION | MODEL H/J/L/M/N/P/R This part replaces 46213-38B00.

46213-38B11

Unavailable

9

HANDLE,PILLION | MODEL S This part replaces 46213-38B10.

46213-38B11

Unavailable

10

BOLT | MODEL H/J/L/M/N This part replaces 01107-06406.

01500-0640B

$2.62

10

BOLT, FRONT | MODEL P/R This part replaces 01177-06406.

01580-0640B

$3.72

10

BOLT, FRONT | MODEL S This part replaces 01580-06403.

01580-0640B

$3.72

11

LOCK WASHER This part replaces 08321-01063.

08321-0106A

$1.84

12

.WASHER This part replaces 08322-01063.

08322-0106B

$2.26

13

BOLT | MODEL H/J/L/M/N/P This part replaces 01107-08458.

01500-08453

$2.50

13

BOLT, CENTER | MODEL R/S This part replaces 01580-08453.

01580-0845B

$4.68

14

LOCK WASHER This part replaces 08321-01083.

08321-0108A

$1.84

15

WASHER This part replaces 08322-01083.

08322-0108A

$1.92

16

NUT (CHROME) | MODEL H/J/L/M/N/P/R This part replaces 08316-16086.

08316-10087

$2.26

16

NUT | MODEL S This part replaces 08316-10083.

08316-1008B

$2.66

17

BOLT, GEAR SHIFT LINK | MODEL H/J/L/M/N This part replaces 01500-06203.

01500-0620A

$1.78

17

BOLT, REAR | MODEL P/R This part replaces 01177-06206.

01580-0620B

$3.30

17

BOLT, REAR | MODEL S This part replaces 01580-06203.

01580-0620B

$3.30

18

LOCK WASHER This part replaces 08321-01063.

08321-0106A

$1.84

19

.WASHER This part replaces 08322-01063.

08322-0106B

$2.26

20

HOLDER, TOOL REAR (BLACK) This part replaces 47430-38B01-22S.

47430-38B11-22S

Unavailable

21

EMBLEM | MODEL H

68261-38B00

Unavailable

21

EMBLEM | MODEL J/L/M/N/P/R/S This part replaces 68261-38A20.

68261-38A30

$37.15

21A

CUSHION

68262-38A00

Unavailable

22

MOLDING, REAR TOOL

47437-38B00

$7.95

23

HOLDER, TOOL FRONT

47441-38B00

$24.42

24

CUSHION, TOOL BACK

47438-38B00

Unavailable

25

BOLT | MODEL H/J/L/M/N/P

01500-06127

$1.97

25

BOLT | MODEL R This part replaces 01550-06163.

01550-0616A

$1.97

25

BOLT | MODEL S This part replaces 01570-06123.

01570-0612A

$2.63

26

LOCK WASHER

08321-01067

$2.13

27

LOCK SET, TOOL HOLDER

95700-24831

$71.38

28

LOCK SET, HELMET | MODEL H/J/L/M This part replaces 95700-38831.

95700-38821

$66.87

28

LOCK SET, HELMET | MODEL N/P/R/S

95700-38821

$66.87

29

SCREW

02112-05127

$1.97

30

TOOL ASSY | MODEL H/J/L/M/N/P/R

09800-21018

Unavailable

30

TOOL ASSY | MODEL S This part replaces 09800-21014.

09800-21071

$79.99

31

BAND, TOOL

09462-00008

$4.77

32

CARRIER SET, REAR | OPT,NOT SHOWN This part replaces 46300-38821.

46300-38822

Unavailable
