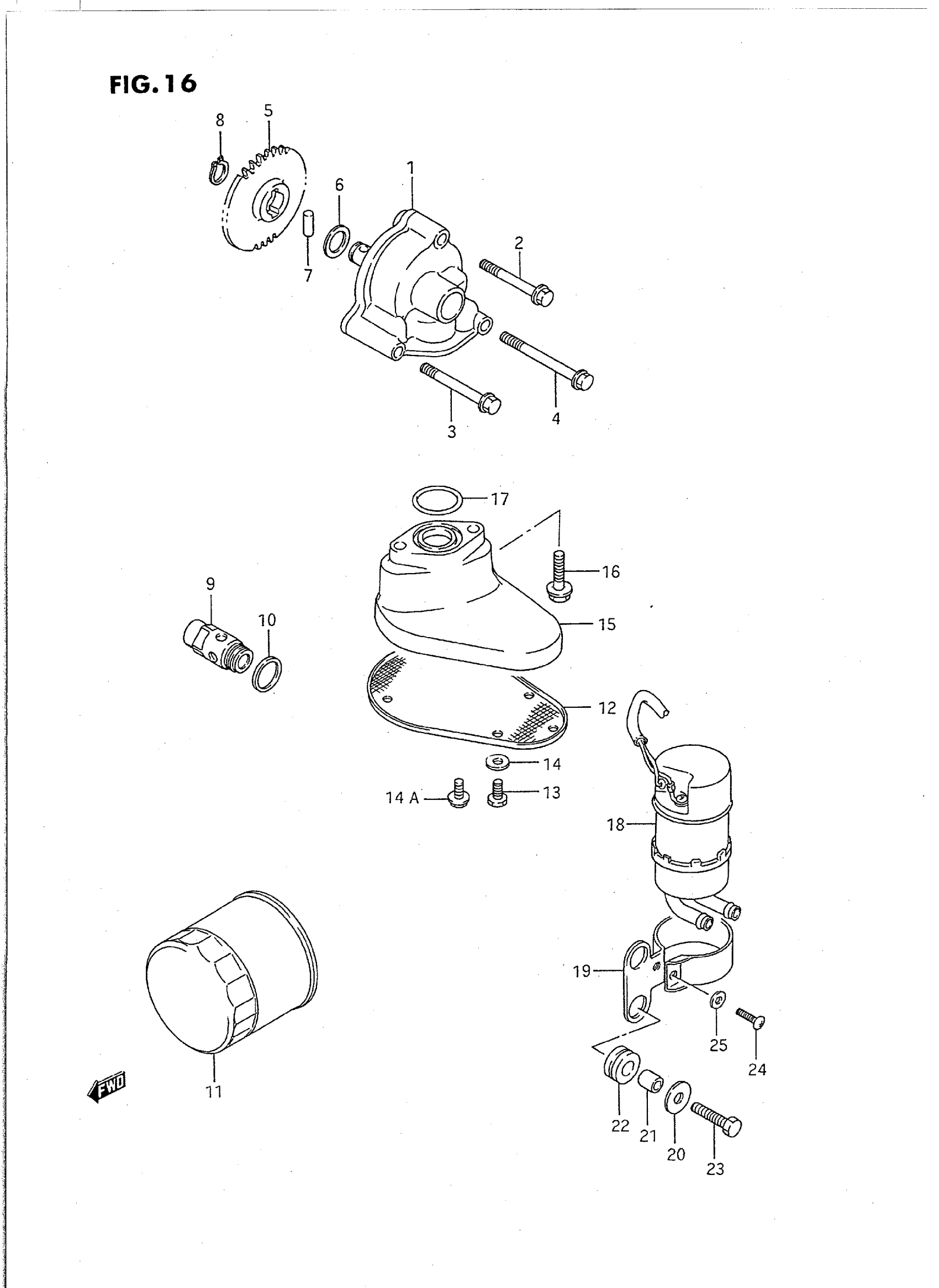

Suzuki VS1400GLPS (1995) OIL PUMP - FUEL PUMP Diagram

#

Description
Price

1

PUMP ASSY, OIL

16400-38B00

Unavailable

2

BOLT | MODEL H/J/L/M/N/P

01547-06457

$2.32

2

BOLT | MODEL R/S This part replaces 01547-06453.

01547-0645B

$2.73

3

BOLT | MODEL H/J/L/M/N/P

01547-06557

$2.32

3

BOLT | MODEL R/S This part replaces 01547-06553.

01547-0655B

$2.75

4

BOLT | MODEL H/J/L/M/N/P

01547-06657

$2.75

4

BOLT | MODEL R/S This part replaces 01547-06653.

01547-0665B

$3.18

5

GEAR, OIL PUMP DRIVEN (NT:31) This part replaces 16331-38B00.

16331-38B01

Unavailable

6

WASHER

08221-12205

$2.30

7

PIN

09261-05006

$1.49

8

CIRCLIP This part replaces 08331-31126.

08331-3112A

$1.78

9

VALVE ASSY, OIL RELIEF

16440-24A01

Unavailable

10

GASKET

09168-16002

$1.91

11

FILTER, ENGINE OIL This part replaces 16510-06B01.

16510-07J00

$13.10

12

STRAINER, OIL

16520-38B10

Unavailable

13

BOLT | MODEL H/J/L/M/N/P/R This part replaces 01107-05108.

01500-0510B

$1.80

14

WASHER | MODEL H/J/L/M/N/P/R This part replaces 08322-21057.

08322-01057

$2.13

14A

BOLT | MODEL S This part replaces 01550-05103.

01550-0510A

$2.43

15

HOLDER, OIL STRAINER

16525-38B10

Unavailable

16

BOLT | MODEL H/J/L/M/N/P This part replaces 01517-06257.

01550-06257

$2.30

16

BOLT | MODEL R/S This part replaces 01550-06253.

01550-0625A

$1.97

17

O RING (D:3.1,ID:22.7)

09280-22008

$2.27

18

PUMP ASSY,FUEL This part replaces 15100-38A00.

15100-38A01

$236.61

19

BRACKET, FUEL PUMP

15110-38B01

Unavailable

20

.WASHER (6.5X20X1.6) | MODEL H/J/L/M/N/P/R This part replaces 09160-06102.

09160-06088

$1.65

20

.WASHER (6.5X20X1.6) | MODEL S

09160-06088

$1.65

21

SPACER | MODEL H/J/L/M/N This part replaces 09180-06143.

09180-06286

$2.50

21

SPACER | MODEL P/R/S This part replaces 09180-06167.

09180-06286

$2.50

22

CUSHION

09320-10015

$2.54

23

BOLT, GEAR SHIFT ARM | MODEL H/J/L/M/N/P/R This part replaces 01107-06255.

01500-0625A

$1.78

23

BOLT | MODEL S

01500-06257

$1.97

24

SCREW | MODEL H/J/L/M/N/P/R This part replaces 02112-04165.

02112-0416A

$1.49

24

SCREW | MODEL S

02142-04167

Unavailable

25

WASHER This part replaces 08322-21045.

08322-0104A

$1.91
