1995 Suzuki VS1400GLPS OIL Cooler Diagram

← All diagrams

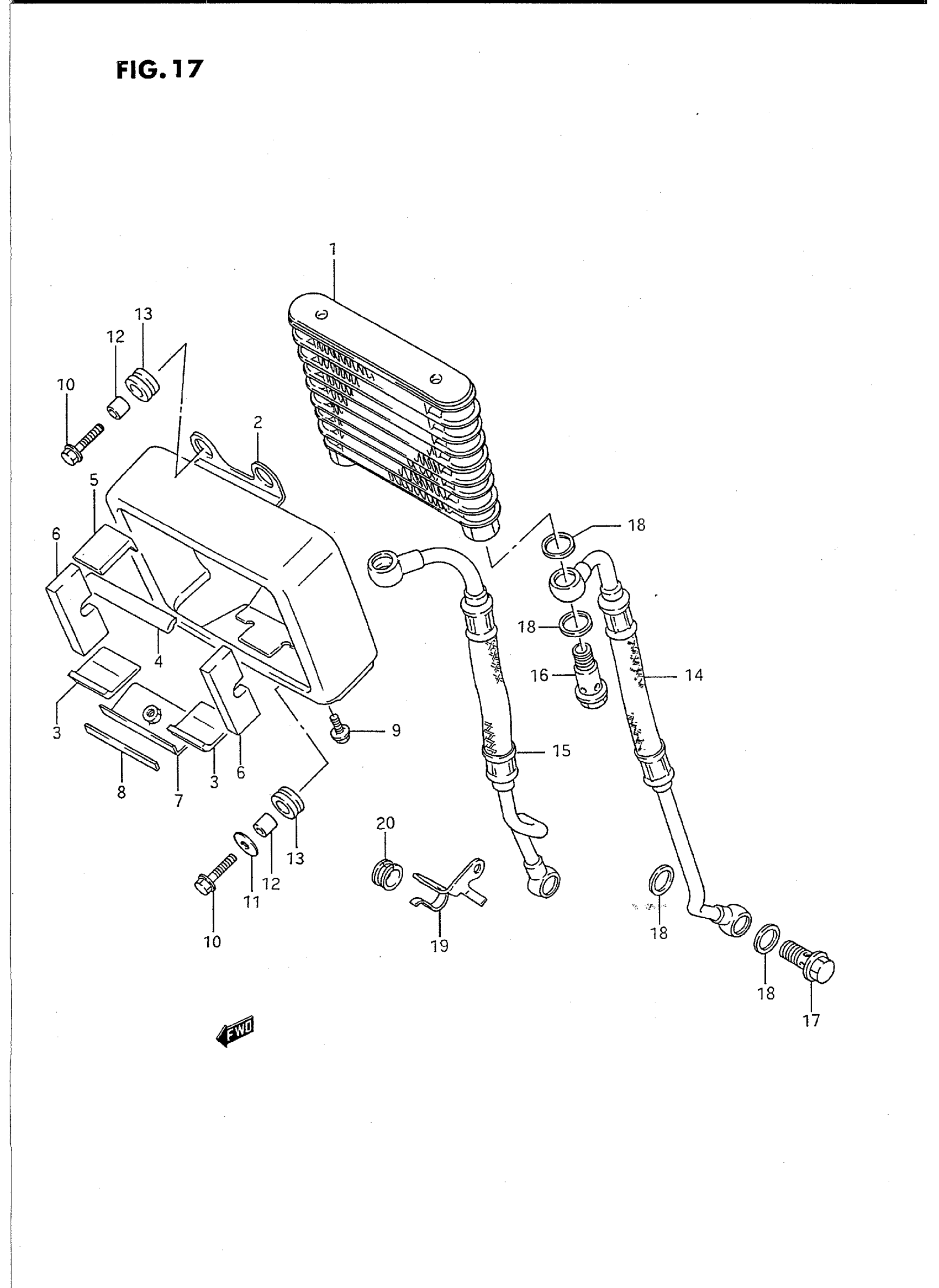

Find the part on the OIL Cooler diagram for your 1995 Suzuki VS1400GLPS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1995 Suzuki VS1400GLPS OIL Cooler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COOLER ASSY, OIL

16600-38B00

1
Out of stock

2

COVER, OIL COOLER

16620-38B01

1
Out of stock

3

CUSHION, LOWER

16626-38B01

2
Out of stock

4

CUSHION, UPPER

16627-38B01

1
Out of stock

5

CUSHION, UPPER

16628-38B00

2
Out of stock

6

CUSHION, SIDE

16629-38B01

2
Out of stock

7

BRACKET

16630-38B00

1
Out of stock

8

CUSHION

16639-38B00

1
Out of stock

9

BOLT

01547-06107

1
Out of stock

10

BOLT

01547-06257

4
Out of stock

11

WASHER (6.5X20X1.6)

09160-06066

2
Out of stock

12

SPACER (6.5X10X10) This part replaces 09180-06030.

09180-06310

4
Out of stock

13

CUSHION

09320-10015

4
Out of stock

14

HOSE, OIL COOLER LH | MODEL H/J/L/M/N/P/R This part replaces 16460-38B00.

16460-38B01

1
Out of stock

14

HOSE, OIL COOLER LH | MODEL S

16460-38B01

1
Out of stock

15

HOSE, OIL COOLER RH | MODEL H/J/L/M/N/P/R This part replaces 16470-38B00.

16470-38B01

1
Out of stock

15

HOSE, OIL COOLER RH | MODEL S

16470-38B01

1
Out of stock

16

UNION BOLT, COOLER SIDE

09360-12006

2
Out of stock

17

UNION BOLT, ENGINE SIDE

09360-14009

2
Out of stock

18

GASKET (14X20X1.5)

09168-14011

8
Out of stock

19

CLAMP, OIL COOLER HOSE RH

16479-38B00

1
Out of stock

20

CUSHION This part replaces 09320-10039.

09320-10075

1
Out of stock
