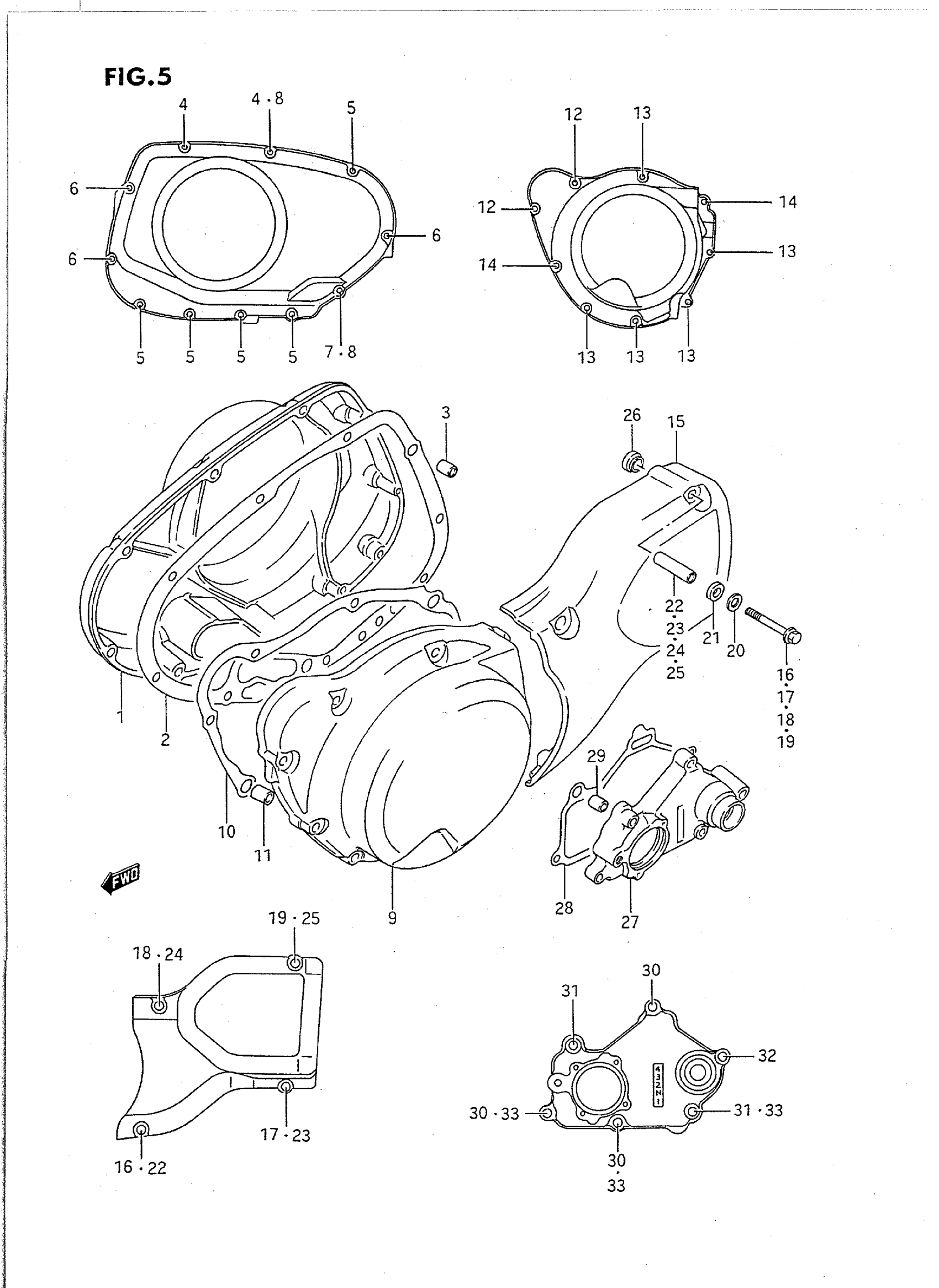

Suzuki VS1400GLPS (1995) CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CLUTCH This part replaces 11341-38B00.

11341-38B01

Unavailable

2

GASKET, CLUTCH COVER | MODEL H/J/L This part replaces 11482-38B00.

11482-38B20

$21.12

2

GASKET, CLUTCH COVER | MODEL M/N/P/R/S This part replaces 11482-38B00-H17.

11482-38B20

$21.12

3

PIN

04211-09189

$1.64

4

BOLT

01547-06257

$2.01

5

BOLT

01547-06307

$2.06

6

BOLT

01547-06407

$2.34

7

BOLT

01547-06557

$2.34

8

GASKET (5.8X13X1.2) | MODEL H/J/L/M/N/P/R

09168-06023

$2.01

8

GASKET (5.8X11X1.2) | MODEL S

09168-06024

$2.19

9

COVER, GENERATOR

11351-38B00

$398.18

10

GASKET, GENERATOR COVER | MODEL H/J/L This part replaces 11483-38B00.

11483-38B10

$10.80

10

GASKET, GENERATOR COVER | MODEL M/N/P/R/S This part replaces 11483-38B00-H17.

11483-38B10

$10.80

11

PIN (11X20) This part replaces 09206-11005.

09206-11017

$6.85

12

BOLT

01547-06307

$2.06

13

BOLT

01547-06357

$2.01

14

BOLT

01547-06457

$2.31

15

COVER, SECONDARY CASE

11361-38B00

Unavailable

16

BOLT

01547-06307

$2.06

17

BOLT

01547-06357

$2.01

18

BOLT

01547-06557

$2.34

19

BOLT

01547-06607

$3.47

20

WASHER This part replaces 09160-06097.

09160-06125

$1.89

21

CUSHION, OUTER

09161-09006

$2.36

22

SPACER (L:18.2)

09180-06180

Unavailable

23

SPACER (L:23)

09180-06181

Unavailable

24

SPACER (L:43)

09180-06182

Unavailable

25

SPACER (L:45.9) This part replaces 09180-06183.

09180-06281

$9.33

26

CUSHION, INNER

09161-09005

$2.33

27

COVER, GEAR SHIFT

11371-38B01

Unavailable

28

GASKET, GEAR SHIFT COVER | MODEL H/J/L This part replaces 11485-38B00.

11485-38B20

$8.57

28

GASKET, GEAR SHIFT COVER | MODEL M/N/P/R/S This part replaces 11485-38B00-H17.

11485-38B20

$8.57

29

PIN

04211-09109

$1.64

30

BOLT

01547-06257

$2.01

31

BOLT

01547-06357

$2.01

32

BOLT

01547-06457

$2.31

33

GASKET (5.8X13X1.2) | MODEL H/J/L/M/N/P/R

09168-06023

$2.01

33

GASKET (5.8X11X1.2) | MODEL S

09168-06024

$2.19
