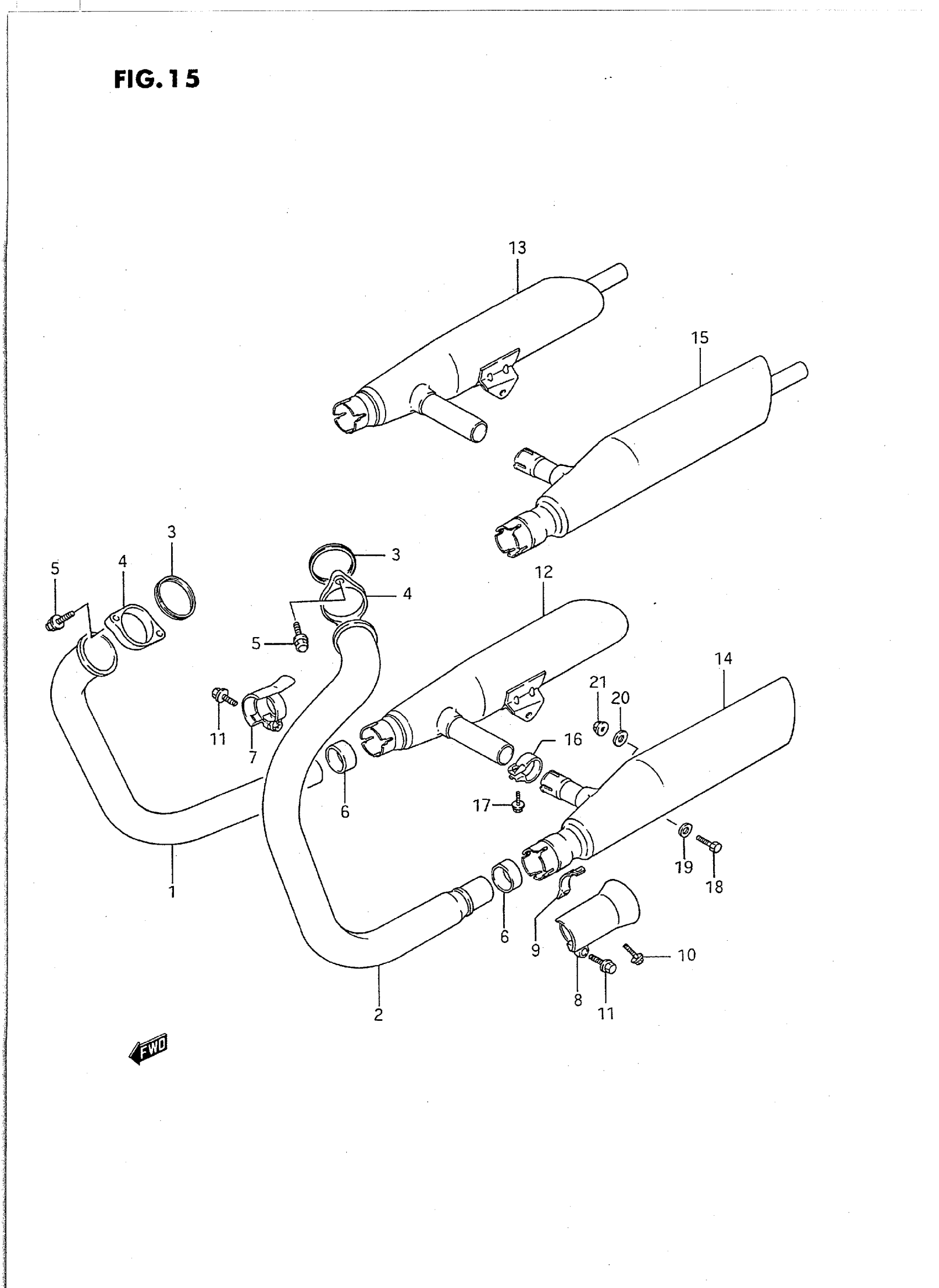

Suzuki VS1400GLPS (1995) MUFFLER Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL H/J This part replaces 14150-38B02.

14150-38B03

Unavailable

1

PIPE, EXHAUST RH | MODEL L/M/N/P/R/S This part replaces 14150-38B20.

14150-38B21

Unavailable

2

NO DESCRIPTION AVAILABLE | MODEL H/J This part replaces 14160-38B02.

14160-38B03

Unavailable

2

PIPE, EXHAUST LH | MODEL L/M/N/P/R/S This part replaces 14160-38B20.

14160-38B21

Unavailable

3

GASKET, EXHAUST PIPE

14181-45C00

$7.38

3A

BOLT, EXHAUST DRAIN

01547-06127

$1.65

4

CLAMP, EXHAUST PIPE | MODEL H/J This part replaces 14182-38B00.

14182-38A02

$42.45

4

CLAMP, EXHAUST PIPE | MODEL L/M/N/P/R/S This part replaces 14182-38A01.

14182-38A02

$42.45

5

BOLT

09104-08026

$3.76

6

CONNECTOR, MUFFLER | MODEL H/J This part replaces 14771-24B00.

14771-24B01

$33.70

6

CONNECTOR, MUFFLER | MODEL L/M/N/P/R This part replaces 14771-38B00.

14771-38B01

$27.97

6

CONNECTOR, MUFFLER | MODEL S

14771-38B01

$27.97

7

CLAMP, MUFFLER CONNECTOR RH

14450-38B02

$68.22

8

CLAMP, MUFFLER CONNECTOR LH

14460-38B02

$78.77

9

CLAMP, MUFFLER CONNECTOR LH

14785-24A00

$8.52

10

BOLT

01547-06207

$2.01

11

BOLT (8X40) | MODEL H This part replaces 09103-08225.

09103-08256

$5.20

11

BOLT (L:35) | MODEL J/L/M/N/P/R/S

09103-08241

$5.00

12

NO DESCRIPTION AVAILABLE | MODEL H/J This part replaces 14310-38B02-H01.

14310-38B51

Unavailable

12

MUFFLER, RH | MODEL L/M/N/P/R/S

14310-38B40-H01

Unavailable

13

NO DESCRIPTION AVAILABLE | MODEL H/J This part replaces 14340-38B02-H01.

14340-38B51

Unavailable

13

MUFFLER, LH | MODEL L/M/N/P/R/S

14340-38B40-H01

Unavailable

14

CLAMP, EXHAUST COUPLER

14772-38B00

$9.37

15

BOLT | MODEL H/J/L/M/N/P This part replaces 01517-06257.

01550-06257

$2.30

15

BOLT | MODEL R/S

01550-06257

$2.30

16

BOLT | MODEL H/J/L/M/N/P This part replaces 01107-08307.

01500-08307

$3.04

17

WASHER | MODEL H/J/L/M/N/P This part replaces 08322-11088.

08322-01087

$2.13

17A

BOLT | MODEL R/S

01550-08307

$3.54

18

WASHER (8.5X26X1.6) This part replaces 09160-08004.

09160-08134

$2.03

19

NUT | MODEL H/J/L/M/N This part replaces 08316-26088.

08316-20087

$2.77

19

NUT | MODEL P

08316-20087

$2.77

19

NUT | MODEL R/S This part replaces 08316-10083.

08316-1008B

$2.66
