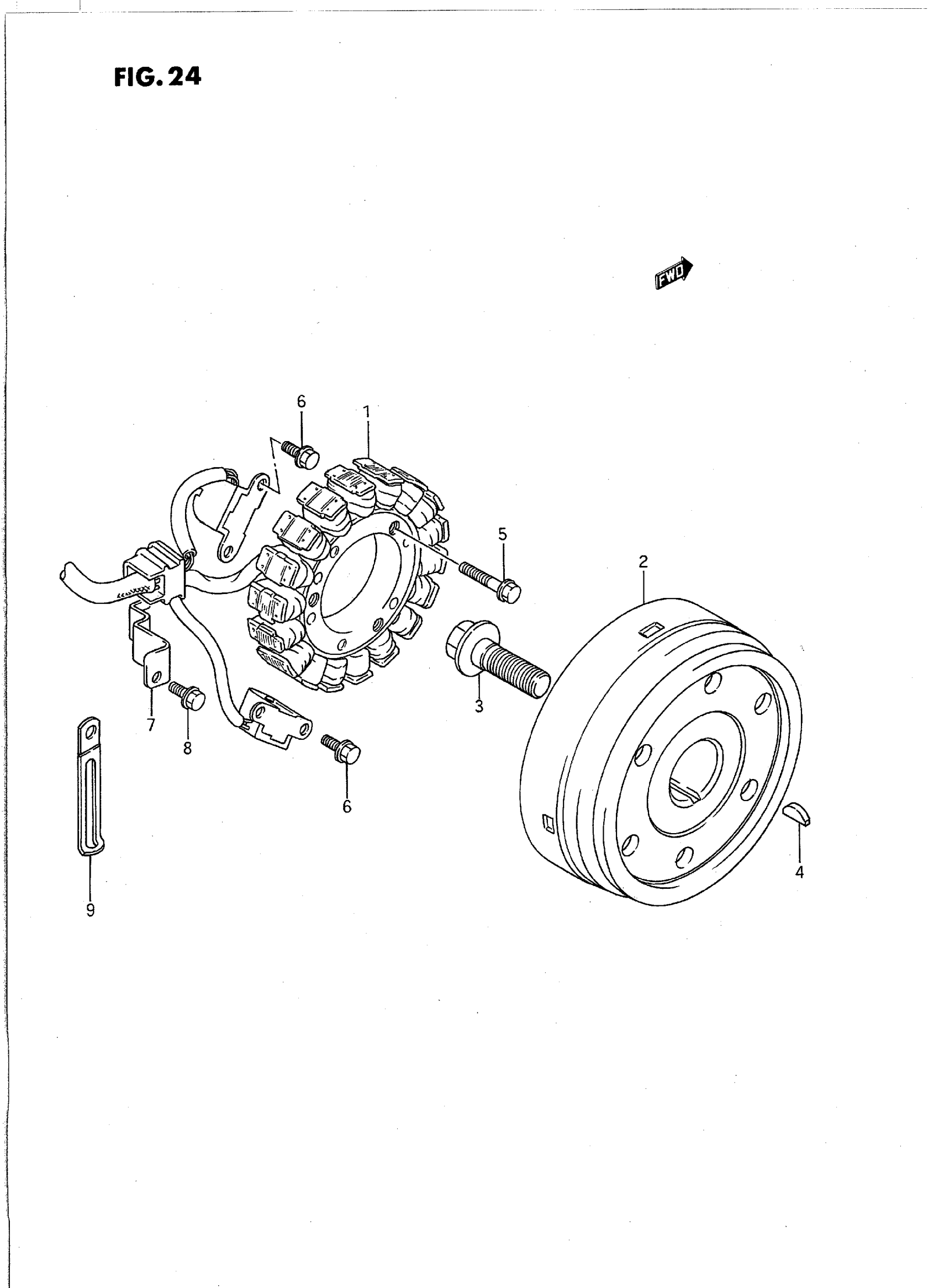

Suzuki VS1400GLPS (1995) MAGNETO Diagram

#

Description
Price

1

STATOR ASSY This part replaces 32101-38B00.

32101-38B03

$680.77

2

ROTOR | MODEL H

32102-38B00

Unavailable

2

ROTOR | MODEL J/L/M/N/P/R/S

32102-38B10

Unavailable

3

BOLT, ROTOR

09103-14001

$11.82

4

KEY

09420-05007

$4.60

5

BOLT, STATOR | MODEL H/J/M/N/P

01547-06307

$2.03

5

BOLT, FINAL GEAR CASE | MODEL R/S This part replaces 01547-06303.

01547-0630B

$2.73

6

BOLT | MODEL H/J/L/M/N/P This part replaces 01547-05108.

01547-05107

Unavailable

6

BOLT | MODEL R/S This part replaces 01547-05103.

01547-0510B

$2.97

7

CLAMP | MODEL H/J/L/M/N/P/R This part replaces 32371-38B00.

32371-45C00

$4.58

7

CLAMP, LEAD WIRE | MODEL S

32371-45C00

$4.58

8

BOLT | MODEL H/J/M/N/P This part replaces 01547-05128.

01547-0512B

$3.05

8

BOLT | MODEL R This part replaces 01547-05123.

01547-0512B

$3.05

8

BOLT | MODEL S This part replaces 01547-05103.

01547-0510B

$2.97

9

CLAMP This part replaces 09404-08402.

09404-08420

$3.16
