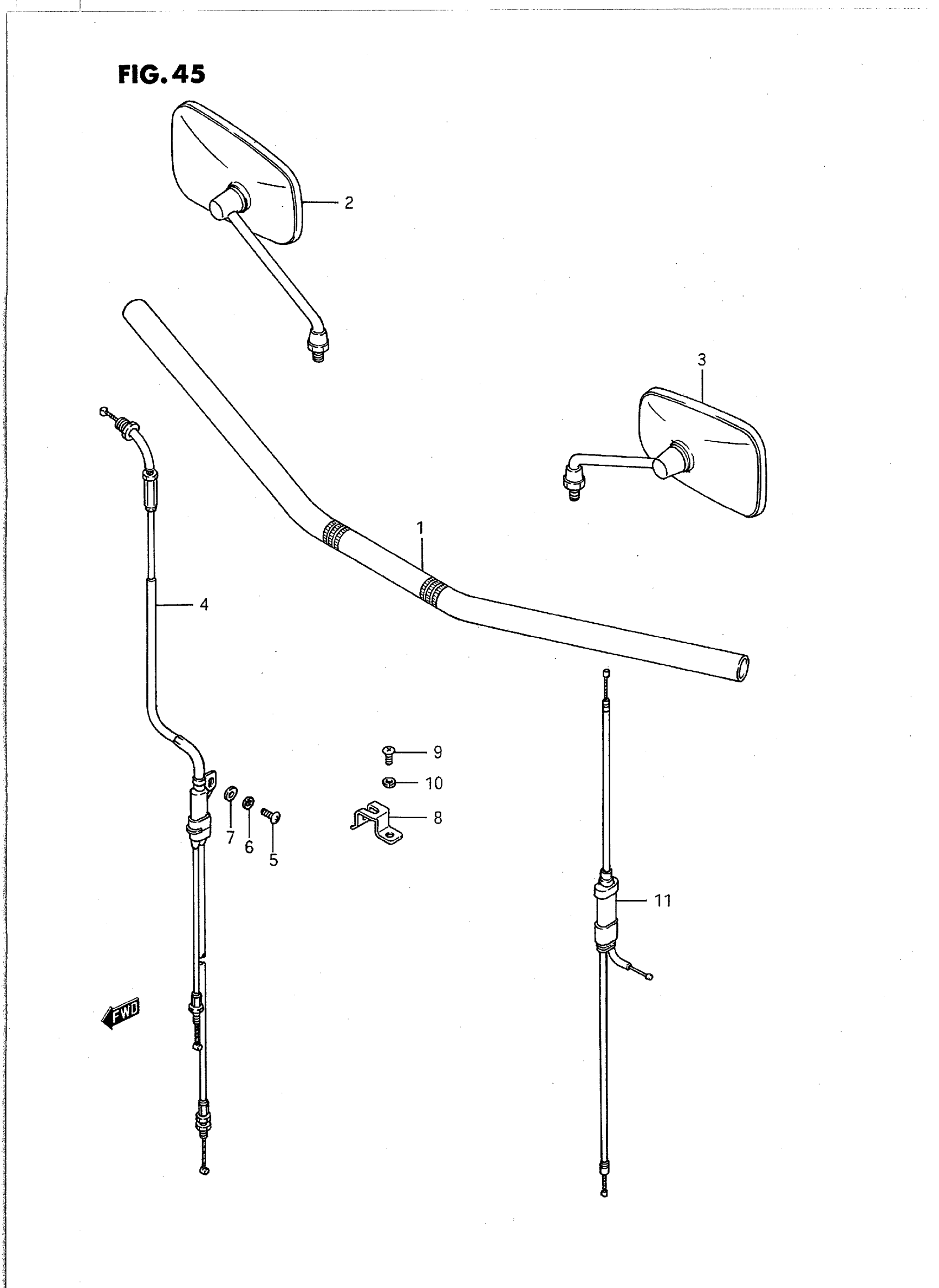

Suzuki VS1400GLPS (1995) HANDLEBAR (VS1400GLFH) Diagram

#

Description
Price

1

HANDLEBAR (FLAT TYPE) | ->56111-38B21 This part replaces 56111-38B00.

56111-38B21

Unavailable

1

HANDLEBAR (FLAT TYPE)

56111-38B21

Unavailable

2

MIRROR ASSY, REAR VIEW RH

56500-38A30

Unavailable

3

MIRROR ASSY, REAR VIEW LH

56600-38A30

Unavailable

4

CABLE ASSY,THRO This part replaces 58300-38B00.

58300-38B02

Unavailable

5

SCREW This part replaces 02112-05168.

02112-05167

$1.97

6

LOCK WASHER This part replaces 08321-21057.

08321-0105A

$1.84

7

WASHER This part replaces 08322-21057.

08322-01057

$2.13

8

CLAMP, THROTTLE CABLE

58621-38B00

$6.38

9

SCREW

02112-05107

$1.49

10

LOCK WASHER This part replaces 08321-21057.

08321-0105A

$1.84

11

CABLE, STARTER This part replaces 58400-38B01.

58400-39B00

$36.08

12

REFER TO FIG.46 (G-10) FOR

SPECIAL NOTE

Unavailable
