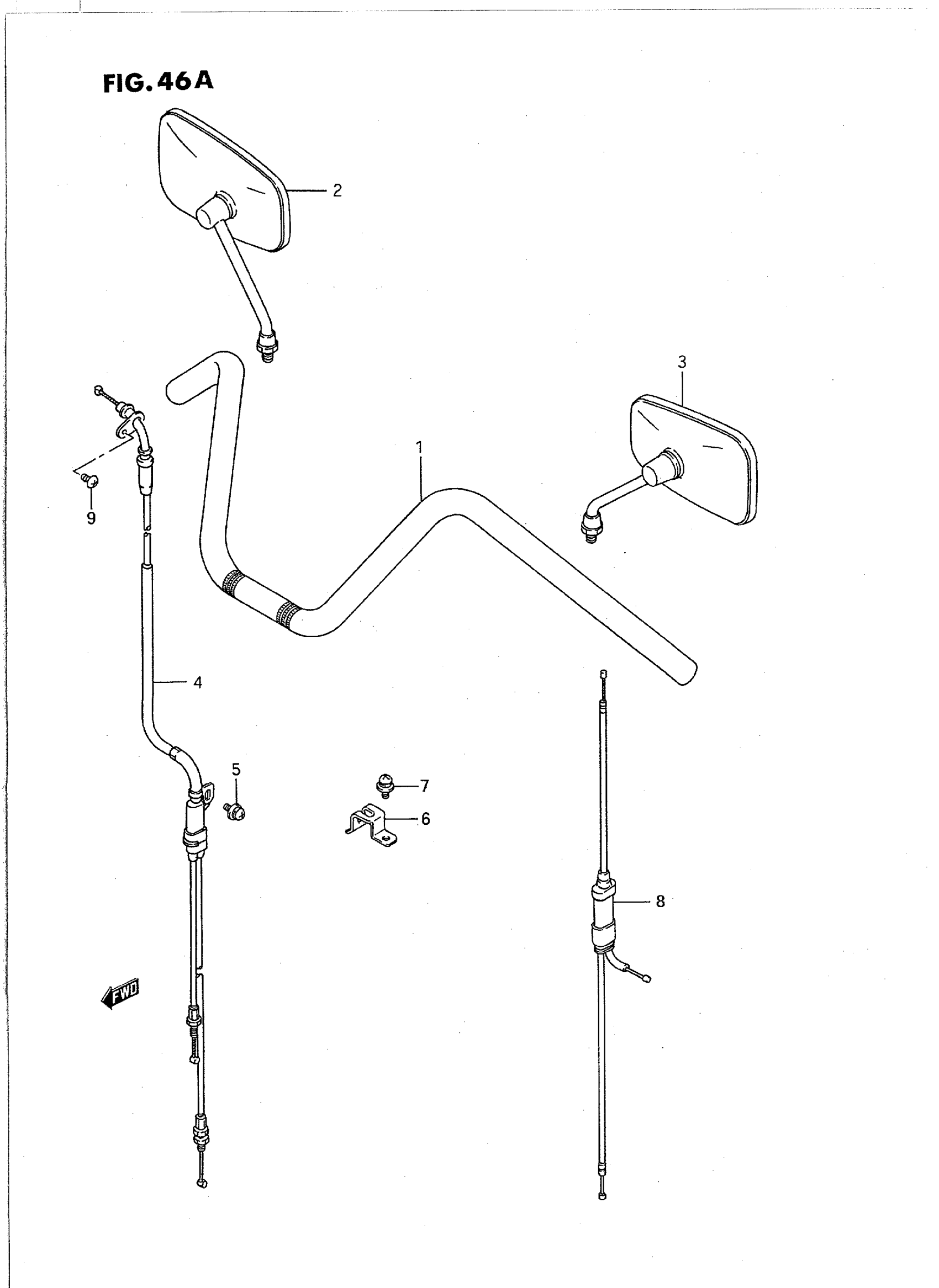

Suzuki VS1400GLPS (1995) HANDLEBAR (MODEL S) Diagram

#

Description

Price

1

HANDLEBAR (PULL BACK TYPE)

56111-38B32

Unavailable

2

MIRROR ASSY,RR This part replaces 56500-38B00.

56500-38B02

$81.00

3

MIRROR ASSY,RR This part replaces 56600-38B00.

56600-38B02

$79.87

4

CABLE ASSY, THROTTLE

58300-38B30

$94.59

5

SCREW This part replaces 02112-75163.

02112-7516A

$2.41

6

CLAMP, THROTTLE CABLE

58621-38B00

$6.38

7

SCREW This part replaces 02112-75163.

02112-7516A

$2.41

8

CABLE, STARTER This part replaces 58400-38B01.

58400-39B00

$36.08

9

SCREW

02142-05087

$1.49
