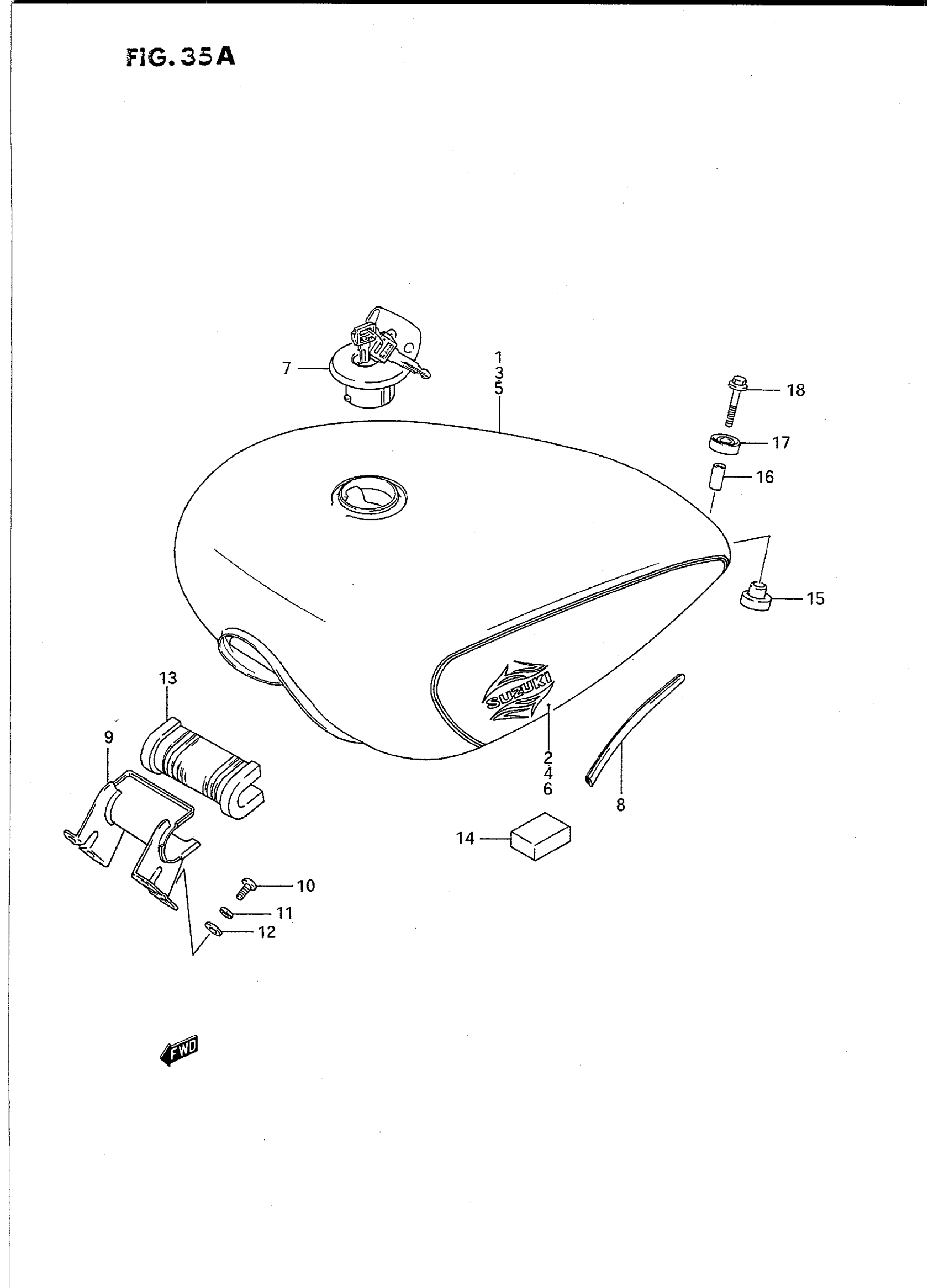

Suzuki VS1400GLPS (1995) FUEL TANK (MODEL L/M/N) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL L This part replaces 44100-38B60-33J.

44100-38B70-33J

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL M This part replaces 44100-38B60-0FJ.

44100-38B70-0FJ

Unavailable

1

NO DESCRIPTION AVAILABLE | CALIFORNIA ONLY,MODEL L This part replaces 44100-38B80-33J.

44100-38B81-13Z

Unavailable

1

TANK ASSY, FUEL (BLUE) | CALIFORNIA ONLY,MODEL M; Includes Item(s) 2 - 2

44100-38B80-0FJ

Unavailable

2

TAPE SET, FUEL TANK | MODEL L

68110-38B00-0PB

Unavailable

2

TAPE SET, FUEL TANK | MODEL M FOR 0FJ

68110-38B00-0YU

Unavailable

3

TANK,FUEL | MODEL M This part replaces 44100-38B90-20F.

44110-38B21-YD8

Unavailable

3

TANK ASSY, FUEL (MAROON) | CALIFORNIA ONLY,MODEL M; Includes Item(s) 4

44100-39B10-20F

Unavailable

4

TAPE SET, FUEL TANK | MODEL M

68110-38B10-G72

Unavailable

5

NO DESCRIPTION AVAILABLE | MODEL N This part replaces 44100-38B60-13Z.

44100-38B70-13Z

Unavailable

5

NO DESCRIPTION AVAILABLE | MODEL N This part replaces 44100-38B60-24D.

44100-38B70-24D

Unavailable

5

NO DESCRIPTION AVAILABLE | CALIFORNIA ONLY,MODEL N This part replaces 44100-38B80-13Z.

44100-38B81-13Z

Unavailable

5

NO DESCRIPTION AVAILABLE | CALIFORNIA ONLY,MODEL N; Includes Item(s) 6 - 6 This part replaces 44100-38B80-24D.

44110-38B13-YD8

Unavailable

6

TAPE SET, FUEL TANK | MODEL N FOR 13Z

68110-38B00-1KM

Unavailable

6

TAPE SET, FUEL TANK | MODEL N FOR 24D

68110-38B00-1KN

Unavailable

7

CAP SET, FUEL TANK

44200-38820

$108.83

7

CAP SET, FUEL TANK | OPT,OTHER THAN CALIFORNIA

44200-38860

Unavailable

7

CAP SET, FUEL TANK | OPT,OTHER THAN CALIFORNIA

44200-38870

Unavailable

7

(CA)CAP,FUEL TA | CALIFORNIA ONLY This part replaces 44200-24820.

44200-24821

$144.14

8

MOLDING This part replaces 68241-27A00.

68241-04X50-00B

$27.30

9

BRACKET, FRONT (BLACK) | MODEL L This part replaces 44250-38B00-33J.

44250-38B00-019

Unavailable

9

BRACKET, FRONT (BLACK) | MODEL N This part replaces 44250-38B00-13Z.

44250-38B00-019

Unavailable

9

BRACKET, FRONT (BLACK) | MODEL M This part replaces 44250-38B00-0FJ.

44250-38B00-019

Unavailable

9

BRACKET, FRONT (BLACK) | MODEL M This part replaces 44250-38B00-20F.

44250-38B00-019

Unavailable

9

BRACKET, FRONT (BLACK) | MODEL N This part replaces 44250-38B00-24D.

44250-38B00-019

Unavailable

10

SCREW This part replaces 02142-06164.

02142-0616A

$1.49

11

LOCK WASHER This part replaces 08321-21064.

08321-0106A

$1.84

12

.WASHER This part replaces 08322-21064.

08322-0106B

$2.26

13

CUSHION, FRONT

44511-38B01

$11.38

14

CUSHION, SIDE This part replaces 44512-38B00.

56314-48B10

$7.75

15

CUSHION (9X24X18) This part replaces 09320-10020.

09320-10071

$2.60

16

SPACER This part replaces 09180-06190.

09180-06274

$3.72

17

CUSHION, REAR UPPER

09320-14013

$2.11

18

BOLT This part replaces 01550-06353.

01550-0635A

$2.32

19

REFER TO FIG.35B(F-10) FOR

SPECIAL NOTE

Unavailable
