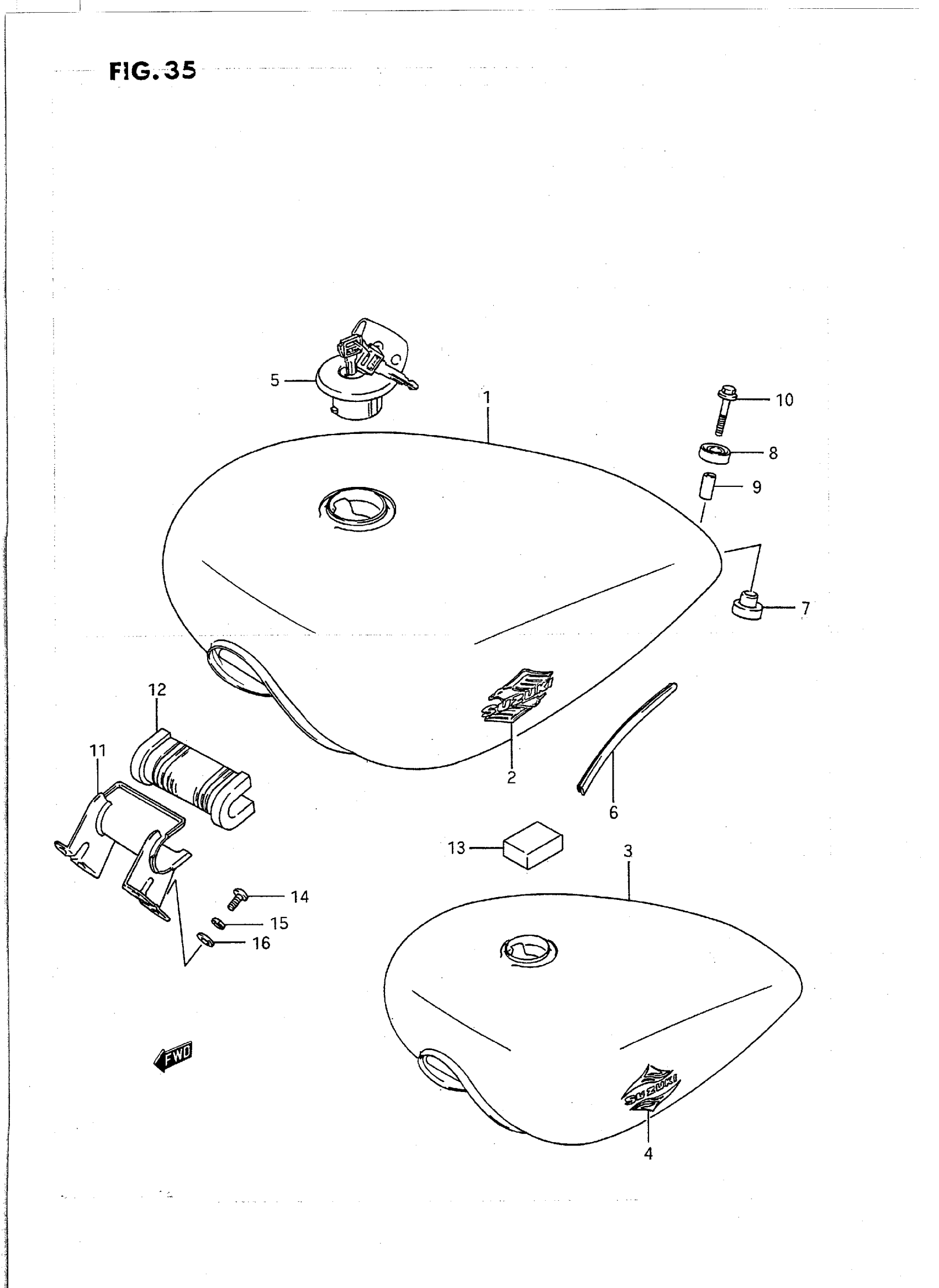

Suzuki VS1400GLPS (1995) FUEL TANK (MODEL H/J) Diagram

#

Description
Price

1

TANK,FUEL | MODEL H This part replaces 44100-38B00-24V.

44110-38B21-YD8

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL H,CALIFORNIA ONLY This part replaces 44100-38B10-24V.

44110-38B13-YD8

Unavailable

1

TANK,FUEL | MODEL H This part replaces 44100-38B00-33D.

44110-38B21-YD8

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL H,CALIFORNIA ONLY This part replaces 44100-38B10-33D.

44110-38B13-YD8

Unavailable

1

TANK,FUEL | MODEL H This part replaces 44100-38B00-33J.

44110-38B21-YD8

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL H,CALIFORNIA ONLY; Includes Item(s) 2 - 2 This part replaces 44100-38B10-33J.

44110-38B13-YD8

Unavailable

2

EMBLEM (BLUE) | MODEL H FOR 24V

68111-38A00-24W

Unavailable

2

EMBLEM (RED) | MODEL H FOR 33D This part replaces 68111-38A00-34G.

68111-38A00-22Z

Unavailable

2

EMBLEM (BLACK) | MODEL H FOR 33J This part replaces 68111-38A00-34J.

68111-38A00-23A

Unavailable

3

TANK,FUEL | MODEL J This part replaces 44100-38B30-24D.

44110-38B21-YD8

Unavailable

3

NO DESCRIPTION AVAILABLE | MODEL J,CALIFORNIA ONLY This part replaces 44100-38B50-24D.

44110-38B13-YD8

Unavailable

3

NO DESCRIPTION AVAILABLE | MODEL J This part replaces 44100-38B30-33J.

44100-38B40-33J

Unavailable

3

TANK ASSY, FUEL (BLACK) | MODEL J,CALIFORNIA ONLY; Includes Item(s) 4 - 4

44100-38B50-33J

Unavailable

4

EMBLEM | MODEL J FOR 24D

68111-38A10-38P

Unavailable

4

EMBLEM | MODEL J FOR 33J

68111-38A10-38N

Unavailable

5

CAP SET, FUEL TANK This part replaces 44200-38A00-KEY.

44200-38820

$108.83

5

(CA)CAP,FUEL TA | CALIFORNIA ONLY This part replaces 44200-24B11-KEY.

44200-24821

$144.14

5

CAP SET, FUEL TANK | OPTOTHER THAN CALIFORNIA This part replaces 44200-38A80-KEY.

44200-38860

Unavailable

5

CAP SET, FUEL TANK | OPTOTHER THAN CALIFORNIA This part replaces 44200-38A90-KEY.

44200-38870

Unavailable

6

MOLDING This part replaces 68241-40A10.

68241-04X50-00B

$27.30

7

CUSHION (9X24X18) This part replaces 09320-10020.

09320-10071

$2.60

8

CUSHION, REAR

09320-14013

$2.11

9

SPACER This part replaces 09180-06190.

09180-06274

$3.72

10

BOLT This part replaces 01550-06353.

01550-0635A

$2.32

11

BRACKET, FRONT (BLACK) | MODEL H This part replaces 44250-38B00-24V.

44250-38B00-019

Unavailable

11

BRACKET, FRONT (BLACK) | MODEL H This part replaces 44250-38B00-33D.

44250-38B00-019

Unavailable

11

BRACKET, FRONT (BLACK) This part replaces 44250-38B00-33J.

44250-38B00-019

Unavailable

11

BRACKET, FRONT (BLACK) | MODEL J This part replaces 44250-38B00-24D.

44250-38B00-019

Unavailable

12

CUSHION, FRONT

44511-38B01

$11.38

13

CUSHION, SIDE This part replaces 44512-38B00.

56314-48B10

$7.75

14

SCREW This part replaces 02142-06164.

02142-0616A

$1.49

15

LOCK WASHER This part replaces 08321-21064.

08321-0106A

$1.84

16

.WASHER This part replaces 08322-21064.

08322-0106B

$2.26

17

REFER TO FIG.35A(F-9) FOR

SPECIAL NOTE

Unavailable
