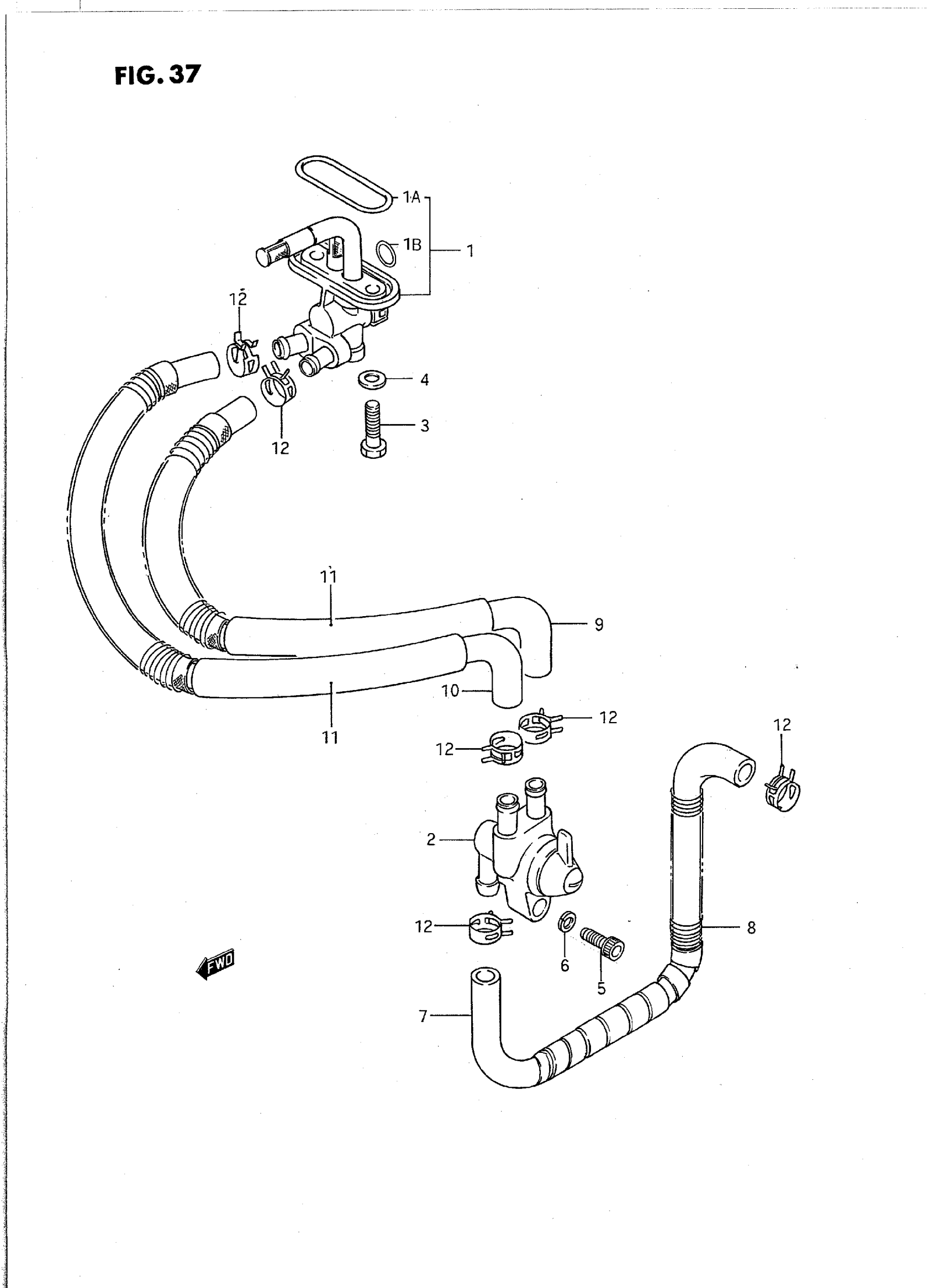

Suzuki VS1400GLPS (1995) FUEL COCK Diagram

#

Description
Price

1

COCK ASSY,FUEL | MODEL H/J/L This part replaces 44300-38B01.

44300-38B03

$117.40

1

COCK ASSY,FUEL | MODEL M/N/P/R/S; Includes Item(s) 1A - 1B This part replaces 44300-38B02.

44300-38B03

$117.40

1A

FUEL COCK O RIN This part replaces 44348-28070.

44348-28071

$5.05

1B

O RING, LEVER This part replaces 44353-12C00.

44353-12C01

$7.44

2

COCK ASSY, FUEL NO.2 | MODEL H/J/L/M/N/P/R This part replaces 44300-38B10.

44300-38B13

$172.11

2

COCK ASSY, FUEL NO.2 | MODEL S This part replaces 44300-38B12.

44300-38B13

$172.11

3

BOLT This part replaces 09128-06006.

09128-06057

$1.65

4

GASKET

09168-06026

$3.10

5

BOLT, FUEL COCK NO.2 | MODEL H/J/L/M/N/P/R

07130-05127

$3.15

5

BOLT | MODEL S This part replaces 07130-05123.

07130-0512B

$2.50

6

LOCK WASHER | MODEL H/J/L/M/N/P/R This part replaces 08321-01057.

08321-0105A

$1.84

6

LOCK WASHER | MODEL S This part replaces 08321-01053.

08321-0105A

$1.84

7

HOSE COMP,FUEL This part replaces 44420-38B01.

44420-38BR0

$42.23

8

SPRING

09440-14026

$10.81

9

HOSE,FUEL | MODEL H This part replaces 44430-38B01.

44430-38BR0

$20.88

9

HOSE,FUEL | MODEL J/L/M/N/P/R/S This part replaces 44430-38B03.

44430-38BR0

$20.88

10

HOSE,FUEL | MODEL H This part replaces 44430-38B10.

44430-38BR0

$20.88

10

HOSE, FUEL NO.2 | MODEL J/L/M/N/P/R This part replaces 44430-38B12.

44430-38BS0

$23.72

10

HOSE,FUEL | MODEL S This part replaces 44430-38B03.

44430-38BR0

$20.88

10

HOSE,FUEL | CALIFORNIA ONLY This part replaces 44430-38B20.

44430-38BR0

$20.88

11

TUBE, FUEL HOSE | MODEL H This part replaces 44310-38B00.

44311-17E01

$17.72

11

TUBE, FUEL HOSE | MODEL J This part replaces 44311-38B02.

44311-17E01

$17.72

11

TUBE, FUEL HOSE | MODEL L/M/N/P/R/S This part replaces 44423-38B00.

44423-44B00

$20.42

11

TUBE, FUEL HOSE | CALIFORNIA ONLY This part replaces 44310-38B10.

44311-17E01

$17.72

12

CLIP | MODEL H/J/L/M/N/P/R This part replaces 09401-12406.

09401-11415

$2.23

12

CLIP | MODEL S This part replaces 09401-11407.

09401-11415

$2.23
