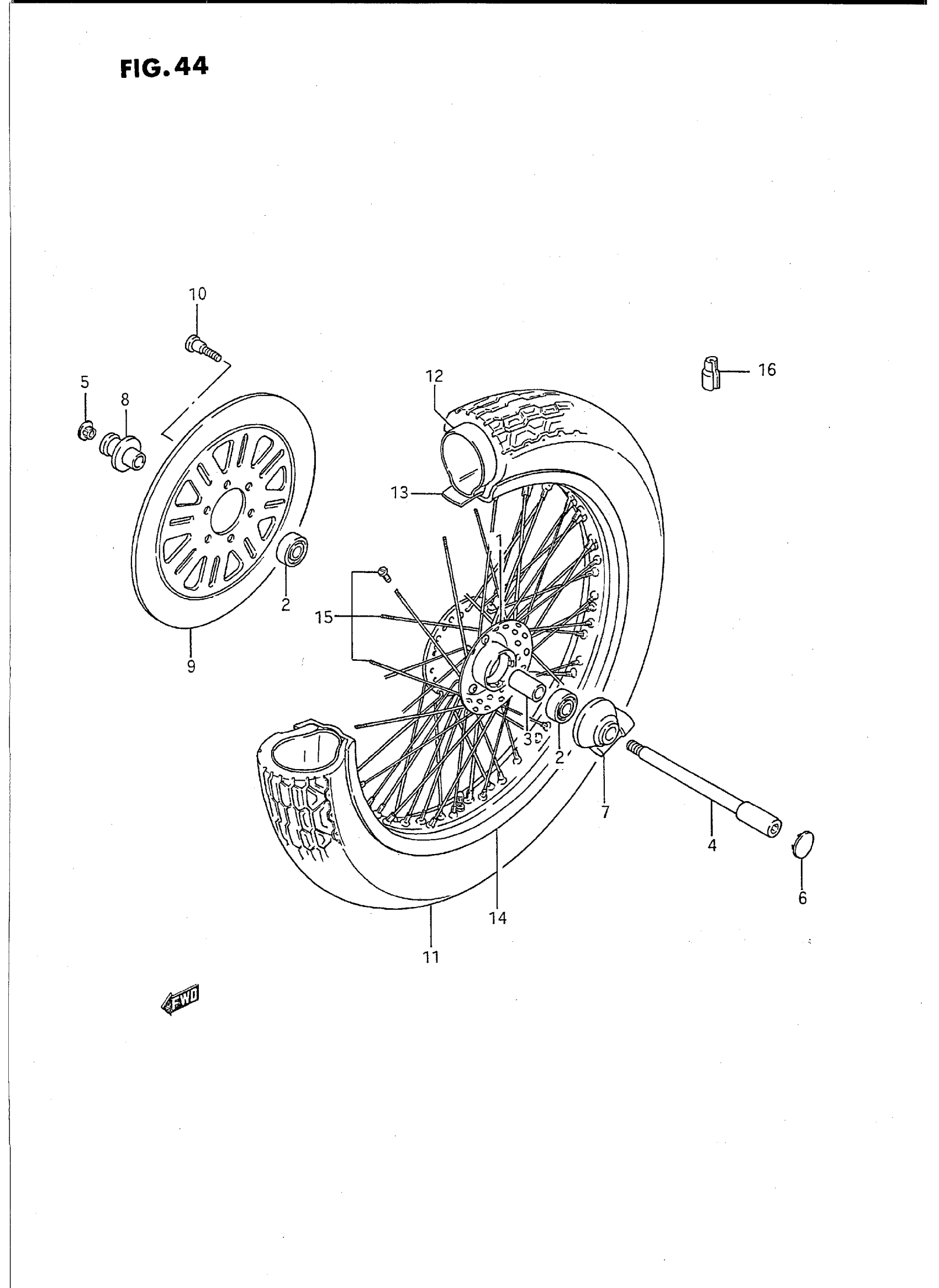

Suzuki VS1400GLPS (1995) FRONT WHEEL Diagram

#

Description
Price

1

HUB ASSY, FRONT

54110-38B00

Unavailable

2

BEARING This part replaces 08123-63027.

08123-6302B

$22.74

3

SPACER, HUB BEARING

09180-15004

$10.27

4

AXLE, FRONT

54711-38B02

$80.52

5

CAP, FRONT AXLE RH

54791-38B01

$5.58

6

CAP, FRONT AXLE LH

54792-38B00

$22.33

7

BOX ASSY,SPEEDO | MODEL H/J/L/M/N/P/R This part replaces 54600-38B01.

54600-38A12

$122.00

7

BOX ASSY,SPEEDO | MODEL S This part replaces 54600-38A11.

54600-38A12

$122.00

8

SPACER, AXLE

54750-38B00

$27.97

9

DISC, FRONT BRAKE

59211-38B00

$361.30

10

BOLT (8X33) | MODEL H/J/L/M/N/P This part replaces 09106-08062.

09106-08148

$4.80

10

BOLT (8X33) | MODEL R/S This part replaces 09106-08125.

09106-08148

$4.80

11

TIRE, FRONT (110/90-19 62H) | BRIDGESTONE

55100-38B00

Unavailable

12

TUBE This part replaces 55200-44610.

55200-44611

$33.73

13

PROTECTOR, WHEEL INNER TUBE FRONT This part replaces 55261-15010.

55261-15020

$3.15

14

RIM, WHEEL (MT2.15X19) This part replaces 55311-38B02.

55311-38B03

Unavailable

15

SPOKE SET, FRONT WHEEL

55320-38B00

Unavailable

16

BALANCER, WHEEL (20G) This part replaces 55412-38A00.

55412-41F00

$8.12

16

BALANCER WHEEL (30G) This part replaces 55413-38A00.

55413-41F00

$7.50
