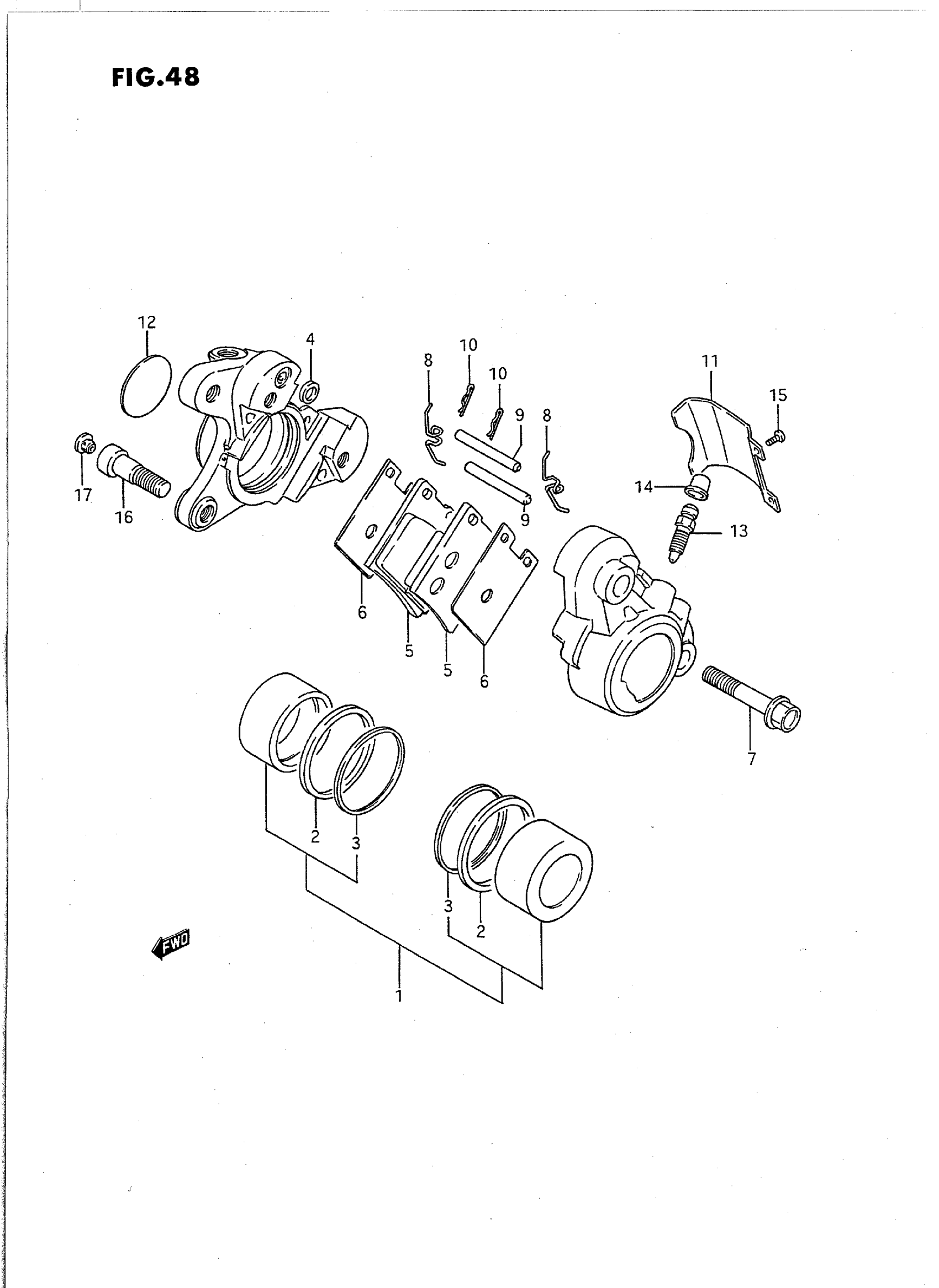

Suzuki VS1400GLPS (1995) FRONT CALIPER Diagram

#

Description
Price

CALIPER ASSY, FRONT RH | MODEL H This part replaces 59100-38B00.

59100-38B11-999

$392.92

CALIPER ASSY, FRONT RH | MODEL J/L This part replaces 59100-38B10.

59100-38B11-999

$392.92

CALIPER ASSY, FRONT RH | MODEL M/N/P/R/S; Includes Item(s) 1 - 15 This part replaces 59100-38B11.

59100-38B11-999

$392.92

1

PISTON SET | MODEL H/J/L This part replaces 59100-38810.

59100-38811

$100.27

1

PISTON SET | MODEL M/N/P/R/S

59100-38811

$100.27

2

SEAL

59107-24A00

$18.95

3

SEAL

59108-24A00

$28.10

4

SEAL

69107-34200

$10.71

5

PAD SET | MODEL H This part replaces 59130-24A00.

59100-38820

$48.07

5

PAD SET | MODEL J/L/M/N/P/R/S This part replaces 59130-38B10.

59100-38820

$48.07

6

SHIM

59371-33410

$12.57

7

BOLT

59145-16700

$8.83

8

SPRING

59143-16700

$5.80

9

PIN

69141-45000

$5.17

10

.CLIP, PAD PIN

69142-45000

$4.34

11

COVER | MODEL H/J/L/M/N/P/R This part replaces 59151-38B00.

59151-38B01

Unavailable

11

COVER | MODEL S

59151-38B01

Unavailable

12

CAP, CALIPER

59152-24A00

Unavailable

13

BLEEDER

59121-18410

$8.73

14

CAP

55156-66310

$5.17

15

SCREW (4X6) | MODEL H/J/L/M/N/P/R This part replaces 59153-38B00.

59153-38B10

$7.80

15

SCREW (4X6) | MODEL S

59153-38B10

$7.80

16

BOLT

09106-10038

$3.55

17

CAP

09250-08014

$2.85
