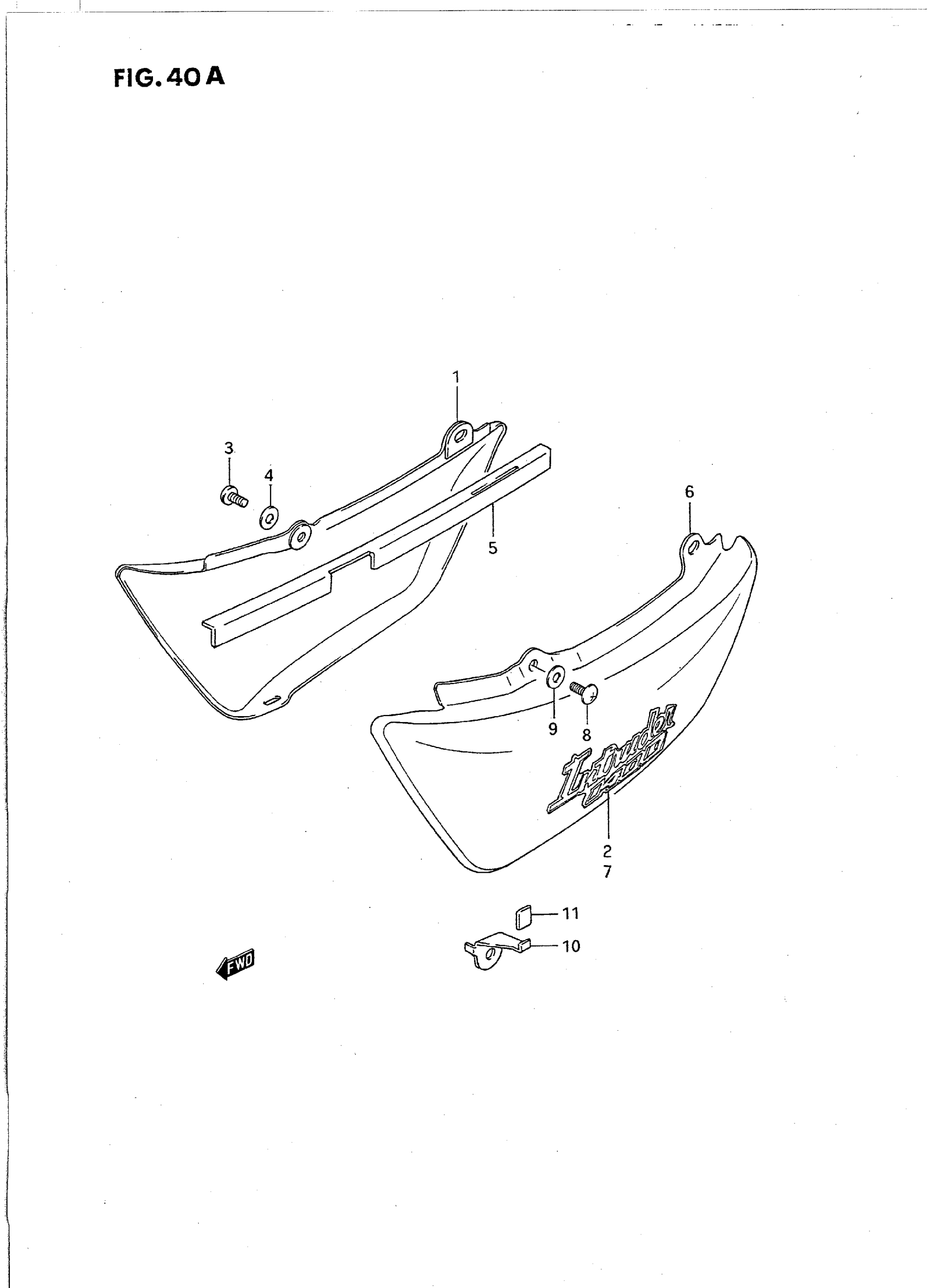

Suzuki VS1400GLPS (1995) FRAME COVER (MODEL N/P/R) Diagram

#

Description
Price

1

COVER, FRAME RH (BLACK) | MODEL N This part replaces 47100-38B10-13Z.

47110-38B00-33J

Unavailable

1

COVER, FRAME RH (BLACK) | MODEL P

47100-38B10-37X

Unavailable

1

COVER, FRAME RH (BLACK) | MODEL R This part replaces 47100-38B11-33J.

47110-38B00-33J

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL N This part replaces 47100-38B10-26X.

47100-38B11-26X

Unavailable

1

COVER, FRAME RH (MAROON) | MODEL P This part replaces 47100-38B11-2RX.

47110-38B00-20F

Unavailable

1

COVER, FRAME RH (MAROON) | MODEL R; Includes Item(s) 2 - 2

47100-38B11-2BX

Unavailable

2

NO DESCRIPTION AVAILABLE | MODEL N FOR 13Z This part replaces 68131-38B10-1KP.

68131-38B11-1KP

Unavailable

2

NO DESCRIPTION AVAILABLE | MODEL P FOR 37X This part replaces 68131-38B10-A2R.

68131-38B11-A2R

Unavailable

2

EMBLEM | MODEL R FOR 33J

68131-38B11-C1M

Unavailable

2

NO DESCRIPTION AVAILABLE | MODEL N FOR 26X This part replaces 68131-38B10-1KR.

68131-38B11-1KR

Unavailable

2

NO DESCRIPTION AVAILABLE | MODEL P FOR 20F This part replaces 68131-38B10-A6R.

68131-38B11-A6R

Unavailable

2

EMBLEM | MODEL R FOR 2BX

68131-38B11-C1L

Unavailable

3

SCREW | MODEL N/P This part replaces 02142-06125.

02142-0612A

$1.49

3

SCREW | MODEL R This part replaces 02142-06123.

02142-0612A

$1.49

4

WASHER

09160-06084

$1.78

5

PROTECTOR,FRAME This part replaces 47165-38B00.

47165-38B01

$12.73

6

COVER, FRAME LH (BLACK) | MODEL N This part replaces 47200-38B10-13Z.

47210-38B00-YAY

Unavailable

6

NO DESCRIPTION AVAILABLE | MODEL P This part replaces 47200-38B10-37X.

47200-38B11-37X

Unavailable

6

COVER, FRAME LH (BLACK) | MODEL R This part replaces 47200-38B11-33J.

47210-38B00-YAY

Unavailable

6

COVER ASSY, FRA | MODEL N This part replaces 47200-38B10-26X.

47200-38B11-26X

Unavailable

6

COVER, FRAME LH (MAROON) | MODEL P This part replaces 47200-38B11-2RX.

47210-38B00-20F

Unavailable

6

COVER, FRAME LH (MAROON) | MODEL R; Includes Item(s) 7 - 7

47200-38B11-2BX

Unavailable

7

NO DESCRIPTION AVAILABLE | MODEL N FOR 13Z This part replaces 68131-38B10-1KP.

68131-38B11-1KP

Unavailable

7

NO DESCRIPTION AVAILABLE | MODEL P FOR 37X This part replaces 68131-38B10-A2R.

68131-38B11-A2R

Unavailable

7

EMBLEM | MODEL R FOR 33J

68131-38B11-C1M

Unavailable

7

NO DESCRIPTION AVAILABLE | MODEL N FOR 26X This part replaces 68131-38B10-1KR.

68131-38B11-1KR

Unavailable

7

NO DESCRIPTION AVAILABLE | MODEL P FOR 20F This part replaces 68131-38B10-A6R.

68131-38B11-A6R

Unavailable

7

EMBLEM | MODEL R FOR 2BX

68131-38B11-C1L

Unavailable

8

SCREW | MODEL N/P This part replaces 02142-06125.

02142-0612A

$1.49

8

SCREW | MODEL R This part replaces 02142-06123.

02142-0612A

$1.49

9

WASHER

09160-06084

$1.78

10

HOOK, FRAME COVER LH

47171-38B00

$5.98

11

CUSHION, FRAME COVER HOOK

47175-38B00

$3.37

12

REFER TO FIG.40B(G- 4) FOR

SPECIAL NOTE

Unavailable
