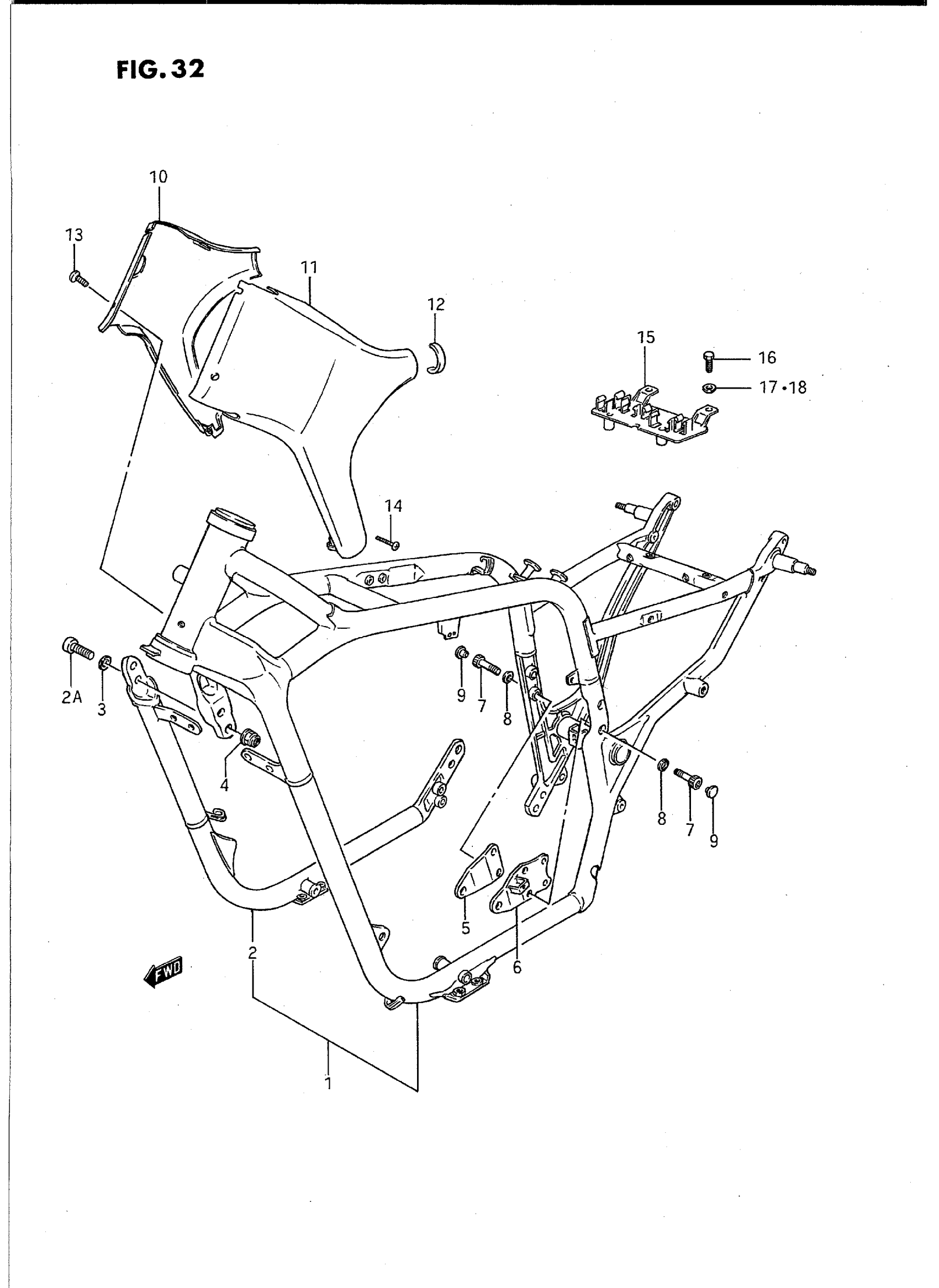

Suzuki VS1400GLPS (1995) FRAME Diagram

#

Description
Price

1

FRAME SET (BLUE) | MODEL H

41101-38810-24V

Unavailable

1

FRAME SET (BLUE) | MODEL H This part replaces 41101-38810-33D.

41101-38810-24V

Unavailable

1

FRAME SET (BLACK) | MODEL H/J/L This part replaces 41101-38810-33J.

41101-38822-33J

Unavailable

1

FRAME SET | MODEL J/N This part replaces 41101-38810-24D.

41101-38821-20F

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL M This part replaces 41101-38810-0FJ.

41101-38822-0FJ

Unavailable

1

FRAME SET | MODEL M/P This part replaces 41101-38810-20F.

41101-38821-20F

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL N/P This part replaces 41101-38810-13Z.

41101-38822-13Z

Unavailable

1

FRAME SET | MODEL R This part replaces 41101-38811-20F.

41101-38821-20F

Unavailable

1

FRAME SET (BLACK) | MODEL R This part replaces 41101-38811-33J.

41101-38822-33J

Unavailable

1

FRAME SET (BLACK) | MODEL S This part replaces 41101-38822-1ZV.

41101-38822-33J

Unavailable

1

FRAME SET (BLACK) | MODEL S; Includes Item(s) 2 - 4

41101-38822-33J

Unavailable

2

TUBE, FRAME DOWN (BLUE) | MODEL H

41140-38B00-24V

Unavailable

2

TUBE, FRAME DOWN (MAROON) | MODEL H

41140-38B00-33D

Unavailable

2

TUBE, FRAME DOWN (BLACK) | MODEL H/J/L

41140-38B00-33J

Unavailable

2

TUBE, FRAME DOWN (MAROON) | MODEL J/N

41140-38B00-24D

Unavailable

2

TUBE, FRAME DOWN (BLUE) | MODEL M

41140-38B00-0FJ

Unavailable

2

TUBE, FRAME DOWN (MAROON) | MODEL M

41140-38B00-20F

Unavailable

2

TUBE, FRAME DOWN (BLACK) | MODEL N

41140-38B00-13Z

Unavailable

2A

BOLT, REAR

09106-10019

$3.50

3

WASHER This part replaces 09164-10005.

09164-10010

$4.83

4

NUT This part replaces 08319-31105.

08319-3110A

$2.73

5

PLATE, NO.4,RH (BLACK) | MODEL H This part replaces 41951-38B00-24V.

41951-38B00-33J

Unavailable

5

PLATE, NO.4 RH (MAROON) | MODEL H

41951-38B00-33D

Unavailable

5

PLATE, NO.4 RH (BLACK) | MODEL H/J/L/R/S

41951-38B00-33J

Unavailable

5

PLATE, NO.4,RH (BLACK) | MODEL J/N This part replaces 41951-38B00-24D.

41951-38B00-33J

Unavailable

5

PLATE, NO.4,RH (BLACK) | MODEL M This part replaces 41951-38B00-0FJ.

41951-38B00-33J

Unavailable

5

PLATE, NO.4 RH (MAROON) | MODEL M/P/R

41951-38B00-20F

Unavailable

5

PLATE, NO.4 RH (BLACK) | MODEL N/P

41951-38B00-13Z

Unavailable

5

PLATE, NO.4 RH (GREEN) | MODEL S

41951-38B00-1ZV

Unavailable

6

PLATE, NO.3 LH (BLACK) | MODEL H This part replaces 41960-38B00-24V.

41960-38A10-33J

Unavailable

6

PLATE, NO.3 LH (BLACK) | MODEL H This part replaces 41960-38B00-33D.

41960-38A10-33J

Unavailable

6

PLATE, NO.4 LH (BLACK) | MODEL H/J/L/R/S

41960-38B00-33J

Unavailable

6

PLATE, NO.4 LH (MAROON) | MODEL J/N

41960-38B00-24D

Unavailable

6

PLATE, NO.4,LH (BLACK) | MODEL M This part replaces 41960-38B00-0FJ.

41960-38B00-33J

Unavailable

6

PLATE, NO.4 LH (MAROON) | MODEL M/P/R

41960-38B00-20F

Unavailable

6

PLATE, NO.4 LH (BLACK) | MODEL N/P

41960-38B00-13Z

Unavailable

6

PLATE, NO.4 LH (GREEN) | MODEL S

41960-38B00-1ZV

Unavailable

7

BOLT

09106-08072

$4.52

8

WASHER

09164-08015

$3.21

9

CAP

09250-06004

$1.49

10

NO DESCRIPTION AVAILABLE | MODEL H This part replaces 47350-38B00-24V.

47350-38B01-13Z

Unavailable

10

COVER, FRAME HEAD RH (MAROON) | MODEL H

47350-38B00-33D

Unavailable

10

COVER, FRAME HEAD RH (BLACK) | MODEL H/J/L

47350-38B00-33J

Unavailable

10

NO DESCRIPTION AVAILABLE | MODEL J/N This part replaces 47350-38B00-24D.

47350-38B01-24D

Unavailable

10

NO DESCRIPTION AVAILABLE | MODEL M This part replaces 47350-38B00-0FJ.

47350-38B01-0FJ

Unavailable

10

COVER, FRAME HEAD RH (MAROON) | MODEL M/P This part replaces 47350-38B00-20F.

47350-38B01-20F

Unavailable

10

COVER, FRAME HEAD RH (MAROON) | MODEL R

47350-38B01-20F

Unavailable

10

NO DESCRIPTION AVAILABLE | MODEL N/P This part replaces 47350-38B00-13Z.

47350-38B01-13Z

Unavailable

10

COVER, FRAME HEAD RH (BLACK) | MODEL R/S

47350-38B01-33J

Unavailable

10

COVER, FRAME HEAD RH (GREEN) | MODEL S

47350-38B01-1ZV

Unavailable

11

NO DESCRIPTION AVAILABLE | MODEL H This part replaces 47360-38B00-24V.

47360-38B01-13L

Unavailable

11

NO DESCRIPTION AVAILABLE | MODEL H This part replaces 47360-38B00-33D.

47360-38B01-13L

Unavailable

11

NO DESCRIPTION AVAILABLE | MODEL H/J/L This part replaces 47360-38B00-33J.

47360-38B01-13L

Unavailable

11

NO DESCRIPTION AVAILABLE | MODEL J/N This part replaces 47360-38B10-24D.

47360-38B11-24D

Unavailable

11

COVER, FRAME HEAD LH (BLACK) | MODEL J/L This part replaces 47360-38B10-33J.

47360-38B11-YAY

Unavailable

11

COVER, FRAME HEAD LH (BLACK) | MODEL M This part replaces 47360-38B10-0FJ.

47360-38B11-YAY

Unavailable

11

COVER, FRAME HEAD LH (MAROON) | MODEL M/P This part replaces 47360-38B10-20F.

47360-38B11-20F

Unavailable

11

COVER, FRAME HEAD LH (MAROON) | MODEL R

47360-38B11-20F

Unavailable

11

NO DESCRIPTION AVAILABLE | MODEL N/P This part replaces 47360-38B10-13Z.

47360-38B11-13Z

Unavailable

11

COVER, FRAME HEAD LH (BLACK) | MODEL R/S This part replaces 47360-38B11-33J.

47360-38B11-YAY

Unavailable

11

COVER, FRAME HEAD LH (GREEN) | MODEL S

47360-38B11-1ZV

Unavailable

12

PROTECTOR

47359-38B00

$2.38

13

SCREW | MODEL H/J/L/M/N/P This part replaces 02142-05104.

02142-0510B

$1.78

13

STOPPER, CL RLSE CAM SHAFT | MODEL R/S This part replaces 02142-06103.

02142-0610A

$1.49

14

SCREW | MODEL H/J/L/M/N/P This part replaces 02112-04254.

02112-0425B

$2.34

14

SCREW | MODEL R/S This part replaces 02112-04253.

02112-0425B

$2.34

15

HOLDER, COUPLER | MODEL H

47411-38B00

Unavailable

15

HOLDER, COUPLER | MODEL J/L/M/N/P/R/S

47411-38B02

$19.15

16

BOLT | MODEL H/J/L/M/N This part replaces 01107-06165.

01500-0616A

$1.78

16

BOLT | MODEL P/R This part replaces 01550-06163.

01550-0616A

$1.97

16

SCREW | MODEL S This part replaces 02142-16163.

02142-1616B

$2.30

17

.WASHER This part replaces 08322-21064.

08322-0106B

$2.26

18

WASHER | MODEL H/J/L/M/N/P/R This part replaces 09169-06025.

09169-06010

$2.60

18

WASHER | MODEL S

09169-06010

$2.60
