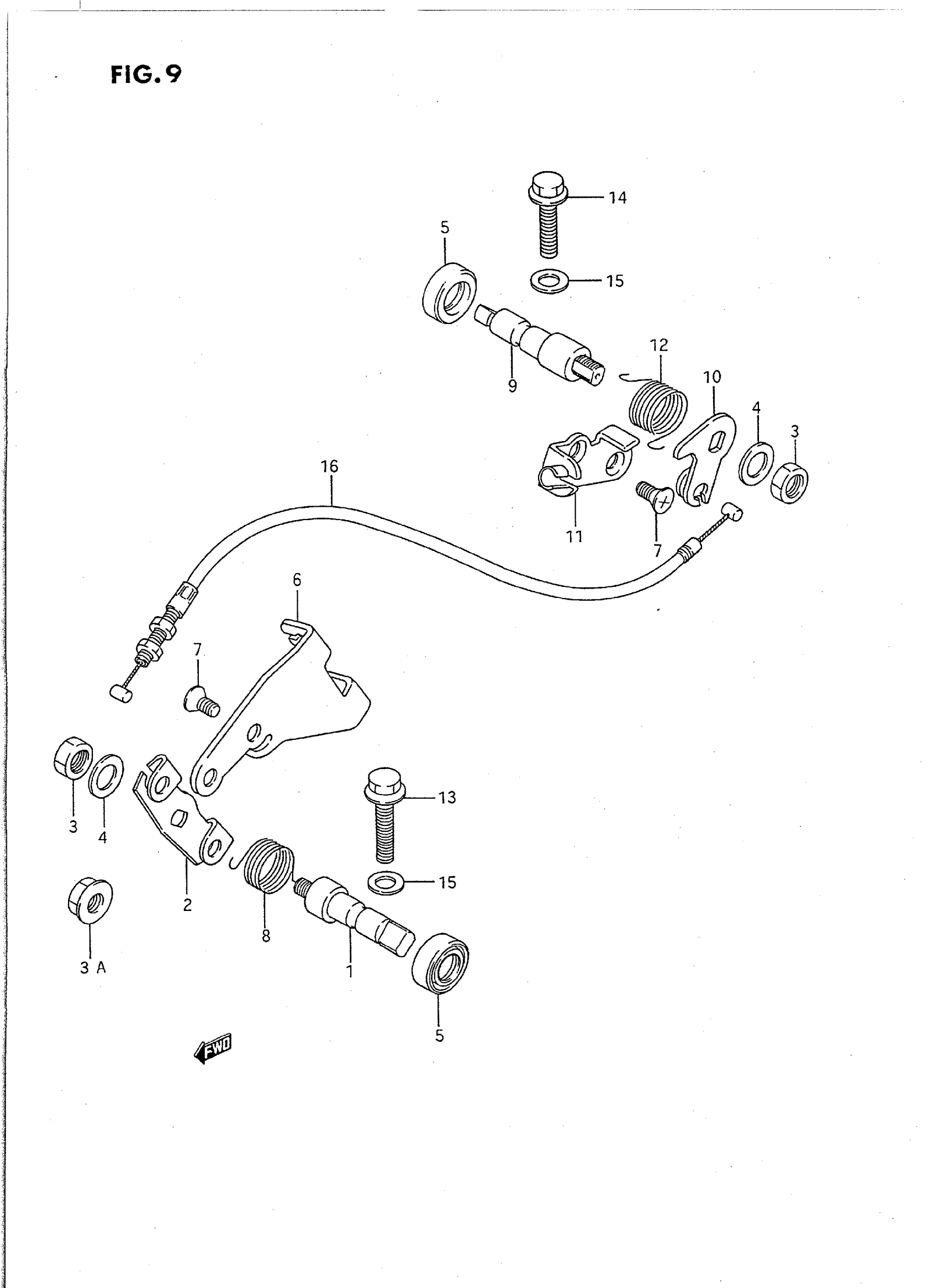

Suzuki VS1400GLPS (1995) DECOMP SHAFT Diagram

#

Description
Price

1

SHAFT, DECOMP FRONT

12939-38B00

Unavailable

2

LEVER, DECOMP FRONT

12942-38B03

Unavailable

3

NUT, ADJUSTER | MODEL H/J/L/M/N/P This part replaces 08310-22085.

09140-08021

$2.63

3

NUT | MODEL R

08310-00087

$2.13

3A

NUT | MODEL S

08316-10087

$2.26

4

WASHER | MODEL H/J/L/M/N/P This part replaces 08322-11084.

08322-0108A

$1.92

4

WASHER | MODEL R

08322-01087

$2.13

5

OIL SEAL

09282-10012

$7.98

6

HOLDER, DECOMP CABLE FRONT

12944-38B02

Unavailable

7

SCREW | MODEL H/J/L/M/N/P/R

09126-05006

Unavailable

7

SCREW | MODEL S

02122-05107

$1.49

8

SPRING This part replaces 09448-17029.

09448-17029-XC0

$6.53

9

SHAFT, DECOMP REAR

12941-38B00

Unavailable

10

LEVER, DECOMP REAR

12952-38B01

Unavailable

11

HOLDER, DECOMP CABLE REAR

12950-38B00

Unavailable

12

SPRING, REAR

09448-17023

Unavailable

13

BOLT

01550-06307

$2.69

14

BOLT

01550-06257

$2.30

15

GASKET

09168-06023

$2.35

16

CABLE, DECOMP, RR | MODEL H This part replaces 58910-38B01.

58910-38B20

$59.07

16

CABLE, DECOMP, RR | MODEL J/L/M/N/P/R/S This part replaces 58910-38B10.

58910-38B20

$59.07
